Black Diamond Orbit - 45 Lumens Lantern Manual

Features and Dimensions

MAX	LUMENS	15 H	4 M
MIN	LUMENS	24 H	2 M

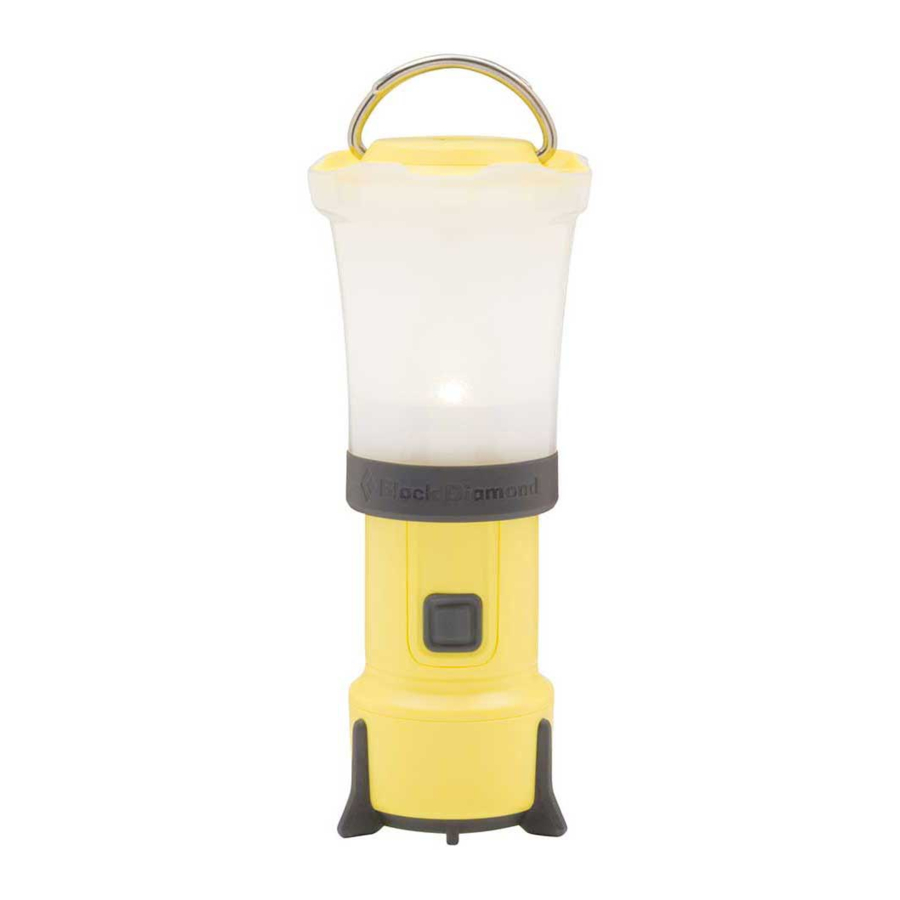

ORBIT LANTERN

Follow all instructions carefully. any modif ications of this product will void the warranty. Misuse of the lantern may cause the user harm.

ON/OFF

BATTERIES

The Orbit functions with either 4 AAA alkaline or lithium batteries or the Black Diamond NRG2 Rechargeable Battery Kit (sold separately).
To make rechargeable, purchase the NRG2 Rechargeable Battery Kit and follow instructions.

When using AAA batteries

• Do not mix old and new batteries.
• Dispose of the used batteries properly.

Battery life will vary depending upon

• Battery source used.
• Brand and freshness of batteries.
• Ambient temperature.
• Brightness setting used.

INSERTING ALKALINE BATTERIES

OPERATION

To turn the Orbit on (and off), depress the center orange switch.

• The Orbit will always turn on at the brightest setting.
• Hold down the switch to dim or brighten.
• The light will flash when the lowest light output setting is reached and begin to brighten.
• The light will flash at the brightest light output and begin to dim.
• To hang the Orbit, use either one hook or both together to form a closed loop.


CLEANING

Ensure that the lantern is clean and dry before and after each use and before storage.

• DO NOT store the lantern wet.
• DO NOT heat.
• Use a damp cloth to clean the lantern.
  DO NOT submerge. Air dry.

CARE

Temperature	Stormproof	DO NOT

TROUBLESHOOTING

If the Orbit does not work:

• Check that the batteries are oriented correctly and touching the contacts.
• Replace the batteries.
• Charge NRG2 Battery system.
• Check the contacts and connections for corrosion and clean if necessary.
• Work the switch several times.

No luck? Contact your local Black Diamond Dealer or the Black Diamond Warranty Department at the phone number provided.

SPARE PARTS

There are some replaceable parts for this lantern. Please contact bdmo@bdel.com for additional information.
The Black Diamond Orbit meets the requirements of the EMC (electromagnetic compatibility) Directive 89/336/EEC.

WARNINGS

• A responsible adult must supervise use by children under the age of 12.
• Always inspect your lantern for proper operation prior to using and, for critical situations, carry a second light and sufficient spare batteries.

Black Diamond Equipment is not responsible for the consequences, whether direct, indirect, or accidental, or for any other type of damage arising or resulting from the use of its products. You are responsible for your actions and activities and for any consequences that may result from them.

LIMITED WARRANTY

We warrant for one year from purchase date and only to the original retail buyer (Buyer) that our products (Products) are free from defects in material and workmanship. For lighting products, our warranty is for three years. If Buyer discovers a covered defect, Buyer should return the Product to the place of purchase. In the event that this is not possible, return the Product to us at the address provided. The Product will be repaired or replaced at our discretion. That is the extent of our liability under this Warranty and, upon expiration of the applicable warranty period, all such liability shall terminate. We reserve the right to require proof of purchase for all warranty claims.

Warranty exclusions:
We do not warranty Products against normal wear and tear (such as ski edge cuts and abrasions, outsole wear, etc.), unauthorized modifications or alterations, improper use, improper maintenance, accident, misuse, negligence, damage, or if the Product is used for a purpose for which it was not designed. This Warranty gives you specific rights, and you may also have other rights which vary from state to state. Except for expressly stated in this Warranty, we shall not be liable for direct, indirect, incidental, or other types of damages arising out of, or resulting from the use of Product. This Warranty is in lieu of all other warranties, express or implied, including, but not limited to, implied warranties of merchantability or fitness for a particular purpose (some states do not allow the exclusion or limitation of incidental or consequential damages or allow limitations on the duration of an implied warranty, so the above exclusions may not apply to you).

North America: Black Diamond Equipment, ltd.
2084 East 3900 South, Salt Lake City, UT 84124
801.278.5533 Email: mountain@bdel.com

Europe: Black Diamond Equipment AG
Christoph Merian Ring 7, 4153 Reinach, Switzerland
+41/61 564 33 33 Email: mountain@blackdiamond.eu
