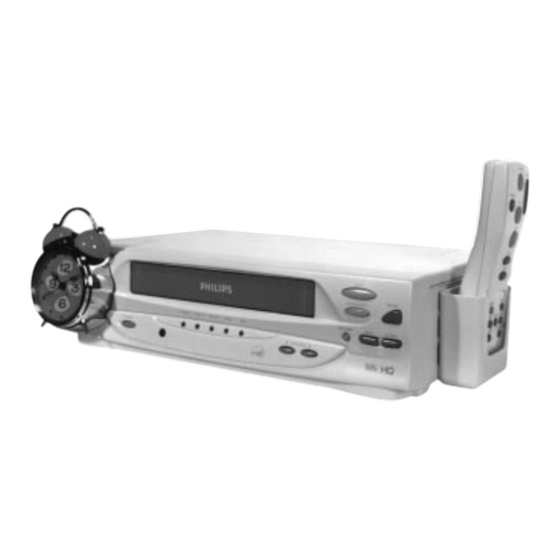

- Page 1 Video Cassette Recorder VRKD11YL VRKD12BL Hookup Pages Important! Return your Warranty Registration Card within 10 days. See why inside.
-
Page 2: Hookups Without A Cable Box/Direct Broadcast System
Hookups Without a Cable Box / Direct Broadcast System 7 The easiest connection – just a TV, VCR, and antenna or cable – is shown below. If you have a Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo TV, please see page 10. -
Page 3: Hookups With A Cable Box/Direct Broadcast System
You may not program channels at the VCR. You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable Box/DBS output channel (channel 03 or 04), and set your Cable Box/DBS to the channel you want to record. -
Page 4: Recording One Channel/Watching Another
Recording One Channel/Watching Another Put the Cable Box/DBS on the same channel as the VCR’s CH3/CH4 switch. (Make sure the TV is on the Cable Box/DBS output channel, 03 or 04.) Then, with the VCR in VCR position (the VCR/TV light... -
Page 5: Hookups With A Stereo Tv
VCR. Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect the other end of the video cable to the VIDEO IN Jack on your TV. Connect an audio cable to the white AUDIO OUT Jack on the back of the VCR. -
Page 6: Front Panel
During tape playback, press to fast forward the tape while the pic- ture stays on the screen. Details are on page 34. Press to select an item in the VCR menu or to change the setting of an item. PAUSE Button While recording, press to temporarily stop the recording. -
Page 7: Back Panel
AUDIO OUT Jack Connect an audio cable going to the audio in jack of a TV, camcorder, another VCR, or an audio system here. Details are on pages 10 and 32. VIDEO OUT Jack Connect a video cable going to the... -
Page 8: Helpful Hints
Make sure the record tab is intact (details are on page five). Make sure the VCR 2 power is on and VCR 2 is in VCR position. (The VCR/TV light will appear. If it does not, press the VCR/TV button once.)
