EUK06
Programmable Contact Access Module
Product Features
Comply with EU-BUS protocol developed by EUCHIPS
Can connect to 6 dry contact signal
Can connect 6 LED lights as key backlight
Easy to edit the function for each port
Supplied via EU-BUS bus, without external power supply
Compact, easy to install into the electrical box
Technical Data
Item
Power supply
Protocol
The number of dry contact signal
The number of external backlight
Dimension
Package size
G.W.
Operational temperature
Product Function
Panel, mechanical key, and the contact can be connected to the EU-BUS system via EUK06 easily, and finish
quadratic programming function, the user can define port function in PC software- EUCHIPS 9 to achieve the needs
of different users.

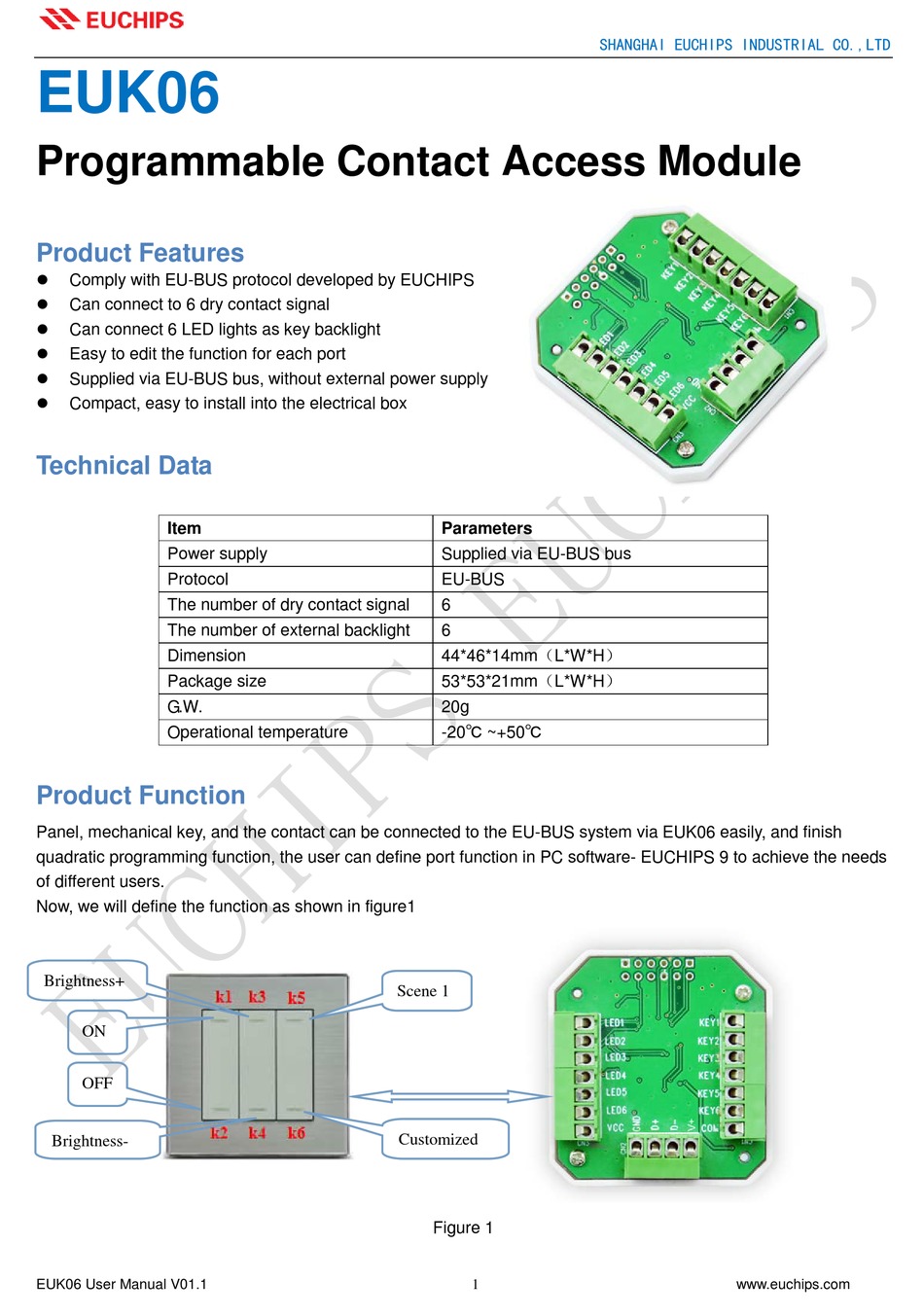

Now, we will define the function as shown in figure1
Brightness+
ON
OFF
Brightness-
EUK06 User Manual V01.1
Parameters
Supplied via EU-BUS bus
EU-BUS
6
6
44*46*14mm（L*W*H）
53*53*21mm（L*W*H）
20g
-20℃ ~+50℃
Scene 1
Customized
Figure 1
1
SHANGHAI EUCHIPS INDUSTRIAL CO.,LTD
www.euchips.com
