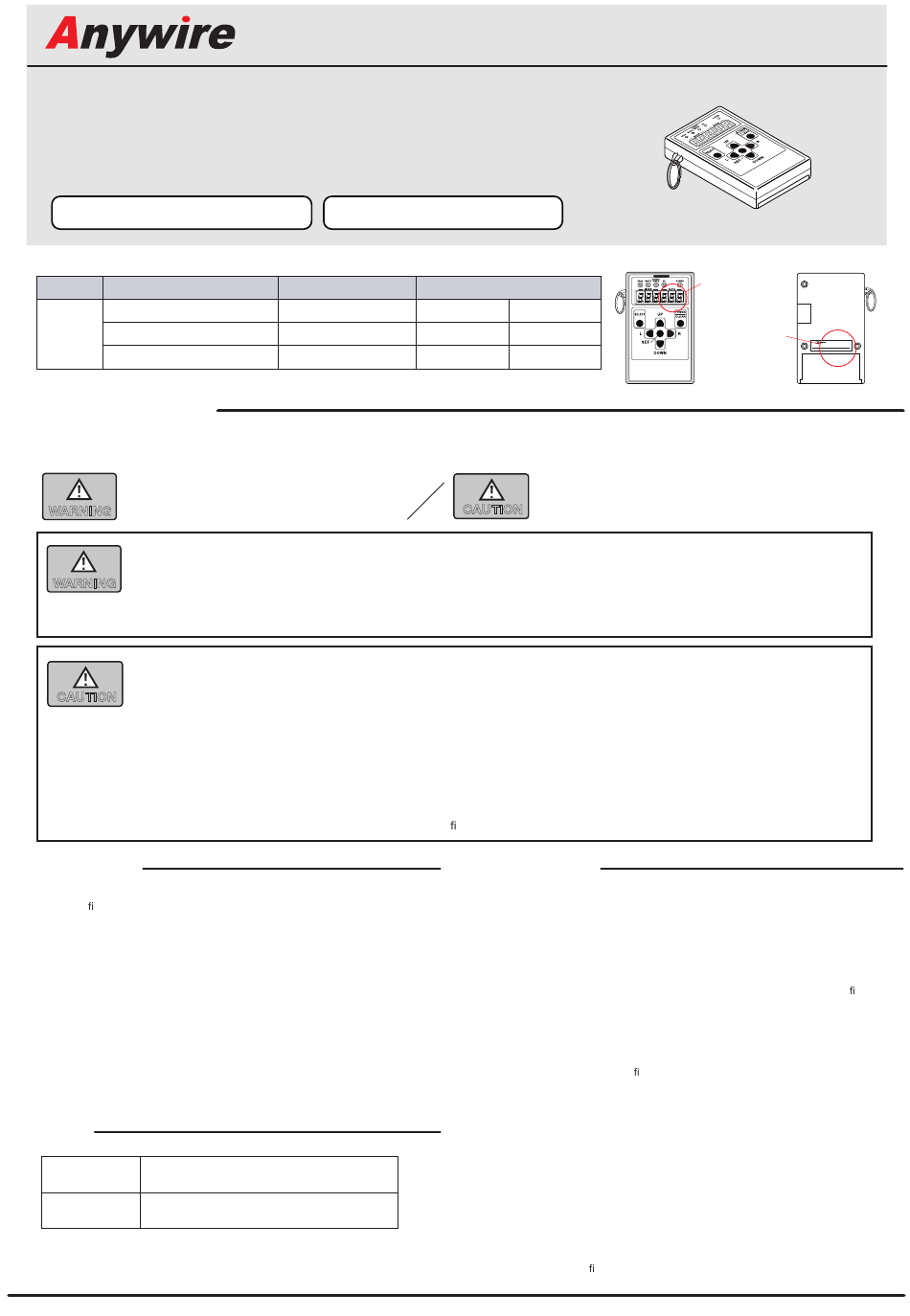

Anywire ARW-03 Product Manual

AnyWire
ARW-03
Infrared non-contact type
The Products Guide describes individual products. Refer to the Guide as necessary.
Category
Adaptable
POKAYOKETERMINAL
Equipment
AnyWire ASLINK TERMINAL
[Notes on Safety]
Precautions that must be observed in order to use this system safely are indicated as shown below.
You must observe these precautions.
A WARNING indicates a potentially hazardous
situation which, if not handled correctly, could
result in death or serious injury.
WARNING
○ System Safety
This system is intended for general industrial applications. It does not have functions for supporting applications requiring higher
levels of safety such as safety-related devices or accident prevention systems. The product must not be used for these purposes.
WARNING
○ Always turn off the power before attempting to mount or replace.
○ For change of setting in the direct mode, values are updated to the changed values when they are written. Please note that direct
changes of addresses and others may result in unexpected operation.
○ System power supply
Use a stable, 24V DC power supply. Use of an unstable power supply may cause problems with the system.
○ Separately route high-voltage and power cables
CAUTION
Although the AnyWire System has a high noise margin, keep the transmission line and I/O cables away from high-voltage and
power cables.
○ Connectors and terminals
* Pay careful attention to the length and installation of cable wiring to ensure that connectors and cables are neither overloaded nor disconnected.
* Make sure to prevent any metal objects from getting inside the connectors or the terminal blocks.
* Short-circuits caused by metal objects or mis-wiring are likely to damage the device.
○ Do not impose any external loads on the units. Doing so may cause a failure.
○ Do not disconnect or reconnect between the transmission line and slave units. A malfunction may occur.
○ Use the AnyWire System within the range of the speci cations and conditions shown below.
[Features]
-This is a unit of the AnyWire system. It is used for setting addresses and oper-
ating speci cations of units with an infrared writing port.
This writer enables addresses and parameters to be set by the non-contact
method.
- Writing and reading can be performed.
- As the body is small-sized and driven by battery, it has no power code and
can be taken anywhere.
- As address values are displayed at a 7-segment display unit and can be used
directly at the decimal scale, this eliminates inconveniences that it is hard to
see the switch in a dark place and the set value must be calculated.
- A remote head (ARW-RH) to make writing in a narrow space or small-sized
unit easier is prepared (separately sold).
- The writer has an automatic shutout function to protect the battery even when
the power is left on. (The condition in the middle of the setting operation
returns to the content before setting.)
[Type]
ARW-03
Infrared non-contact address writer (Ver. 2.10)
Remote head for narrow space and small part
ARW-RH
(sold separately)
Also available is a set of ARW-03 and ARW-RH.
Model: ARW-03-RH
AnyWire System Products Guide
Address Writer
Remote head wearable
Type
Dust-proof, small-sized,
door type
All models
Firmware Version
Ver. 1.00 or lower Ver. 2.10 or higher
○ ○
× ○
○: available, ×: unavailable
A CAUTION indicates a potentially hazardous situation
which, if not handled correctly, may result in personal
injury or property damage.
CAUTION
[Warranty]
■ Warranty period
The warranty on the delivered Product shall continue to be effective for
one (1) year after the delivery thereof to a location as designated by the
original owner.
■ Scope of warranty
Should a defect occur in any part of the Product during the foregoing
warranty period when it is used normally in acordance with the speci ca-
tions described in this User's Manual, the Company shall replace or
repair the defect free of charge, except when it arises as a result of:
[1] Misuse or abuse of the Product by the owner;
[2] Fault caused by other than the delivered Product;
[3] The unauthorized modi cation or repair of the Product by any person
other than the Company's personnel;
[4] Any unusual force of nature, disaster or other cause beyond the Com-
pany's control.
The term "warranty," as used herein, refers to the warranty applicable to
the delivered product alone. The Company shall not be liable for conse-
quential or incidental damages resulting from any malfunction.
■ Repair at cost
After the expiration of the warranty period, the owner shall be respon-
sible for all costs and expenses incurred for the troubleshooting and
repair of the Product. Even during the warranty term, the Company shall
repair any defects arising from causes other than within the scope of the
warranty as speci ed above, at the owner's cost.
-ARW03 1/17-
AnyWire is a registered trademark of Anywire Corporation.
The version is
displayed when
POWER is on.
A "Ver. *.*.*" is
described on
this label.
Front
READER/WRITER
ARW-03
Ver.2. 1 0 LotNo.***
MADE IN JAPAN
Back
