Bestway Flowclear 58700E Owner's Manual

IMPORTANT SAFETY INSTRUCTIONS

WARINING:
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
The light source/battery of this luminaire is not replaceable; when the light source/battery reaches its end of life the whole
luminaire shall be replaced.
The power source should meet limited power source or PS2 requirements according to IEC 62368-1/UL62368-1. Check
with your local authority or retailer for recycling advice.Battery disposal should be in compliance with any local regulations
that address the disposal of hazardous materials.
Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
A
B
x1
DC 5V
6.63"
4.94 "
OWNER'S MANUAL
TM
Flowclear

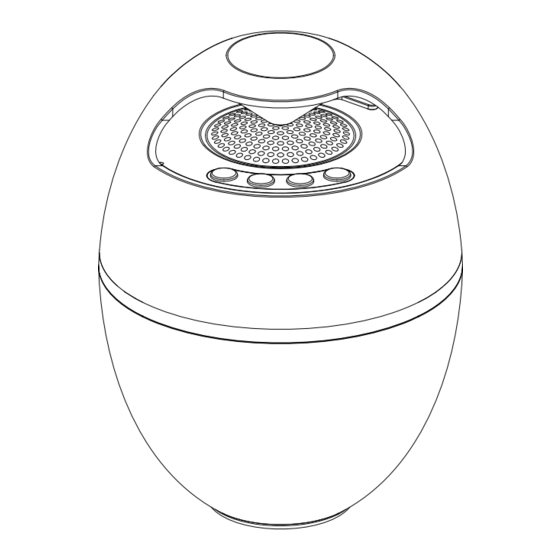

58700E Floating LED Bluetooth Speaker

PRODUCT SPECIFICATIONS

Bluetooth version
V5.1, compatible V4.2 and V2.1+ED
x1
Battery capacity 2500mAH lithium battery 3.7
Working hours MAX: 6 hrs
Frequency 2402MHz-2480MHz
A2DP/AVRCP/HFP/SPP/GAT
Protocol
Communication
10-15 meters (32.8-49.2 ft.)
distance
Mono mixing output
Speaker
fidelity waterproof speaker (Φ57mm)
Dimensions 4.94'' x 4.94'' x 6.63''
LED light Yellow, Green, Red, Blue
LED mode 8 modes
Waterproof IP67
Max.ambient 50℃

CHARGING

Max RF output power: <10dBm
Connect the included USB cord to the USB port
and plug it into a 5V USB outlet and the DC jack to
the CT602. During charging, the LED indicator light
will remain red. When the battery is full, the LED
indicator will turn green.
NOTE:
• Use the included cable and respect the voltage!
• Please charge before use.
• Before inserting the charger,

BUTTON FUNCTION DESCRIPTION

Multifunction Button:
• Hold the button down for 3 seconds to power on,
and hold again for 3 seconds to power off.
• When playing music, press this button to pause
music, and press again to continue playing
4Ω6W, high-
• When a call is incoming,
the phone, and push again to hang up the call.
"Volume - and Previous"
Press the button to play the previous track, and hold
the button down to reduce the volume.
"Volume + and Next" Button:
Press the button to play the next track, and hold
the button down to increase the volume.
dry the charging port.
music.
press the button to answer
• Hold down the light button for 5 seconds to
remove Bluetooth pairing.
Button:

BLUETOOTH PAIRING SETTINGS

Hold down the multifunction button for 3 seconds to
power on. Wait until the blue light flashes, then
the bluetooth mode on your smartphone and select
"CT602" to pair the device. It's now paired. You can
broadcast your music! If not, start again or relaunch
the CT602.
open
