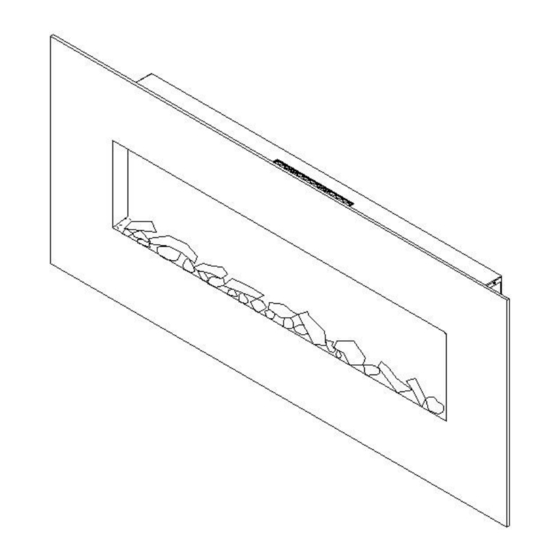

WALL MOUNTED ELECTRIC FIREPLACE HEATER
Model # :
80001 – Onyx
80002 – Ivory
80005 - OnyxXL
80008 – Mirror
80026 – Onyx Stainless
OWNER'S MANUAL
AC 110-120V 60Hz 1500W
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
CAUTION
product away, make sure this manual accompanies this product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Touchstone Onyx 80001
Summary of Contents for Touchstone Onyx 80001
- Page 1 WALL MOUNTED ELECTRIC FIREPLACE HEATER Model # : 80001 – Onyx 80002 – Ivory 80005 - OnyxXL 80008 – Mirror 80026 – Onyx Stainless OWNER’S MANUAL AC 110-120V 60Hz 1500W Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product.
-
Page 2: Table Of Contents
Wall Mounted Electric Fireplace Table of Contents General Information ..............................4 CSA Approval Listing Information ........................... 4 Fireplace Specifications............................4 Dimensional Drawings ............................. 5 Unpacking Your Fireplace ............................7 Parts and Hardware ..............................7 Tools Required ..............................7 What’s in the Box ..............................7 Unpacking and Setup .............................. - Page 3 Wall Mounted Electric Fireplace IMPORTANT SAFETY INFORMATION WARNING! • THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE BURNS • Do not operate fireplace before reading and understanding operating instructions. Failure to operate fireplace according to operating instructions could cause fire or injury. •...
-
Page 4: General Information
Wall Mounted Electric Fireplace General Information CSA Approval Listing Information This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated electric room appliances in the United States and Canada. If you need assistance during installation, please contact our technical support department at 800-215-1990. -
Page 5: Dimensional Drawings
Wall Mounted Electric Fireplace Dimensional Drawings 80001/80002/80008/80026 – Dimensions www.touchstonehomeproducts.com 800.215.1990 Revision: 20201009... - Page 6 Wall Mounted Electric Fireplace 80005 – Dimensions www.touchstonehomeproducts.com 800.215.1990 Revision: 20201009...
-
Page 7: Unpacking Your Fireplace
Wall Mounted Electric Fireplace Unpacking Your Fireplace Parts and Hardware Tools Required • Phillips-head screwdriver • Tape measure • Stud finder • Electric drill • Level • 1/4” wood drill bit What’s in the Box Drywall anchors Wood Screws **anchors not drawn to scale** **screws not drawn to scale** Remote Control Crystal Embers... -
Page 8: Wiring
Wall Mounted Electric Fireplace Wiring Touchstone Wall Mounted Electric Fireplaces come with a 3-prong plug which plugs into any standard 110v outlet. Testing the Fireplace Prior to Installation • Before installing the fireplace, test the fireplace to make sure that it operates properly. -
Page 9: Installation
Wall Mounted Electric Fireplace Installation WARNINGS • Due to high temperatures, keep the fireplace out of high traffic locations. • Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 36” away from the front of the fireplace. •... -
Page 10: Removing The Wall Mount Bracket From Fireplace
Wall Mounted Electric Fireplace Removing The Wall Mount Bracket From Fireplace Tools: - Phillips-head screw driver Instructions: 1. Take the fireplace out of the packaging and place it on a flat, non-abrasive surface. 2. Remove the screws on both sides with a Phillips-head screwdriver, then take off the wall bracket. The bracket must be held tightly while screws are being removed, to avoid them from falling on the fireplace and causing damage or injury. -
Page 11: Removing The Glass Panel
Wall Mounted Electric Fireplace Removing The Glass Panel Prior to installation, it is best to remove the glass panel. Please remove glass panel as per instructions below: Tools Needed: - Phillips Screwdriver Instructions: 1. Locate the 2 screws on the top of the fireplace (A and B) that attach the glass panel to the fireplace. Remove both screws to remove the glass panel from the firebox. -
Page 12: Wall Mounted Installation
Wall Mounted Electric Fireplace Wall Mounted Installation • Due to many different finish materials use on walls, it is highly recommended that you consult your local builder before you install this fireplace on the wall. • Select a location that is not prone to moisture and is located at least 36” away from combustible materials such as curtains, drapes, furniture, bedding, or other combustible materials. - Page 13 Wall Mounted Electric Fireplace Wall Mounted Installation – cont. 5. Using the wall mount bracket as a template, mark the holes on the wall at least 8” apart, with 3 of the holes preferably on 3 studs. When hanging the wall bracket, it is recommended to fasten the mounting bracket to 3 studs. If fastening to 3 studs, no dry anchors would need to be used.
-
Page 14: Heat Disable Switch
8. Once the bracket is secured to the wall, the fireplace may now be hung on the bracket. Heat Disable Switch Touchstone Wall Mounted Electric Fireplaces include a heat disable switch for disabling and enabling the fireplace’s heating element. The heat disable switch is located on the back of the unit under the trap door (shown below). -
Page 15: Hanging Fireplace On Mounting Bracket
Wall Mounted Electric Fireplace Hanging Fireplace On Mounting Bracket 1. With the help of a capable adult, lift the fireplace (A) and align the hooks (E) on the back of the fireplace with the slots in the wall bracket. Carefully set the hooks (E) in the slots. 2. -
Page 16: Installing Logs And Glass Crystals
Installing Logs and Glass Crystals Touchstone Electric Wall Mounted Electric Fireplaces come with both a faux log bed and glass crystals. To achieve the desired look, the user can install either the faux log bed or the glass crystals. Both options cannot be used at the same time. -
Page 17: Glass Crystal Installation Instructions
Wall Mounted Electric Fireplace Installing Logs and Glass Crystals - cont Glass Crystal Installation Instructions 1. Set the shelf onto the ledge in the opening at the front of the fireplace. 2. Arrange the decorative crystals on the shelf in the desired position. www.touchstonehomeproducts.com 800.215.1990 Revision: 20201009... - Page 18 Wall Mounted Electric Fireplace Installing Logs and Glass Crystals - cont Glass Crystal Installation Instructions - cont 3. Once installed, reinstall the glass panel and secure the glass panel with the 2 screws on the top of the fireplace. 4. The fireplace is now ready for use. www.touchstonehomeproducts.com 800.215.1990 Revision: 20201009...
-
Page 19: Operating Fireplace
Wall Mounted Electric Fireplace Operating Fireplace Once the fireplace has been plugged into a grounded outlet, the fireplace is now ready for operation. Ensure that the house circuit breakers for the power supply are turned on. Power Plug the power cable into a 110v 15 amp grounded outlet. Make sure the outlet is in good condition and that the plug is not loose. -
Page 20: Methods Of Operation
Wall Mounted Electric Fireplace Methods of Operation This electric fireplace can be operated by the CONTROL PANEL, located in the upper right vent in the front glass panel, or by the REMOTE CONTROL. The operation and functions of both methods are the same Control Panel and Remote Control Functions BUTTON FUNCTION... -
Page 21: Replacing Remote Control Battery
Wall Mounted Electric Fireplace Replacing Remote Control Battery The following is instructions for replacing the battery in the remote control: 1. Pinch the latch toward the battery compartment. 2. Pull the battery compartment out to remove battery. Temperature Limiting Control This heater is equipped with a Temperature Limiting Control. -
Page 22: Care And Maintenance
Wall Mounted Electric Fireplace Care and Maintenance Cleaning • ALWAYS turn the heater OFF and unplug the power cord from the outlet before cleaning, performing maintenance, or moving the fireplace. Failure to do so could result in electric shock, fire, or personal injury. •... -
Page 23: Warranty
Touchstone Home Products, Inc warrants our electric fireplaces to be free of defects in material and workmanship for one year from date of purchase. Touchstone will repair or replace any fireplace or fireplace part that is deemed defective or becomes defective during normal use within one year after the date of purchase. - Page 24 Wall Mounted Electric Fireplace www.touchstonehomeproducts.com 800.215.1990 Revision: 20201009...
