- Page 1 IP Camera / Surveillance Quick Installation Guide...
- Page 2 MJPEG IP Camera Quick Installation Guide MJCAS-310PTD/MJCAS-210IR/MJCAS-212IR...
-
Page 3: Physical Installation
Thank you for purchasing Our MJPEG IP Camera for IP surveillance applications. Before installation, please be sure to read this quick installation guide and user’s manual carefully to complete machine installation. Requirements MJPEG IP Camera Network Environment 10/100M Ethernet Monitoring System Recommended System Hardware ·... - Page 4 Camera administration The MJPEG IP Camera provides GUI (Web based, Graphical User Interface) for machine management and maintenance. When you installed your IP camera over your network environment, to start MJPEG IP Camera web configuration, you must have the web browsers installed on computer for web management.
- Page 5 TheMJPEG IP Camera must be installed and powered NO. If the MJPEG IP Camera’s default IP Address (192.168.0.20) is already used by another device, the other device must be turned OFF until the MJPEG IP Camera is allocated a new IP Address during configuration. Or you may execute IP Finder to discover MJPEG IP Camera’s IP address.

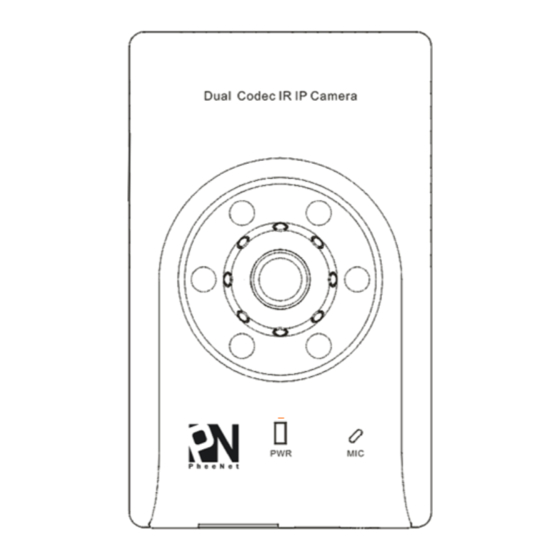

- Page 6 Dual Codec MPEG4 / MJPEG IR IP Camera Quick Installation Guide MDCAS-100 / MDCAS-100W...
- Page 7 Thank you for purchasing DUAL CODEC CMOS IR Network Camera for IP surveillance applications. Before installation, please be sure to read this quick installation guide and user’s manual carefully to complete machine installation. System Requirements DUAL CODEC CMOS IR Network Camera Network Environment LAN Model WLAN Model...
- Page 8 Network Accessing Type LED Microphone 4. Real Panel LED Definition Real Panel of Dual CODEC IR IP Camera LAN Port 2pcs LEDs LED Definition: LANJACK GREEN LED ORANGE LED STATUS (Link / Active) (10M/100M) 10Mbits Remove cable Dark Dark 10Mbits Plug in cable Bright Dark...
- Page 9 5. Place the Camera on the table or fix it onto ceiling or wall Use screws to fix the Network Camera onto the ceiling or wall. You could also put the Network Camera on the table directly. Fixed it by screws Camera administration The Network Camera provides GUI ( Web based, Graphical User Interface ) for machine...
- Page 10 If difficulty is met, please refer to the following steps to establish the connection: Your PC can establish a physical connection to the Network Camera. The PC and the Network Camera must be directly connected (using the cross over cable included in the package.) or on the same LAN segment.
- Page 11 After modifications, you may now connect the camera via web browser. Note: Power Line Frequency If you found the video image is flash, you may need to choose 50 or 60 Hz frequency (depends on country). World wide power line frequency table is inside CD, Appendix H Made in Taiwan All Rights Reserved 2006...
