ASSEMBLY AND OPERATION MANUAL
GARDEN PELLET HEATER ORTE
MODEL: ORTE GARDEN PELLET HEATER TRIANGONAL
SYMBOL: GPH3
Version: 005/22/JK

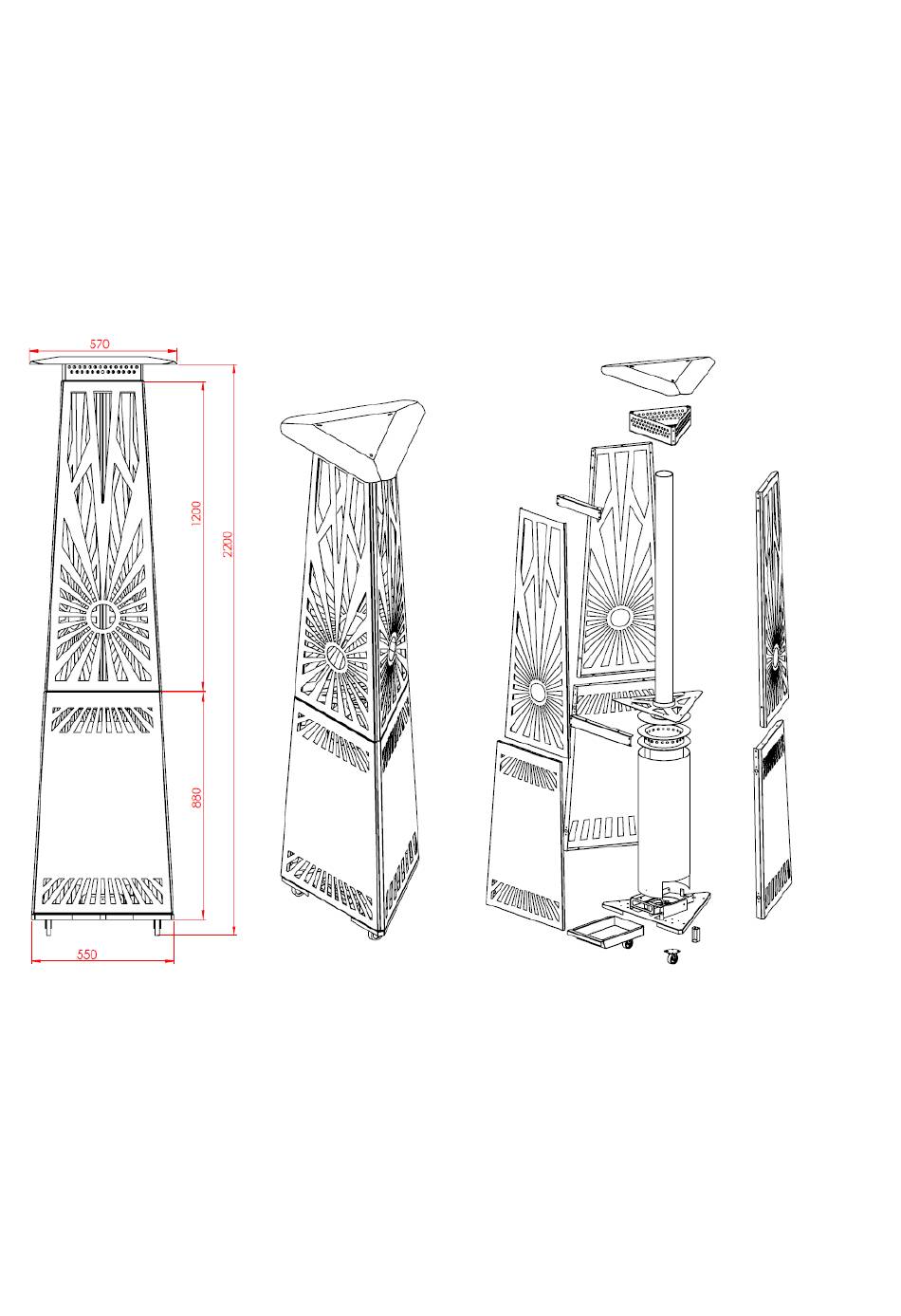

DIMENSIONS AND ASSEMBLY
Stylish and environmentally friendly pellet garden heaters from ORTE perfectly suited for cool evenings, providing
warmth in the garden or on the terrace, as well as during any other outdoor events.
The garden air heater is made of the highest quality materials, and thanks to its modern design the pellet fuelled
garden heater can be placed in even the most sophisticated surroundings. The product is available in a range screen
designs and colours (RAL).
The ORTE GARDEN HEATER will light up, diversify and warm your outdoor stays during cooler days.
www.orte.pl
1
Advertisement
Related Manuals for ORTE GPH3
Summary of Contents for ORTE GPH3
- Page 1 The product is available in a range screen designs and colours (RAL). The ORTE GARDEN HEATER will light up, diversify and warm your outdoor stays during cooler days. www.orte.pl...
- Page 2 DESIGNATION AND QUANTITY OF PARTS name Bottom metal piece left Bottom metal piece right Bottom door symbol 3BDL 3BDP name Top metal piece left Top metal piece right Top door symbol 3BGL 3BGP www.orte.pl...
- Page 3 Hearth Inner hearth Quartz pipe symbol name Hearth shield Heater floor Heater chimney symbol name Heater cap Ash pan Lower Support symbol name Castor Castors Body Seal symbol www.orte.pl...
- Page 4 Magnetic washer 2 Centring ring symbol name Bolt Screw M6 Washer M6 symbol name Nut M6 Self-locking nut Screw M5 Washer M5 symbol NM6S name Hearth holder Magnet Screw M3 symbol name Nut M3 Washer M3 Upper Support symbol www.orte.pl...
-
Page 5: Safety Symbols
Do not remove the ash pan until the pellets have burned out and the air heater has cooled down. Do not wear loose-fitting clothing when lighting up and operating the air heater. While burning pellets, never bend over www.orte.pl... - Page 6 1. Turn the castors using the M8 screw and the self-locking nut (SM8 NK) as shown in Figure 1.1. Fasten the castors (K) and the leg (N) with screws M5 (ŚM5) - 4 for each castor, and 1 for the leg mounted to the floor (P) like on picture 1.2. Fig. 1.1 www.orte.pl...
- Page 7 Replace the inner hearth (PW) to the hearth shield (OP). Fig. 2 ATTENTION!!!: In the PLUS models the capacity of the hearth is adjustable (fig. 2.1- 2.3). The adjustment is made with a handle before the inner hearth is put into the hearth shield (OP). www.orte.pl...
- Page 8 Use the M6 screw and the self-locking nut (NM6S) to attach the locking hook (ZB) to the floor heater (PO) as shown in Figure 2.7. Fig. 2.7 3. Fasten the magnetic holders with magnetic washers (PM) as in fig. 3 using 4 screws M4 (ŚM4). Fig. 3 www.orte.pl...
- Page 9 5. Fasten the connected bottom metal pieces to the floor (P) with 4 screws M6 as in fig. 5.1. Fasten the support (W) to the side metal pieces with 4 screws M5 as in fig. 5.2. Attach a safety chain locking the boiler to the hooks as shown in Fig. 5.3 Fig. 5.3 www.orte.pl...
- Page 10 They will be used for hanging the top door (DG) – see fig. 10. Fig. 6 7. Fasten the centring ring (PC) to the chimney (K) with 3 bolts. Mount the heater cap (CO) with 3 screws M5 as in fig. 7. Fig. 7 www.orte.pl...
- Page 11 Fig. 8 9. Mount the quartz-glass pipe (RK). ATTENTION!!! Caution!!! The pipe is made of glass and may be broken. At the top and the bottom of the pipe mount the seal (U) as in fig. 9. Fig. 9 www.orte.pl...
- Page 12 WARNING: Fill the heater only when there is no fire in the hearth/burner and all surfaces are cold. Use protective gloves. DANGER: NEVER cover up the garden heater if the hearth is not extinguished. It can be covered eg. to protect against external influences ONLY 24 hours after the hearth expires and after emptying the hearth. www.orte.pl...
- Page 13 Fig. 11.1. Damper open. Fig. 11.2. Damper half-open. ATTENTION!!!: Remember that the pipe may be blackened, however the right fire should clean most of it. ATTENTION!!!: The heater shields get very hot. High temperature may discolour the housing. www.orte.pl...
- Page 14 Storage: If possible, keep the garden heater in a cool and dry room. If kept outdoor please cover with a waterproof cover. In order to avoid moisture accumulation ensure air circulation. TYPE Garden Pellet Heater Garden Pellet Heater PRODUCENT Orte Polska Sp. z o.o. Orte Polska Sp. z o.o. BRAND ORTE ORTE MODEL...
- Page 15 Product suitable for burning pellets. Do not use any other fuel. Do not burn trash. In an event of any problems or troubleshooting contact the distributor / sales company. Depending on local regulations, the product after use may be subject to recycling or energy recovery. Product instruction available on www.orte.pl Made in Poland. www.orte.pl...
