ASSEMBLY AND OPERATION MANUAL
GARDEN PELLET HEATER ORTE
MODEL: ORTE GARDEN PELLET HEATER HEXAGONAL /HEXAGONAL PLUS
SYMBOL: GPH6 / GPH6+
Version: 003/17/JK

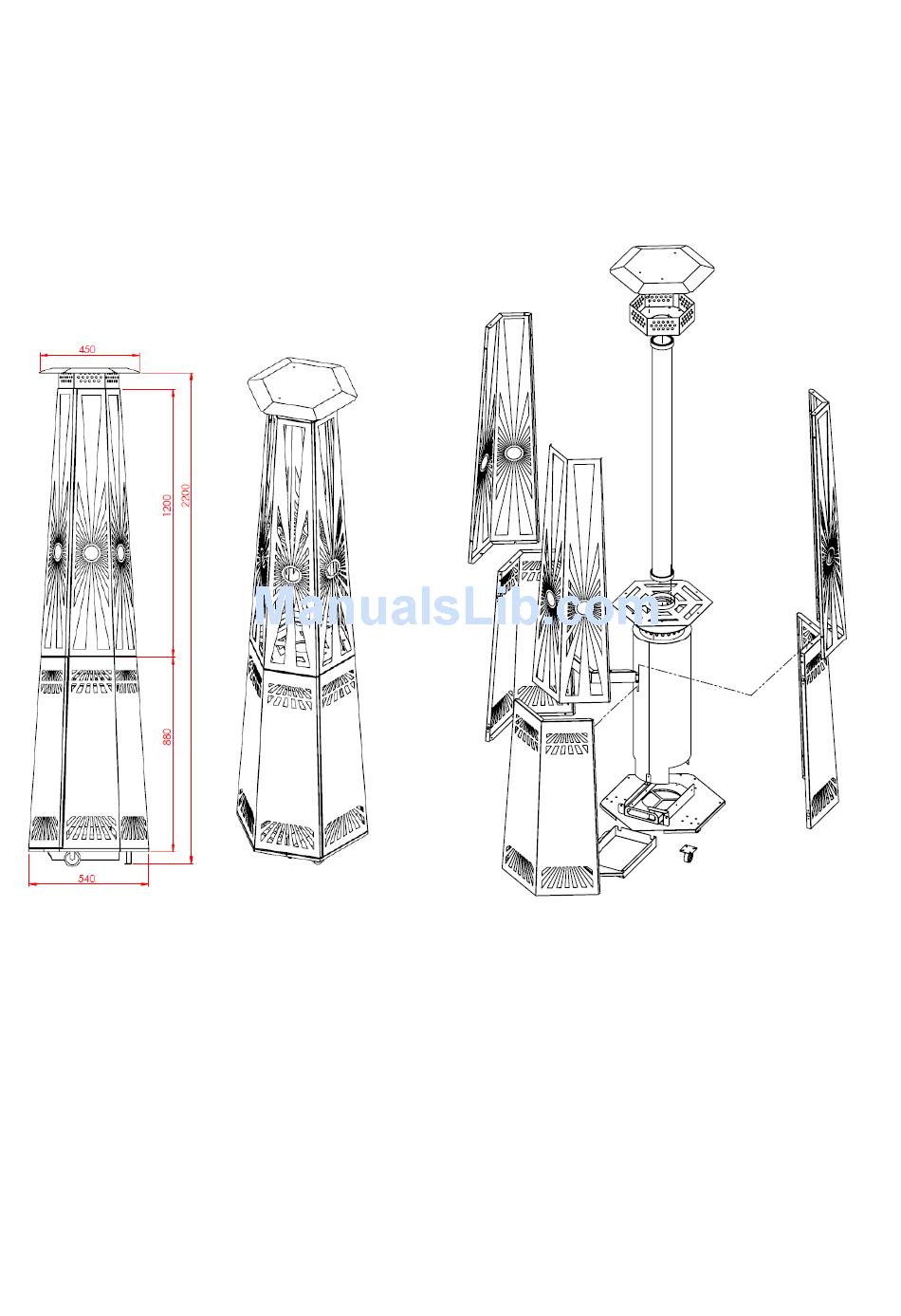

DIMENSIONS AND ASSEMBLY
Stylish and environmentally friendly pellet garden heaters from ORTE perfectly suited for cool evenings, providing
warmth in the garden or on the terrace, as well as during any other outdoor events.
The garden air heater is made of the highest quality materials, and thanks to its modern design the pellet fuelled
garden heater can be placed in even the most sophisticated surroundings. The product is available in a range screen
designs and colours (RAL).
The ORTE GARDEN HEATER will light up, diversify and warm your outdoor stays during cooler days.
www.orte.pl
1
Advertisement
Related Manuals for ORTE GPH6
Summary of Contents for ORTE GPH6
- Page 1 The product is available in a range screen designs and colours (RAL). The ORTE GARDEN HEATER will light up, diversify and warm your outdoor stays during cooler days. www.orte.pl...
- Page 2 DESIGNATION AND QUANTITY OF PARTS name Bottom metal piece left Bottom metal piece right Bottom door symbol 6BDL 6BDP name Top metal piece left Top metal piece right Top door symbol 6BGL 6BGP www.orte.pl...
- Page 3 Hearth Inner hearth Quartz pipe symbol name Hearth shield Heater floor Heater chimney symbol name Heater cap Ash pan Support symbol name Castor Seal symbol www.orte.pl...
- Page 4 Magnetic washer 1 Magnetic washer 2 Centring ring symbol name Bolt Screw M6 Washer M6 symbol name Nut M6 Screw M5 Washer M5 symbol name Hearth holder Magnet Screw M3 symbol name Nut M3 Washer M3 symbol www.orte.pl...
- Page 5 Never walk onto ash or glowing pellets until they are completely extinguished. Prepare the air heater for storage when ash and pellets are fully extinguished. DANGER Failure to observe the warnings, cautions and recommendations contained in this manual and helping to avoid www.orte.pl...
- Page 6 2. Take the inner hearth (PW) off the hearth shield (OP) and prepare the heater holders (UP). Mount the hearth (P) on the heater floor (PO) with the bolts (W) screwed into the hearth shield (UP). Put the inner hearth (PW) back inside the hearth shield (OP). Fig. 2 www.orte.pl...
- Page 7 (OP). Fig. 2.1 Fig. 2.2 - 10 kg Fig. 2.3 - 7,5 kg 3. Fasten the magnetic holders with magnetic washers (PM) as in fig. 3 using 4 screws M4 (ŚM4). Fig. 3 www.orte.pl...
- Page 8 6. Fasten the connected bottom metal pieces to the floor (P) with 4 screws M6 as in fig. 5.1. 7. Fasten the support (W) to the side metal pieces with 4 screws M5 as in fig. 5.2. Fig. 5 www.orte.pl...
- Page 9 They will be used for hanging the top door (DG) – see fig. 10. Fig. 6 10. Fasten the centring ring (PC) to the chimney (K) with 3 bolts. Mount the heater cap (CO) with 3 screws M5 as in fig. 7. Fig. 7 www.orte.pl...
- Page 10 Fig. 8 12. Mount the quartz-glass pipe (RK). ATTENTION!!! Caution!!! The pipe is made of glass and may be broken. At the top and the bottom of the pipe mount the seal (U) as in fig. 9. Fig. 9 www.orte.pl...
- Page 11 WARNING: Fill the heater only when there is no fire in the hearth/burner and all surfaces are cold. Use protective gloves. DANGER: NEVER cover up the garden heater if the hearth is not extinguished. It can be covered eg. to protect against external influences ONLY 24 hours after the hearth expires and after emptying the hearth. www.orte.pl...
- Page 12 Fig. 11.1. Damper open. Fig. 11.2. Damper half-open. ATTENTION!!!: Remember that the pipe may be blackened, however the right fire should clean most of it. ATTENTION!!!: The heater shields get very hot. High temperature may discolour the housing. www.orte.pl...
- Page 13 In order to avoid moisture accumulation ensure air circulation. TYPE Garden Pellet Heater Garden Pellet Heater Garden Pellet Heater Garden Pellet Heater PRODUCENT Orte Polska Sp. z o.o. Orte Polska Sp. z o.o. Orte Polska Sp. z o.o. Orte Polska Sp. z o.o. BRAND ORTE ORTE...
- Page 14 Product suitable for burning pellets. Do not use any other fuel. Do not burn trash. In an event of any problems or troubleshooting contact the distributor / sales company. Depending on local regulations, the product after use may be subject to recycling or energy recovery. Product instruction available on www.orte.pl Made in Poland. www.orte.pl...
