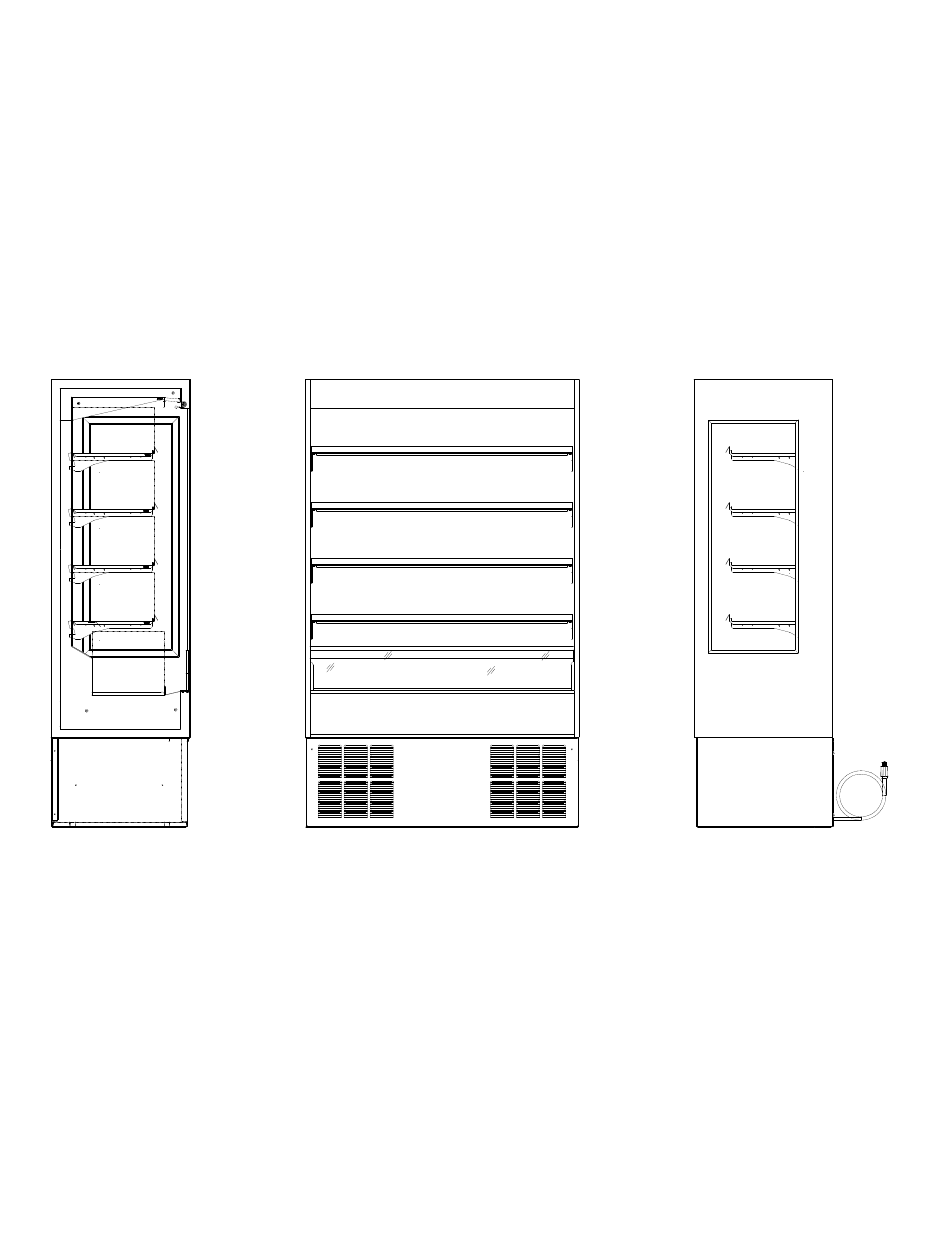

FEDERAL INDUSTRIES RSSL378 Installation & Operation Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E3745
REV L 05/24/23
RSSL378, RSSL478, RSSL578, RSSL678
RSSL360, RSSL460, RSSL560, RSSL660
NSSL378, NSSL478, NSSL578, NSSL678
FEDERAL INDUSTRIES
Toll Free 1(800) 356-4206
Self-Contained & Remote Models
INSTALLATION & OPERATION
INSTRUCTIONS
KEEP THIS MANUAL FOR FUTURE REFERENCE
Engineering and technical data are subject to change without notice.
Non-Refrigerated
215 FEDERAL AVE
WI Phone (608) 424-3331
Belleville, WI 53508
Fax: (608) 424-3234

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSSL378 and is the answer not in the manual?

Questions and answers

Related Manuals for FEDERAL INDUSTRIES RSSL378

Summary of Contents for FEDERAL INDUSTRIES RSSL378

  • Page 1 E3745 REV L 05/24/23 RSSL378, RSSL478, RSSL578, RSSL678 RSSL360, RSSL460, RSSL560, RSSL660 Self-Contained & Remote Models NSSL378, NSSL478, NSSL578, NSSL678 Non-Refrigerated INSTALLATION & OPERATION INSTRUCTIONS KEEP THIS MANUAL FOR FUTURE REFERENCE Engineering and technical data are subject to change without notice.

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ......................4 WARNING LABELS & SAFETY INSTRUCTIONS ............5 PRE-INSTALLATION PROCEDURES ................6 Inspection For Shipping Damage ..............6 INSTALLATION INSTRUCTIONS ...................6 Locating The Display Case ..................6 Grill Removal ......................6 Removing Case From Shipping Skid ................7 Removing Packaging Material ..................7 Leveling The Case ......................
  • Page 3 Special Service Situations ..................28 SALE & DISPOSAL ...................... 28 Owner Responsibility ....................28 REFRIGERATION & ELECTRICAL DATA ................29 RSSL378/360 ......................29 RSSL478/460 ....................30 & 31 RSSL578 ......................32 & 33 RSSL678 ......................34 & 35 NSSL378, NSSL478, NSSL578, NSSL678 ..............36 REPLACEMENT PARTS ....................

  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing a Federal Industries Merchandiser. This manual contains important instructions for installing and servicing the RSSM, Refrigerated Self-Service Merchandisers. A repair parts list is also included in the manual. Read all of these documents carefully before installing or servicing your case.

  • Page 5: Warning Labels & Safety Instructions

    WARNING LABELS AND SAFETY INSTRUCTIONS This is the safety-alert symbol. When you see this symbol on your case or in the manual, be alert to the potential for personal injury or damage to your equipment. Be sure you understand all safety messages and always follow recommended precautions and safe operating procedures.

  • Page 6: Pre-Installation Procedures

    PRE-INSTALLATION PROCEDURES Inspection For Shipping Damage You are responsible for filing all freight claims with the delivering truck line. Inspect all cartons and crates for damage upon arrival. If there is damage to shipping crates, cartons, or if a shortage is found, note this on (all copies) of the Bill Of Lading prior to signing.

  • Page 7: Removing Case From Shipping Skid

    Removing Case From Shipping Skid CAUTION: If a Johnson bar or pry bar is used to move the case, make certain that the case is lifted under the welded steel frame, and not by the end panels of the case. Damage to the ends will result from lifting under the end panels.

  • Page 8: Lights

    Lights Standard Top Light The case comes with one standard top light which is internally wired to the power source. The light switch is located on the left top ceiling behind the air discharge honey comb. Optional Shelf Lights If optional shelf lights are furnished, make certain that the shelf light cords are completely inserted into the sockets in the back panel and end of led lights or lights will not work...

  • Page 9: Electrical Connection & Grounding Instructions

    ELECTRICAL CONNECTION AND GROUNDING INSTRUCTIONS Electrical Supply Wiring DANGER: Improper or faulty hookup of electrical components in the display case can result in severe injury or death. THIS CASE MUST BE GROUNDED Optional Permanent Connection -Only a licensed electrician must perform all case electrical connections. -All electrical wiring hookups must be done in accordance with all applicable local, regional, or national electrical standards.

  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS Initial Start-Up -After completing the items in the installation section of this manual. The case is ready to be put into service. On self-contained models, the service valves on the refrigeration system are back-seated when the unit leaves the factory. -RSSL cases are designed to operate at 40º...

  • Page 11: Electronic Temperature Control

    Electronic Temperature Control ALARM INDICATOR COMPRESSOR RUN POWER TO CONTROL ON/OFF INDICATOR AND SET POINT UP ADJUST SET POINT ADJUST MODE DEFROST MODE INDICATOR MANUAL DEFROST AND DIGITAL DISPLAY SET POINT DOWN ADJUST Button Overview Press and hold this button for three seconds to turn system on (if off) or off (if on). Also used to adjust set point when in set point adjust mode Press to enter set point adjust mode, confirm set point changes, and mute alarms.

  • Page 12: Adjusting Set Point

    Adjusting the set point The set point is what determines how cold the display case will hold food and beverage. To adjust the set point press and hold the button approx. three seconds until the display begins to flash a number.

  • Page 13: Error Codes

    Error codes It is possible for error codes to be displayed on the control screen. In the event of a malfunction an alarm will sound and the alarm indicator will be displayed on the display. An error code or codes will flash intermittently on the display.

  • Page 14: Optional Electronic Temperature Control

    Alternate Electronic Temperature Control Power on/off: Press and hold to turn system on or off. Set: Press and hold to enter the set point adjustment menu. Defrost: Press and hold to initiate a manual defrost. Up: Change set points when in set point adjustment menu. When not in set point menu, shows maximum temperature of air discharge probe.

  • Page 15: Adjusting Set Point

    Adjusting the set point The set point is what determines how cold the display case will hold food and beverage. To adjust the set point press the “ ” button. Then press “ ” button to increase the set point number (colder) press the “...

  • Page 16: Temp Probe Common Resistance Chart

    TEMPERATURE PROBE COMMON RESISTANCE CHART Maximum Normal Minimum Probe Temp Resistance [Ω] Resistance [Ω] Resistance [Ω] 32°F(0°C) 27.83 27.28 26.74 77°F(25°C) 10.1 212°F(100°C) 0.97 0.94 Refrigerated Self-Serve Merchandiser (High Profile) Page 16...

  • Page 17: Electronic Control Functionality

    ELECTRONIC CONTROL FUNCTIONALITY Electronic Control This unit is equipped with an electronic temperature control. The control parameters are set at the factory and cannot be manually changed in the field. Control parameter changes can only be made by downloading a new set of parameters using a program chip supplied by Federal Industries.

  • Page 18: Defrost Cycle

    Defrost Cycle The electronic control is programmed to initiate defrost by two different methods. There are (3) programmed defrost cycles in the control which will initiate a defrost cycle every 8 hours. The unit does not have a time clock so the defrost cycles cannot be set for any specific time of day. The electronic controller uses time to initiate the defrost cycle, and temperature to terminate the defrost cycle.

  • Page 19: Control Display

    Control Display The control display is located in the unit base. It is programmed to display the current set point associated with the control sensor located inside the air duct at the top of the case. Minimum Run Timer Feature The unit controller is programmed to have the condensing unit run a minimum of 5 minutes, regardless of the control temp being satisfied.

  • Page 20: Remote Refrigeration

    Remote Operation Electronic Expansion Valve (EEV) After 1/20 A traditional TXV uses springs and a temperature bulb to open and close a valve port that controls the flow of refrigerant entering the evaporator coil. An electronic expansion valve (EEV) controls the refrigerant flow much more precisely, increasing the performance and efficiency of the refrigeration system.

  • Page 21: Remote Refrigeration Operation

    4. Suction line must be insulated the entire length with Armaflex (or equivalent). Do not run liquid line inside insulation with suction line. 5. If remote control is not supplied by Federal Industries, the remote high/low-pressure control must be mounted, wired and pressures set by the installer.

  • Page 22: Cleaning Instructions

    CLEANING INSTRUCTIONS Cleaning Condenser Coil NOTICE: Condenser coil or optional air filter must be cleaned a minimum of twice per month to insure proper refrigeration performance and prevent compressor failure. In some environments, it may be necessary to clean more frequently. FAILURE TO CLEAN CONDENSER COIL WILL VOID COMPRESSOR WARRANTY.

  • Page 23: Cleaning The Acrylic Air Deflector

    Acrylic Air Deflector Cleaning NOTICE: Clear acrylic air deflector requires special washing procedures to prevent hazing and yellowing of material. NEVER USE paper towels (wet or dry) for cleaning or drying and never use a dry towel. NEVER USE glass cleaner of any kind. Lightly dust (not wipe) surface with a damp Micro Fiber towel or chamois.

  • Page 24: Weekly Cleaning

    Weekly Cleaning NOTICE: Avoid splashing or soaking any electrical components with water to prevent electrical damage to the case. NOTICE: Shut off lights and power switches and remove all products from case. Allow sufficient time for the unit to reach room temperature before proceeding with cleaning.

  • Page 25: Shelves

    Shelves The RSSL has 14” solid metal shelves as standard. These shelves are installed at the factory. The shelves are adjustable in 1-5/8” increments. To adjust the shelves, first remove the shelf from the shelf brackets. Remove the shelf bracket from the shelf standard and reposition desired.

  • Page 26: Service Information

    Phone: (800) 356-4206 and choose the Warranty Parts Option Email: Parts@Federalind.com Federal Industries has partnered with Parts Town for ALL Non-Warranty Part Identification, Pricing, Lead Times, Orders & Freight Quotes. Please contact Parts Town directly if you need parts: Website: PartsTown.com...

  • Page 27: Pre-Service Checklist

    Pre-Service Checklist You may avoid the cost and inconvenience of an unnecessary service call by first reviewing this checklist of frequently encountered situations that can cause unsatisfactory case performance. CAUTION: Before servicing case turn off power at the main breaker of fuse box. Case Does Not Operate -Check for disconnected power supply.

  • Page 28: Special Service Situations

    SALE & DISPOSAL Owner Responsibility If you sell or give away your Federal Industries case, you must make sure that all safety labels and the Installation-Service Manual are included with it. If you need replacement labels or manuals, Federal Industries will provide them free of charge. Contact the Customer Service Department at Federal Industries at (800) 356-4206.

  • Page 29: Refrigeration & Electrical Data

    REFRIGERATION AND ELECTRICAL DATA Model RSSL378SC RSSL378R RSSL378SC ELECTRICAL RSSL360SC RSSL360R RSSL360SC Power Supply, Volts 120Volts 120Volts 208-240Volts Frequency 60 Hertz 60 Hertz 60 Hertz Phase 1 Phase 1 Phase 1 Phase Number of Wires 2 + ground 2 + ground 2 + ground AMPS VOLTS AMPS VOLTS...

  • Page 30: Rssl478/460

    REFRIGERATION AND ELECTRICAL DATA After 01/01/2020 Model RSSL478SC RSSL478SC RSSL478R RSSL478R ELECTRICAL RSSL460SC RSSL460SC RSSL460R RSSL460R Power Supply, Volts 120 Volts 208-240 Volts 120Volts 208-240 Volts Frequency 60 Hertz 60 Hertz 60 Hertz 60 Hertz Phase 1 Phase 1 Phase 1 Phase 1 Phase Number of Wires...
  • Page 31 REFRIGERATION AND ELECTRICAL DATA Before 01/01/2020 Model RSSL478SC RSSL478-R RSSL478SC ELECTRICAL Power Supply, Volts 120Volts 120 Volts 208-240 Volts Frequency 60 Hertz 60 Hertz 60 Hertz Phase 1 Phase 1 Phase 1 Phase Number of Wires 2 + ground 2 + ground 2 + ground AMPS VOLTS...

  • Page 32: Rssl578

    REFRIGERATION AND ELECTRICAL DATA After 01/01/2020 Model RSSL578SC RSSL578R ELECTRICAL RSSL560SC RSSL560R Power Supply, Volts 208-240 Volts 208-240 Volts Frequency 60 Hertz 60 Hertz Phase 1 Phase 1 Phase Number of Wires 2 + ground 2 + ground AMPS VOLTS AMPS VOLTS Compressor...
  • Page 33 REFRIGERATION AND ELECTRICAL DATA Before 01/01/2020 Model RSSL578SC RSSL578R ELECTRICAL Power Supply, Volts 208-240 Volts 120 Volts Frequency 60 Hertz 60 Hertz Phase 1 Phase 1 Phase Number of Wires 2 + ground 2 + ground AMPS VOLTS AMPS VOLTS Compressor 208-240 ----...

  • Page 34: Rssl678

    REFRIGERATION AND ELECTRICAL DATA After 01/01/2020 Model RSSL678SC RSSL678R ELECTRICAL RSSL660SC RSSL660R Power Supply, Volts 208-240 Volts 208-240 Volts Frequency 60 Hertz 60 Hertz Phase 1 Phase 1 Phase Number of Wires 2 + ground 2 + ground AMPS VOLTS AMPS VOLTS Compressor...
  • Page 35 REFRIGERATION AND ELECTRICAL DATA Before 01/01/2020 Model RSSL678SC RSSL678R Power Supply, Volts 208-240 Volts 120 Volts Frequency 60 Hertz 60 Hertz Phase 1 Phase 1 Phase Number of Wires 2 + ground 2 + ground AMPS VOLTS AMPS VOLTS Compressor 208-240 ---- ----...

  • Page 36: Nssl378, Nssl478, Nssl578, Nssl678

    ELECTRICAL DATA NSSL378, NSSL478, NSSL578, NSSL678 Model NSSL ALL NSSL ALL ELECTRICAL Power Supply, Volts 120Volts 208-240Volts Frequency 60 Hertz 60 Hertz Phase 1 Phase 1 Phase Number of Wires 2 + ground 2 + ground AMPS VOLTS AMPS VOLTS Lights 208-240 (Includes Optional Shelf Lights)
  • Page 37 Part Description SSL378SC RSSL378R RSSL378SC NSSL378 RSSL360SC RSSL360R RSSL360SC Refrigeration System Part # 120V Part #120V 208-240V Condensing Unit (Tecumseh RSSL378 Only) 30-20461 ------------- 30-20512 Condensing Unit (Embraco RSSL360/378) 30-21316 ------------- ------------ Compressor (Tecumseh Replacement RSSL378SC) 30-20679 ------------- 30-18052 Evaporator Coil...
  • Page 38 41-11066 Heater Wire Assembly 43-14892 43-14892 43-19467 Condensate Pan SA5406-1 SA5406-1 SA5406-2 Condensate Pump 47-15686 47-15686 47-15687 Cord & Plug RSSL378 43-30818 ----------- 43-19090 Cord & Plug NSSL378 43-11302 ----------- ----------- Miscellaneous Components Price Tag Molding W11329-21 W11329-21 W11329-21 Clip Led Light...
  • Page 39 REPLACEMENT PARTS MODEL RSSL478, RSSL460, NSSL478 After 01/01/2020 Part Description NSSL478 RSSL478SC RSSL478R RSSL478R RSSL478SC RSSL460SC RSSL460R RSSL460R RSSL460SC Refrigeration System 120V 120V 120V 208-240V 208-240V Condensing Unit (Self-Contained RSSL478 Only) ------------- ------------- ------------- ------------- 30-17888 Condensing Unit (Self-Contained RSSL460 Only) ------------- 30-21316 ------------- -------------...
  • Page 40 REPLACEMENT PARTS MODEL RSSL478, NSSL478 Before 01/01/2020 Part Description RSSL478SC RSSL478R RSSL478SC NSSL478 Refrigeration System 120V 120V 208-240V Condensing Unit (Self-Contained Only) 30-20462 ------------- 30-17888 Compressor (Replacement) 30-18051 ------------- 30-18052 Evaporator Coil 33-11541 33-11541 33-11541 Expansion Valve (Before 01/01/18) 32-19419 32-19419 32-19419 Expansion Valve (After 01/01/18)
  • Page 41 REPLACEMENT PARTS MODEL RSSL578, RSSL560, NSSL578 After 01/01/2020 Part Description NSSL578 RSSL578SC RSSL578R RSSL560SC RSSL560R Refrigeration System 120V 208-240V 208-240V Condensing Unit (Self-Contained Only, Before 11/24/2021) ------------- 30-21493 ------------- Compressor (Replacement, Before 11/24/2021) ------------- 30-18054 ------------- Condensing Unit (Self-Contained Only, After 11/24/2021) ------------- 30-21392 -------------...
  • Page 42 REPLACEMENT PARTS MODEL RSSL578, NSSL578 Before 01/01/2020 Part Description RSSL578SC RSSL578R Refrigeration System 208-240V PART# 120V Condensing Unit (Self-Contained Only) 30-17889 ------------- Compressor (Replacement) 30-18054 ------------- Evaporator Coil 33-18024 33-18024 Expansion Valve 32-19416 32-20876 Evaporator Fan Motor 41-15925 41-11628 Evaporator Fan Blade 72-32507 72-32507 Filter Drier...
  • Page 43 REPLACEMENT PARTS MODEL RSSL678, RSSL660, NSSL678 After 01/01/2020 Part Description NSSL678 RSSL678SC RSSL678R RSSL660SC RSSL660R Refrigeration System 120V 208-240V 208-240V Condensing Unit (Self-Contained Only, Before 11/24/2021) ------------- 30-21493 ------------- Compressor (Replacement, Before 11/24/2021) ------------- 30-18054 ------------- Condensing Unit (Self-Contained Only, After 11/24/2021) ------------- 30-21392 -------------...

  • Page 44: Replacement Parts

    REPLACEMENT PARTS MODEL RSSL678, NSSL678 Before 01/01/2020 Part Description RSSL678SC RSSL678R Refrigeration System 208-240V PART# 120V Condensing Unit (Self-Contained Only) 30-17889 ------------- Compressor (Replacement) 30-18054 ------------- Evaporator Coil 33-11542 33-11542 Expansion Valve 32-19416 32-20876 Evaporator Fan Motor 41-15925 41-11628 Evaporator Fan Blade 72-13316 72-13316 Filter Drier...

  • Page 45: Rssl Display Area & Volume

    RSSL/NSSL DISPLAY AREA AND VOLUME RSSL378/360 RSSL478/460 RSSL578/560 RSSL678/660 CUBIC FT. PER SHELF CUBIC FT. DISPLAY DECK 11.5/7.1 15.2/9.4 19.4/12 23.5/14.5 TOTAL CUBIC FT. 622.0 SQUARE INCHES PER SHELF 468.0 790.0 958.0 418.0 555.0 SQUARE INCHES DISPLAY DECK 705.0 855.0...
  • Page 46 WIRING DIAGRAM 208-240V - SELF CONTAINED RSSL378SC, RSSL478SC, RSSL578SC & RSSL678SC RSSL360SC, RSSL460SC, RSSL560SC & RSSL660SC AFTER 01/01/2020 CON DENSATE EVAPORATOR CON DENSATE PU MP, OPTIONAL HOT GAS PAN W/PTC HEATER FLOAT SWITCH PTC HEATER FLOAT SWITCH BL (OR) W PTC HEATER PTC HEATER BR (OR) BLK...
  • Page 47 WIRING DIAGRAM 208-240V - REMOTE RSSL378R, RSSL478R, RSSL578R & RSSL678R RSSL360R, RSSL460R, RSSL560R & RSSL660R AFTER 01/01/2020 BASE FAN STANDARD ON ALL REMOTES OPTIONAL FIELD INSTALLED INSTALLED WHEN OPTIONAL CON DENSATE PU MP CONDENSATE EVAPORATOR CONDENSATE PAN IS USED FLOAT SWITCH FLOAT SWITCH BL (OR) W BR (OR) BLK...
  • Page 48 WIRING DIAGRAM 120V - SELF CONTAINED RSSL378SC, RSSL360SC & RSSL460SC AFTER 01/01/2020 CONDENSATE EVAPORATOR CONDENSATE PUMP, OPTIONAL PTC HEATER FLOAT SWITCH BL (OR) W PTC HEATER BR (OR) BLK COMPRESSOR CONDENSATE PUMP RELAY 120 VOLTS 14GA. CONDENSATE EVAPORATOR 60 HERTZ AS PER ORDER CONDENSER 14GA.
  • Page 49 WIRING DIAGRAM 120V - REMOTE RSSL378R, RSSL360R , RSSL460R, RSSL478R AFTER 01/01/2020 BASE FAN STANDARD ON ALL REMOTES OPTIONAL FIELD INSTALLED INSTALLED WHEN OPTIONAL CON DENSATE PU MP CONDENSATE EVAPORATOR CONDENSATE PAN IS USED FLOAT SWITCH FLOAT SWITCH BL (OR) W BR (OR) BLK SEPERATE 120V 15A CIRCUIT REQUIRED...
  • Page 50 WIRING DIAGRAM 120V NSSL378, NSSL478, NSSL578, & NSSL678 POWER IN REMOTE 120V 60HZ COLOR CODE BLK = BLACK NSSM/NSSL 3', 4', 5' & 6' W = WHITE LED LIGHT CIRCUIT R = RED 91-21065-4 10/16/18 LIGHT BL = BLUE SWITCH 120 VOLTS BLK/BL Y = YELLOW...
  • Page 51 WIRING DIAGRAM 208-240V - SELF CONTAINED RSSL378SC, RSSL478SC, RSSL578SC & RSSL678SC BEFORE 01/01/2020 CONDENSATE EVAPORATOR CONDENSATE PUMP, OPTIONAL PTC HEATER FLOAT SWITCH BL (OR) W PTC HEATER BR (OR) BLK COMPRESSOR CONDENSATE PUMP RELAY 208 - 240 VOLTS 14GA. CONDENSATE EVAPORATOR 60 HERTZ AS PER ORDER CONDENSER...
  • Page 52 WIRING DIAGRAM 120V - SELF CONTAINED RSSL378SC, RSSL478SC BEFORE 01/01/2020 CONDENSATE EVAPORATOR CONDENSATE PUMP, OPTIONAL PTC HEATER FLOAT SWITCH BL (OR) W PTC HEATER BR (OR) BLK COMPRESSOR CONDENSATE PUMP RELAY 120 VOLTS 14GA. CONDENSATE EVAPORATOR 60 HERTZ AS PER ORDER CONDENSER 14GA.

  • Page 53: Wiring Diagrams

    WIRING DIAGRAM 120V - REMOTE RSSL378R, RSSL478R, RSSL578R, & RSSL678R BEFORE 01/01/2020 COLOR CODE CONDENSATE EVAPORATOR CONDENSATE PUMP, OPTIONAL BLK = BLACK PTC HEATER W = WHITE FLOAT SWITCH BL (OR) W R = RED PTC HEATER BR (OR) BLK BL = BLUE Y = YELLOW G = GREEN...
  • Page 54 California Residents Only. WARNING This product can expose you to chemicals including chromium which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Refrigerated Self-Serve Merchandiser (High Profile) Page 54...
  • Page 55 6’ NEW AMOUNT 3.25LBS, CHG BEFORE & AFTER DATES FOR C.U. CHG ON 5’ & 6’ TO 11/24/2021, C.U. 30-21493 WAS 30-17889 BEFORE 11/24/2021, ADDED CURRENT C.U. AFTER 11/24/2021 30-21392 W/ SERVICE COMP 30-21515 ADDED 120V RSSL378 03/23/22 3785 UPDATED 120V RSSL WIRING DIAG 91-21065-18 WAS 91-21065-17...
