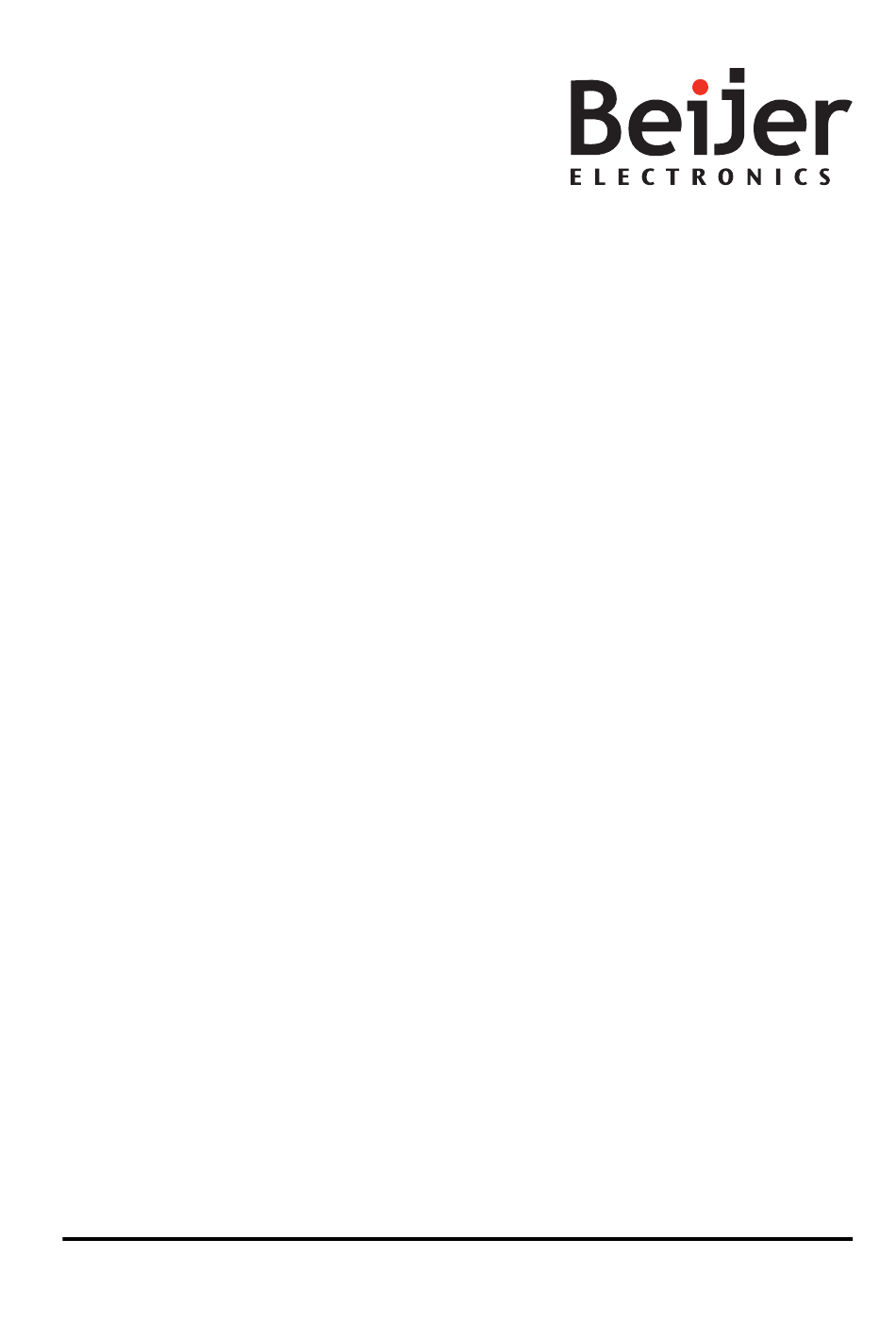

- Page 1 Panel K100 Installation Manual English MAEN995, 2010-04...
- Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB reserves the right to change any information without updating this publication. Beijer Electronics AB assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
5 Operator Panel Drawings ..........14 Communication Ports ........... 14 iX Panel K100 Outline .......... 15 iX Panel K100 Text Strip ........16 6 Additional Installation Tips ..........17 Grounding the Operator Panel ......... 17 Ethernet Connection in the Panel ......18 To Achieve Better EMC Protection ...... -
Page 4: Safety Precautions
Separate the high voltage, signal and supply cables. • Make sure that the voltage and polarity of the power source is correct before • connecting the product to the power outlet. Peripheral equipment must be appropriate for the application and location. • Beijer Electronics, MAEN995... -
Page 5: During Use
Dismantling and Scrapping The operator panel or parts thereof shall be recycled according to local • regulations. The following components contain substances that might be hazardous • to health and the environment: lithium battery, electrolytic capacitor and display. Beijer Electronics, MAEN995... -
Page 6: Installation
1. Unpack and check the delivery. If damage is found, notify the supplier. Panel cut out 343 x 208 mm (13.5 x 8.18 inch) x 14 Note: Place the operator panel on a stable surface during installation. Dropping it or letting it fall may cause damage. Beijer Electronics, MAEN995... - Page 7 For text strip 3.5 mm (0.14 inch) 6.5 mm (0.26 inch) 3. Secure the operator panel in position, using all the fastening holes and the provided brackets and screws: x 14 0.5 - 1.0 Nm Beijer Electronics, MAEN995...
- Page 8 2.5 mm Connect cable C. – Connect cable D. – 5. Carefully remove the laminated film over the operator panel display, to avoid static electricity that could damage the panel. Beijer Electronics, MAEN995...
-
Page 9: Mode Switches
Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Caution: When using a compact flash card, do not remove the card when the busy indicator is illuminated. Beijer Electronics, MAEN995... -
Page 10: Technical Data
Technical Data Technical Data Parameter iX Panel K100 Front panel, W x H x D 382 x 252 x 6 mm Mounting depth 58 mm (158 mm including clearance) Front panel seal IP 66 Rear panel seal IP 20 Keyboard material Membrane switch keyboard with metal domes. -
Page 11: Chemical Resistance
The powder paint shows little or no resistance to the following chemicals at room temperature: Acetic acid, conc. Methyl-ethyl ketone Toluene Acetone Nitric acid 30% Trichlorethylene Ammonia 5% Phenol Xylene Ammonia, conc. Sodium hydroxide 5% 97 octan unleaded petrol Ethyl acetate Sodium hydroxide 30% 98 octan leaded petrol Beijer Electronics, MAEN995... -
Page 12: Touch Screen And Overlay
Autotex is not resistant to high pressure steam at over 100 °C or the following chemicals: Concentrated mineral acids Benzyl alcohol Concentrated caustic solution Methylene chloride Outdoor Use In common with all polyester based films Autotex F157/F207 is not suitable for use in conditions of long term exposure to direct sunlight. Beijer Electronics, MAEN995... -
Page 13: Touch Screen Surface
4.2.3 Autoflex EB It is recommended to use the Autoflex EB touch display protection film, that can be ordered from Beijer Electronics. Solvent Resistance Autoflex EB withstands exposure to the same chemicals as Autotex F157 or F207 according to section Autotex F157/207. -
Page 14: Operator Panel Drawings
Operator Panel Drawings Operator Panel Drawings Communication Ports RS-232 RS-422 RS-485 RS-422/485 Ethernet Beijer Electronics, MAEN995... -
Page 15: Ix Panel K100 Outline
Operator Panel Drawings iX Panel K100 Outline Beijer Electronics, MAEN995... -
Page 16: Ix Panel K100 Text Strip
Operator Panel Drawings iX Panel K100 Text Strip Beijer Electronics, MAEN995... -
Page 17: Additional Installation Tips
Multi-wire conductors are better than single wire conductors with the same area. A braided conductor wire with the same area is even better. The best is a short, thick grounding braid. Beijer Electronics, MAEN995... -
Page 18: Ethernet Connection In The Panel
A more elegant method is to expand the shielded Ethernet cabling with a piece of unshielded Ethernet cable, see 4 in drawing above. You can ground the shield via an external 0.1 uF/250 V plastic capacitor, see 5 in drawing above. This will connect the HF transients to the ground. Beijer Electronics, MAEN995... -
Page 19: To Achieve Better Emc Protection
Additional Installation Tips To Achieve Better EMC Protection Initially, use the original cabling from Beijer Electronics primarily. • Use shielded cables for RS232 communication. • Use twisted pair and shielded cabling for RS422 and RS485. • Use the cabling intended for the bus type; Ethernet, Profibus, CC-Link, •... -
Page 20: Ambient Temperature
The loss effect drops from e.g. 25 W to only 5 W. The operator panel’s loss effect = supply voltage x current. Virtually no power goes to external users and no loss effects due to inputs. Beijer Electronics, MAEN995... -
Page 21: Safety
Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This • is not unusual since there is high static electricity. Beijer Electronics, MAEN995... -
Page 22: Galvanic Isolation
24 V feed, disturbances and grounding currents from the 0 V on the 24 V side will disrupt communication. Using this type of unit solves one problem but creates a larger problem! A substandard installation may work now, but problems may arise when other devices are connected. Beijer Electronics, MAEN995... -
Page 23: Cable And Bus Termination Rs485
Set jumper pins 6-19. Use CAB8. It offers the option of bus termination with pull-up/-down. It • is also easy to connect the bus cable via the screw terminal block. See 4 in drawing above. Beijer Electronics, MAEN995... - Page 24 HEAD OFFICE SUBSIDIARIES SWEDEN GERMANY Beijer Electronics Products AB Elektronik-Systeme Lauer GmbH & Co. KG Beijer Electronics Inc. Box 426 Kelterstraße 59 939 N. Plum Grove Road, Suite F SE-201 24 Malmö, Sweden 72669 Unterensingen, GERMANY Schaumburg, IL 601 73, USA...
