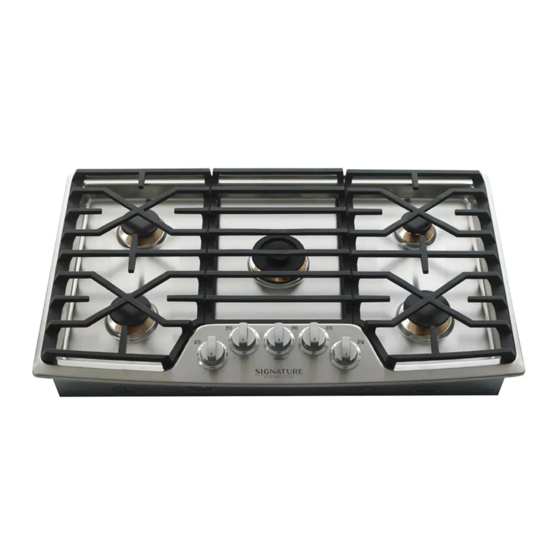

INSTALLATION MANUAL
GAS COOKTOP
Read this installation manual thoroughly before installing the appliance and
keep it handy for reference at all times.
ENGLISH
UPCG3054ST UPCG3654ST
www.signaturekitchensuite.com
MFL62725508
Copyright © 2019-2023 Signature Kitchen Suite. All Rights Reserved.
Rev.03_050323

Advertisement

loading
Need help?

Need help?

Do you have a question about the UPCG3054ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Signature Kitchen Suite UPCG3054ST

Summary of Contents for Signature Kitchen Suite UPCG3054ST

  • Page 1 INSTALLATION MANUAL GAS COOKTOP Read this installation manual thoroughly before installing the appliance and keep it handy for reference at all times. ENGLISH UPCG3054ST UPCG3654ST www.signaturekitchensuite.com MFL62725508 Copyright © 2019-2023 Signature Kitchen Suite. All Rights Reserved. Rev.03_050323...
  • Page 2 Safety for a Gas Cooktop WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. Do not store or use gasoline or other flammable vapors and liquids in •...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE WARNING STATEMENTS INSTALLATION Before Installing Installing the Cooktop 14 APPENDIX Checking Operation...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS • If cabinets are located above the cooktop, allow a minimum clearance of 30″ between the cooking surface and the bottom of unprotected cabinets. • If a 30″ clearance between cooking surface and overhead combustible material or metal cabinets cannot be maintained, protect the underside of the cabinets above the cooktop with not less than 1/4″...

  • Page 6: Installation

    INSTALLATION INSTALLATION Before Installing In the Commonwealth of Massachusetts Before You Begin • This product must be installed by a licensed plumber or gas fitter. Read these instructions completely and carefully. Improper installation, adjustment, alteration, • When using ball type gas shut-off valves, they service or maintenance can cause injury or must be the T-handle type.
  • Page 7 INSTALLATION • To reduce the possibility of gas leaks, apply Never use an old connector when installing a Teflon tape or a thread compound approved for new cooktop. use with LP or natural gases to all threaded • Flare union adapter for connection to gas supply connections.

  • Page 8: Installing The Cooktop

    INSTALLATION Dimension/Clearance 30" Cooktop 36" Cooktop Width of upper plate 30" (760 mm) 36" (915 mm) Depth of upper plate 21 11/16" (550 mm) Height of cooktop base 3 3/4" (95 mm) Width of cooktop base 28 1/4" (717 mm) 33 5/8"...
  • Page 9 INSTALLATION more than the operating (manifold) pressure as Install the retainer brackets to the bottom given above. of the cooktop unit . then snug the screws The pressure regulator located at the inlet of the against the bottom of the countertop cooktop manifold must remain in the supply line shown.
  • Page 10 10 INSTALLATION Gas Flow into Cooktop Connect a flexible metal connector to the adapter on the cooktop. Position the cooktop Flex Connector (3 ft. max. in US, 6 ft. max. in to permit connection at the shut-off valve. Canada) Adapter When all connections have been made, be Gas Shut-off Valve sure all cooktop controls are in the off...
  • Page 11 INSTALLATION replaced with a properly grounded three-prong Make sure that the caps and heads are placed in wall receptacle. the correct locations. DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD. CAUTION • If needed, have the circuit checked by a qualified technician to make sure the receptacle is correctly grounded.
  • Page 12 12 INSTALLATION Center Burner Only Yellow tips on outer cones — 1) Disconnect the appliance from power. Normal for LP gas 2) Remove grates, burner caps, burner heads Soft blue flames — Normal for and knobs. natural gas 3) Remove all the screws on the cooktop with a If burner flames look like , call for service.
  • Page 13 INSTALLATION 18) Remove the knob, grate, burner cap, and burner head. 19) Remove all screws from the cooktop. 20) Remove the cooktop by lifting up. 21) Replace the center LED lamp module. 22) Replace the cooktop and secure all screws. 23) Replace the burner heads, burner caps, grates and knobs.

  • Page 14: Appendix

    14 APPENDIX APPENDIX Checking Operation Final Check When All Hookups are Complete Make sure all controls are left in the off position. Make sure the flow of combustion and ventilation air to the cooktop is unobstructed. Converting to LP Gas (or Converting Back to Natural Gas from LP) This cooktop leaves the factory set for use with natural gas.
  • Page 15 Memo...
