Sharp QT-MP5W Service Manual page 41

Portable cd stereo system
Hide thumbs Also See for QT-MP5W:
Table of Contents

Advertisement

QT-MP5W
TAPE PWB-E

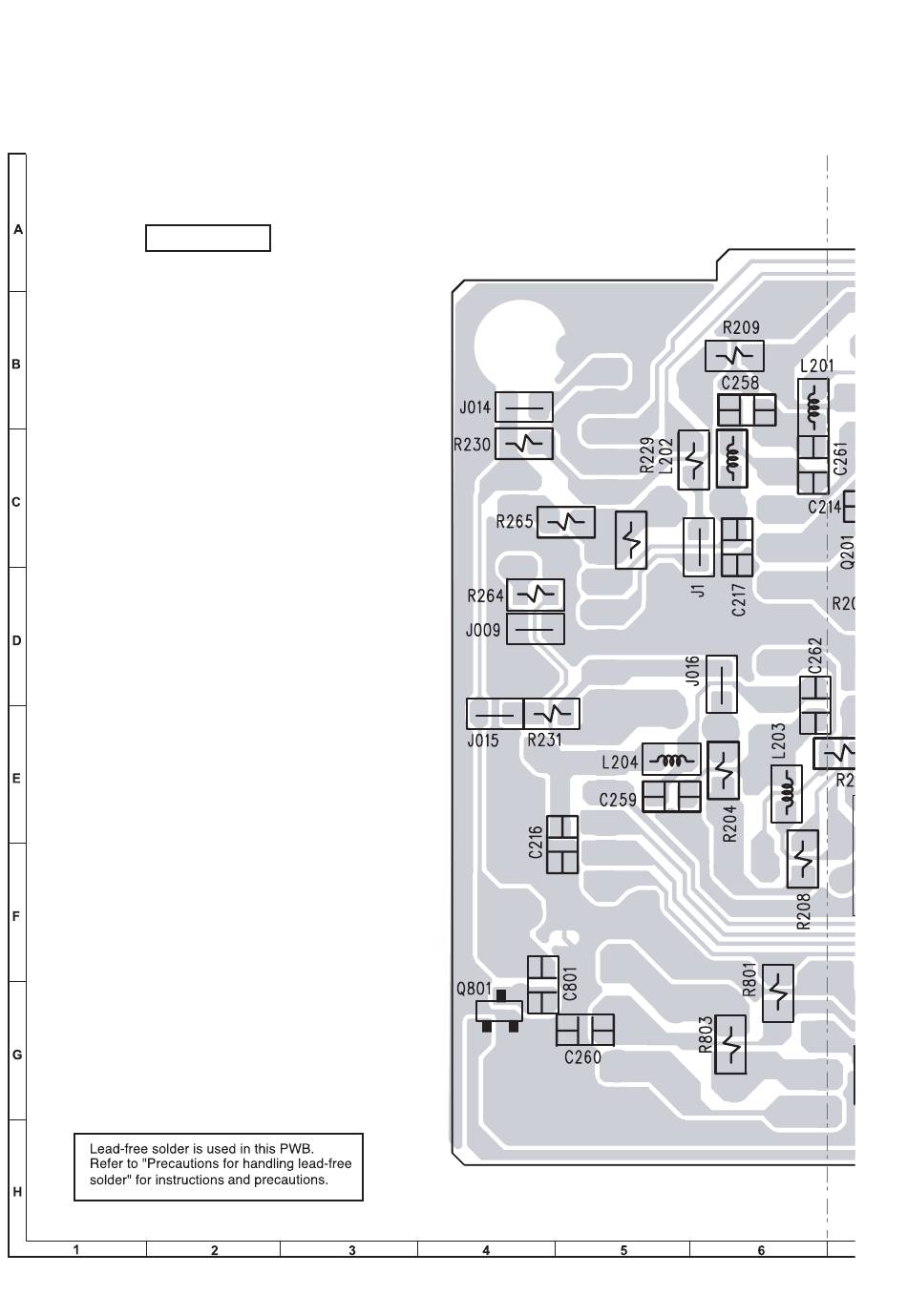

Figure 5-27: WIRING SIDE OF TAPE PWB (BOTTOM VIEW) (1/2)
5 – 30
