Page 2
SAFETY INFORMATION SAFETY WARNINGS WARNING • To reduce the risk of fire or electric shock, do TO REDUCE THE RISK OF ELECTRIC SHOCK, DO not expose this appliance to rain or moisture. NOT REMOVE THE COVER (OR BACK). CAUTION NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE •...
Page 3
QR code. To see the manual on 2 hours until the unit has reached room your PC or mobile device, download the temperature before using. manual in document format from the website. (http://www.samsung.com/support) Design and specifications are subject to change without prior notice. ENG - iii...
CONTENTS Checking the Components Inserting Batteries before using the Remote Control (AA batteries X 2) --------------------------- Product Overview Front Panel / Right Side Panel of the Soundbar ------------------------- Bottom Panel of the Soundbar ------------------------- Connecting the Soundbar Connecting Electrical Power ------------------------- Connecting the Soundbar to the Subwoofer -------------------------...
Page 5
Connecting a Mobile Device Connecting via Bluetooth ------------------------- Using the Remote Control How to Use the Remote Control ------------------------- Adjusting the Soundbar volume with a TV remote control ------------------------- Installing the Wall Mount Installation Precautions ------------------------- Wallmount Components ------------------------- Detaching the Soundbar from the Wall ------------------------- Troubleshooting Licence...
4. • For Soundbar wall mounting components, see page 16. • Micro USB to USB adapter Cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care. • Depending on the region, the AC plug may vary in appearance, or it may be supplied integrated with the AC/DC adapter.

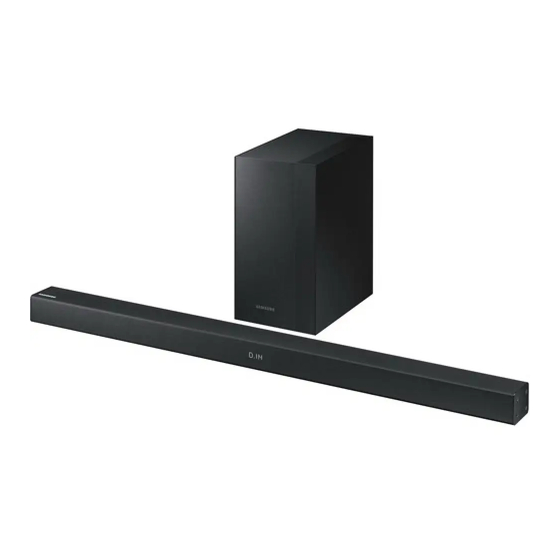

02 PRODUCT OVERVIEW Front Panel / Right Side Panel of the Soundbar Right Side of the Soundbar Position the product so that the SAMSUNG logo Volume is located on the top. Power Display Bottom Panel of the Soundbar DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A)
03 CONNECTING THE SOUNDBAR Connecting Electrical Power Use the power components (1, 2, 3) to connect the units to electrical outlets in the following order: 1.) Subwoofer 2.) Soundbar Main Unit. See the illustrations below. • For more information about the required electrical power and power consumption, refer to the label attached to the product.
Soundbar unit is connected properly. Connect again. See the instructions for Connection failed manual connection on page 6. Red and See the contact information for the Blinking Malfunction blue Samsung Service Centre in the manual. ENG - 5...
• If the connection process fails, the blue indicator will flash continuously. Go to Step 1 and start again. Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-8500S) to your Soundbar (Sold separately). For more information, see the Samsung Wireless Rear Speaker Kit manual.
04 CONNECTING TO YOUR TV Hear TV sound from your Soundbar through wired or wireless connections. • When the Soundbar is connected to a selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control. – When using optical cable, this feature can be supported by 2017 Samsung Smart TVs that support Bluetooth.
3. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.) 4. Select “[AV] Samsung Soundbar Mxxx M-Series” from the list on TV’s screen. An available Soundbar is indicated with “Need Pairing” or “Paired” on the TV Bluetooth device list.
Page 13
If the device fails to connect • If the previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar Mxxx M-Series”) appears in the list, delete it. • In “BT” mode, press and hold the (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to “BT PAIRING”...
05 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired or wireless network to play the external device’s sound through the Soundbar. Connecting using an Optical or Analogue Audio (AUX) Cable BD / DVD player / Set-top box / Right Side of the Soundbar Game console DIGITAL AUDIO IN...
2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar. • Micro USB to USB adapter Cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.
4. Play music files from the device, connected via Bluetooth, through the Soundbar. If the device fails to connect • If the previously connected Soundbar listing (e.g. “[AV] Samsung Soundbar Mxxx M-Series”) appears in the list, delete it. • In “BT” mode, press and hold the (Source) button for more than 5 seconds on the right side panel of the Soundbar or on the remote control to switch to “BT PAIRING”...
08 USING THE REMOTE CONTROL How to Use the Remote Control Turns the Soundbar on and off. Power You can select from TREBLE, BASS, or AUDIO SYNC. • To control the volume of the treble or bass Sound Control sound, select TREBLE or BASS in Sound Settings, and then adjust the volume between -6~+6 by using the Up/Down buttons.
Page 18
• If you press the Bluetooth POWER button again to turn off the BT function, “OFF-BLUETOOTH POWER” appears in the Soundbar’s display. • If the “D.IN” mode is on and the Soundbar is connected to a Samsung smart TV released in 2017 or later, the Soundbar can be controlled with the TV remote control.
• After installing the Soundbar, you can adjust the Soundbar’s volume using the IR remote control that came with a Samsung TV. (If you do not want to use this function, when the Soundbar is on, press and hold the Surround button for 5 seconds. “OFF-TV REMOTE” appears in the Soundbar’s display and the function turns off.) To adjust the volume using only the Samsung TV remote control,...
09 INSTALLING THE WALL MOUNT Installation Precautions • Install on a vertical wall only. • Do not install in a place with high temperature or humidity. • Verify whether the wall is strong enough to support the product’s weight. If not, reinforce the wall or choose another installation point.
Page 21
1. Place the Wall Mount Guide against the wall 3. Push a pen tip or sharpened pencil tip surface. through the centre of the B-TYPE images on • The Wall Mount Guide must be level. each end of the Guide to mark the holes for •...
Page 22
6. Use the two Screws (M4 x L12) to attach both • The left and right mounts are different shapes. Make sure to position them Bracket-Wall Mount L and R to the correctly. Soundbar’s bottom. For a proper fit, make sure to align the bumps on the Soundbar to the holes on the brackets.
Detaching the Soundbar from the Wall 1. To separate the Soundbar from the wall mount, push it in the direction of arrow, tilt it up slightly, and then pull it away from the wall as shown. • Do not hang onto the installed unit and avoid striking or dropping the unit.
10 TROUBLESHOOTING Before seeking assistance, check the following. The unit will not turn on. Is the power cord plugged into the outlet? ; Connect the power plug to the outlet. A function does not work when the button is pressed. Is there static electricity in the air? ;...
25mW at 5.725GHz – 5.825GHz NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. • For more information about the power supply and power consumption, refer to the label attached to the product.
Page 27
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product specific regulatory obligations e.g. REACH, WEEE, Batteries, visit: http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html...
Page 28
SICHERHEITSINFORMATIONEN HINWEISE ZUR SICHERHEIT WARNUNG • Setzen Sie das Gerät nicht Nässe oder ZUR VERMEIDUNG VON STROMSCHLÄGEN DARF Feuchtigkeit aus, um die Gefahr eines DIESES GERÄT NICHT GEÖFFNET WERDEN. Brandes bzw. eines elektrischen Schlags zu ES ENTHÄLT KEINE BAUTEILE, DIE VOM vermeiden.
Page 29
Mobilgerät zu konsultieren, Laden Sie das Verwenden Sie dieses Produkt nur für den Handbuch als Dokument von der Webseite privaten Bereich. Wenn Ihr Produkt oder die herunter. (http://www.samsung.com/support) CD bei kalten Temperaturen aufbewahrt wurden, kann Kondensation auftreten. Wenn Design und technische Daten können sich ohne Sie das Gerät bei kaltenTemperaturen...
Page 30
INHALT Überprüfen der Komponenten Einlegen der Batterien vor der Verwendung der Fernbedienung (AA-Batterien X 2) ------------------------- Produktübersicht Vorderseite / rechte Seite der Soundbar ------------------------- Unterseite der Soundbar ------------------------- Anschliessen der Soundbar Stromanschluss ------------------------- Verbinden der Soundbar mit den Subwoofer ------------------------- –...
Page 31
Anschliessen eines Mobilgeräts Anschließen per Bluetooth ------------------------- Verwenden der Fernbedienung So verwenden Sie die Fernbedienung ------------------------- Anpassen der Soundbar-Lautstärke mit einer TV-Fernbedienung ------------------------- Installieren der Wandhalterung Vorsichtsmaßnahmen für die Installation ------------------------- Komponenten für die Anbringung an der Wand ------------------------- Soundbar von der Wand abnehmen ------------------------- Fehlerbehebung Lizenz...
• Siehe Seite 16 zu den Wandhalterungskomponenten. • Das Micro-USB-auf-USB-Adapterkabel ist separat erhältlich. Wenden Sie sich hierzu an ein Samsung Servicezentrum oder den Kundendienst von Samsung. • Je nach der Region kann der AC-Stecker unterschiedlich aussehen oder er kann in den AC/DC-Adapter integriert geliefert werden.
02 PRODUKTÜBERSICHT Vorderseite / rechte Seite der Soundbar Rechte Seite der Soundbar Positionieren Sie das Produkt so, dass sich das SAMSUNG Logo Lautstärke auf der Oberseite befindet. Strom Anzeige Unterseite der Soundbar DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) DC 19V...
03 ANSCHLIESSEN DER SOUNDBAR Stromanschluss Verwenden Sie die Stromkomponenten (1, 2, 3) um die Geräte in der folgenden Reihenfolge an Steckdosen anzuschließen: 1.) Subwoofer 2.) Soundbar-Hauptgerät. Siehe die nachfolgenden Abbildungen. • Weitere Informationen zur benötigten Stromversorgung und zum Stromverbrauch finden Sie auf dem Etikett am Gerät.
Prüfen Sie, ob das Stromkabel richtig am ausgeschaltetem Soundbar-Hauptgerät angeschlossen ist. Soundbar-Hauptgerät) Verbindung Erneut verbinden. Siehe die Anweisungen zur fehlgeschlagen manuellen Verbindung auf Seite 6. Rot und Siehe die Kontaktinformationen für das Blinkend Fehlfunktion blau Samsung Servicezentrum in dem Handbuch. DEU - 5...
Gehen Sie zu Schritt 1 und starten Sie erneut. Erweitern Sie das System um echten drahtlosen Surround-Sound, indem Sie das Drahtlose Rücklautsprecherkit (SWA-8500S) von Samsung an Ihre Soundbar anschließen (separat erhältlich). Für weitere Informationen siehe die Anleitung für das Drahtlose Rücklautsprecherkit von Samsung.
04 ANSCHLUSS AN IHR FERNSEHGERÄT Hören Sie den TV-Ton durch kabelgebundene oder kabellose Verbindungen über Ihre Soundbar. • Wenn die Soundbar an einen ausgewählten Samsung TV angeschlossen ist, kann die Soundbar über die Fernbedienung des Fernsehers bedient werden. – Bei der Verwendung eines optischen kabels kann diese Funktion von Bluetooth-fähigen 2017 Samsung Smart TVs unterstützt werden.
3. Wählen Sie den Bluetooth-Modus an dem Fernseher aus. (Weitere Informationen finden Sie im Handbuch des Fernsehers.) 4. Wählen Sie „[AV] Samsung Soundbar Mxxx M-Series“ aus der Liste auf dem Bildschirm des Fernseher aus. Eine verfügbare Soundbar wird durch „Need Pairing“ oder „Paired“ auf der Bluetooth-Geräteliste des Fernsehers angezeigt.
Page 39
Falls das Gerät nicht verbunden werden kann • Falls die Auflistung der zuvor verbundenen Soundbar (z. B. „[AV] Samsung Soundbar Mxxx M-Series“) in der Liste erscheint, löschen Sie sie. • Halten Sie im Modus „BT“ die Taste (Quelle) länger als 5 Sekunden auf der rechten Seite der Soundbar oder auf der Fernbedienung gedrückt, um zum Modus „BT PAIRING“...
05 VERBINDUNG MIT EINEM EXTERNEN GERAT HERSTELLEN Über ein kabelgebundenes oder kabelloses Netzwerk mit einem externen Gerät verbinden, um den Ton des externen Geräts über die Soundbar wiederzugeben. Verbindung mit einem optischen oder analogen Audio (AUX)-Kabel BD / DVD-Player / Set-Top-Box / Rechte Seite der Soundbar Spielkonsole DIGITAL AUDIO IN...
Weitere Informationen zum Herunterladen der Aktualisierungsdateien finden Sie auf der Samsung Electronics Webseite unter (www.samsung.com → Support). Geben Sie dann das Modell Ihrer Soundbar ein oder wählen Sie es aus, wählen Sie Software & Anwendungen und dann Downloads. Der Name der Option kann variieren.
4. Geben Sie Musikdateien auf dem über Bluetooth verbundenen Gerät über die Soundbar aus. Falls das Gerät nicht verbunden werden kann • Falls die Auflistung der zuvor verbundenen Soundbar (z. B. „[AV] Samsung Soundbar Mxxx M-Series“) in der Liste erscheint, löschen Sie sie.
08 VERWENDEN DER FERNBEDIENUNG So verwenden Sie die Fernbedienung Schaltet die Soundbar ein und aus. Strom Sie können unter TREBLE, BASS, oder AUDIO SYNC auswählen. • Um die Lautstärke der Höhen oder des Basses zu regeln, wählen Sie in den Klangsteuerung Sound-Einstellungen TREBLE oder BASS.
Page 44
• Wenn Sie erneut die Bluetooth POWER-Taste drücken, um die BT-Funktion auszuschalten, erscheint „OFF-BLUETOOTH POWER“ in der Anzeige der Soundbar. • Wenn der „D.IN“-Modus eingeschaltet ist und die Soundbar an einen Samsung Smart TV angeschlossen ist, der nach 2017 veröffentlicht wurde, kann die Soundbar mit der TV-Fernbedienung gesteuert werden.
Um die Lautstärke nur mit der Samsung TV-Fernbedienung anzupassen, halten Sei die Surround-Taste länger als 5 Sekunden gedrückt, bis „SAMSUNG-TV REMOTE“ in der Anzeige der Soundbar erscheint. – Jedes Mal, wenn die Surround-Taste für 5 Sekunden gedrückt gehalten wird, wird der Modus in der folgenden Reihenfolge umgeschaltet: „SAMSUNG-TV REMOTE”...
09 INSTALLIEREN DER WANDHALTERUNG Vorsichtsmaßnahmen für die Installation • Installieren Sie nur an einer vertikalen Wand. • Installieren Sie nicht an einem Ort mit hoher Temperatur oder Feuchtigkeit. • Überprüfen Sie, ob die Wand stark genug ist, um das Gewicht des Produkts zu tragen. Falls nicht, verstärken Sie die Wand oder wählen Sie einen anderen Installationsort.
Page 47
1. Platzieren Sie die Montagehilfe für die 3. Drücken Sie die Spitze eines Stifts oder einen Wandhalterung an der Wand. spitzen Bleistift durch die Mitte der B-TYPE- • Die Montagehilfe für die Wandhalterung Bilder an beiden Enden der Montagehilfe, um muss waagerecht positioniert sein.
Page 48
6. Verwenden Sie die beiden Schrauben (M4 x • Die linke und rechte Halterung haben eine unterschiedliche Form. Achten Sie L12) um die Wandhalterung L und R an der darauf, sie korrekt zu positionieren. Unterseite der Soundbar zu befestigen. Achten Sie für sicheren Halt darauf, dass die Dellen auf der Soundbar in die Hervorhebungen in den Halterungen Wandhalterung R...
Soundbar von der Wand abnehmen 1. Um die Soundbar von der Wandhalterung zu entfernen, schieben Sie sie in Richtung des Pfeils, neigen Sie sie leicht nach oben und nehmen Sie sie dann wie dargestellt von der Wand ab. • Stützen Sie sich nicht auf dem installierten Gerät ab und vermeiden Sie Erschütterungen oder das Fallenlassen des Geräts.
10 FEHLERBEHEBUNG Bevor Sie sich an den Kundendienst wenden, überprüfen Sie bitte die folgenden Punkte. Das Gerät wird nicht eingeschaltet. Ist das Stromkabel an die Steckdose angeschlossen? ; Schließen Sie den Netzstecker an die Steckdose an. Eine Funktion funktioniert nicht, wenn die Taste gedrückt wird. Gibt es statische Elektrizität in der Luft? ;...
Reserved. bevor irgendwelche Arbeiten durchgeführt werden oder der Hausbesuch erfolgt. 12 BEKANNTMACHUNG ZU OPEN SOURCE LIZENZEN Wenn Sie Fragen bezüglich des Themas Open Source haben, wenden Sie sich bitte per E-Mail unter der Adresse an Samsung (oss.request@samsung.com). DEU - 21...
25 mW bei 5,725 GHz – 5,825 GHz Transmitterleistung HINWEISE • Samsung Electronics Co., Ltd behält sich das Recht auf unangekündigte Änderungen vor. • Gewicht und Abmessungen können von den Angaben abweichen. • Weitere Informationen zur benötigten Stromversorgung und zum Stromverbrauch finden Sie auf dem Etikett am Gerät.
Page 53
Gewerbliche Nutzer wenden sich an ihren Lieferanten und gehen nach den Bedingungen des Verkaufsvertrags vor. Dieses Produkt und elektronische Zubehörteile dürfen nicht zusammen mit anderem Gewerbemüll entsorgt werden. Für Informationen über die Umweltverpflichtungen und produktspezifischen regulatorischen Verpflichtungen von Samsung wie z. B. REACH, WEEE, Batterien, besuchen Sie: http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html DEU - 23...
Page 54
INFORMATIONS RELATIVES À LA SÉCURITÉ AVERTISSEMENTS AVERTISSEMENT • Afin de diminuer les risques d’incendie ou de POUR ÉVITER LES RISQUES DE CHOC choc électrique, n’exposez pas cet appareil à ÉLECTRIQUE, NE DÉMONTEZ PAS LE CAPOT. la pluie ou à l’ humidité. L’APPAREIL NE CONTIENT PAS DE PIÈCES ATTENTION RÉPARABLES PAR L’UTILISATEUR ;...
Page 55
Web. été stocké à basse température. (http://www.samsung.com/support) Si vous devez transporter l’ensemble pendant l’hiver, attendez environ 2 heures La présentation et les spécifications peuvent faire que l’appareil ait atteint la température de la...
Page 56
SOMMAIRE Contrôle des Composants Insertion des piles avant l’utilisation de la télécommande (Piles AA X 2) --------------------------- Présentation du Produit Panneau avant / Panneau côté droit de la Soundbar ------------------------- Panneau inférieur de la Soundbar ------------------------- Connexion de la Soundbar Connexion de l’alimentation électrique ------------------------- Connexion de la Soundbar au Caisson de basse...
Page 57
Connexion à un Appareil Mobile Connexion via Bluetooth ------------------------- Utilisation de la télécommande Comment utiliser la télécommande ------------------------- Réglage du volume de la Soundbar avec une télécommande de téléviseur --------------------------- Installation du Support Mural Précautions d’installation ------------------------- Composants de fixation au mur ------------------------- Retrait de la Soundbar du mur -------------------------...
• Le câble adaptateur Micro USB à USB est vendu séparément. Pour l’achat, contactez un Centre de service Samsung ou le Service client de Samsung. • En fonction de la région, l’apparence de la fiche CA peut varier ou elle peut être fournie intégrée à...
02 PRÉSENTATION DU PRODUIT Panneau avant / Panneau côté droit de la Soundbar Côté droit de la Soundbar Placez le produit de sorte que le logo SAMSUNG se Volume trouve sur le dessus. Alimentation Affichage Panneau inférieur de la Soundbar...
03 CONNEXION DE LA SOUNDBAR Connexion de l’alimentation électrique Utilisez les composants d’alimentation (1, 2, 3) pour connecter les unités aux prises électriques dans l’ordre suivant : 1.) Caisson de basse 2.) Unité principale Soundbar. Reportez-vous aux illustrations ci-dessous. •...
Rouge Activé Reconnectez. Reportez-vous aux Échec de la connexion instructions sur la connexion manuelle à la page 6. Reportez-vous aux informations de Rouge et Clignotement Dysfonctionnement contact du Centre de service Samsung bleu dans le manuel. FRA - 5...
• Si le procédé de connexion échoue, l’indicateur bleu clignote en continu. Passez à l’étape 1 et recommencez. Passez au vrai son surround sans fil en connectant votre kit d’enceintes arrière sans fil Samsung (SWA-8500S) à votre Soundbar (vendue séparément). Pour plus d’informations, reportez-vous au manuel du kit d’enceintes arrière sans fil Samsung. FRA - 6...
04 CONNEXION À VOTRE TÉLÉVISEUR Écoutez le son du téléviseur depuis la Soundbar via des connexions câblées ou sans fil. • Lorsque la Soundbar est connectée à un téléviseur Samsung TV sélectionné, la Soundbar peut être contrôlée à l’aide de la télécommande du téléviseur.
3. Sélectionnez le mode Bluetooth sur le téléviseur. (Pour plus d’informations, reportez-vous au manuel du téléviseur.) 4. Sélectionnez «[AV] Samsung Soundbar Mxxx M-Series» dans la liste sur l’écran du téléviseur. Une Soundbar disponible est indiquée «Need Pairing» ou «Paired» dans la liste des appareils Bluetooth sur le téléviseur.
Page 65
Si la connexion de l’appareil échoue • Si la liste de Soundbar connectées précédemment (par ex. «[AV] Samsung Soundbar Mxxx M-Series» apparaît dans la liste, supprimez-la. • En mode «BT», appuyez et maintenez enfoncée la touche (Source) pendant plus de 5 secondes sur le panneau côté...
05 CONNEXION À UN APPAREIL EXTERNE Raccordez un appareil externe via un réseau câblé ou sans fil pour écouter le son de l’appareil externe via la Soundbar. Connexion à l’aide d’un câble audio Optique ou Analogique (AUX) Lecteur BD/DVD / Boîtier décodeur / Côté...
5 minutes. Mise à jour du Logiciel Samsung peut proposer des mises à jour pour le microprogramme du système de la Soundbar prochainement. Si une mise à jour est proposée, vous pouvez mettre à jour le microprogramme en connectant le périphérique USB contenant la mise à...
4. Lisez des fichiers musicaux à partir de l’appareil, connecté via Bluetooth, via la Soundbar. Si la connexion de l’appareil échoue • Si la liste de Soundbar connectées précédemment (par ex. «[AV] Samsung Soundbar Mxxx M-Series» apparaît dans la liste, supprimez-la.
08 UTILISATION DE LA TÉLÉCOMMANDE Comment utiliser la télécommande Allume et éteint la Soundbar. Alimentation Vous pouvez sélectionner parmi TREBLE, BASS, ou AUDIO SYNC. • Pour contrôler le volume des aigus et des graves, sélectionnez TREBLE ou BASS dans Commande les paramètres audio, puis réglez le volume, sonore de -6 à...
Page 70
• Lorsque le mode «D.IN» est activé et la Soundbar est connectée à un téléviseur Samsung Smart TV sorti en 2017 ou ultérieur, la Soundbar peut être contrôlée avec la télécommande du téléviseur. Dans ce mode, vous ne pouvez pas désactiver WOOFER Bluetooth POWER.
Réglage du volume de la Soundbar avec une télécommande de téléviseur Utilisez le menu du téléviseur pour régler l’enceinte TV d’un téléviseur Samsung sur les enceintes externes. (Pour plus d’informations, reportez-vous au manuel d’utilisateur du téléviseur.) •...
09 INSTALLATION DU SUPPORT MURAL Précautions d’installation • Installez sur un mur vertical uniquement. • N’installez pas dans un endroit à température élevée ou humide. • Vérifiez si le mur est suffisamment robuste pour supporter le poids du produit. Sinon, renforcez le mur ou choisissez un autre point d’installation. •...
Page 73
1. Placez le Guide de fixation murale contre le 3. Appuyez avec la pointe d’un stylo ou d’un mur. crayon bien taillé au centre des images • Le Guide de fixation murale doit être de B-TYPE à chaque extrémité du guide pour niveau. marquer les trous des vis portantes, puis •...
Page 74
6. Utilisez les deux Vis (M4 x L12) pour fixer le • Les fixations droite et gauche ont des formes différentes. Veillez à bien les Support de fixation murale G et D à l’arrière positionner. de la Soundbar. Pour une bonne fixation, veillez à aligner les excroissances de la Soundbar et les trous des supports.
Retrait de la Soundbar du mur 1. Pour retirer la Soundbar de la fixation murale, poussez-la dans la direction de la flèche, inclinez-la légèrement et retirez-la du mur comme indiqué sur l’image. • Ne la suspendez pas à l’unité installée et évitez de heurter ou de faire chuter l’unité.
10 DÉPANNAGE Avant de contacter l’assistance, veuillez lire ce qui suit. L’unité ne s’allume pas. Le cordon d’alimentation est-il branché dans la prise murale? ; Branchez la fiche secteur sur la prise. Une fonction ne répond pas lorsque la touche est enfoncée. De l’électricité statique est-elle présente dans l’air? ; Débranchez la fiche secteur et rebranchez-la. Des distorsions sonores se font entendre en mode BT.
• Le montant de ces frais administratifs vous 12 AVIS DE LICENCE sera notifié avant que tout travail ou toute LIBRE visite à votre domicile ne soit effectuée). Pour toute requête et demande concernant les sources ouvertes, contactez Samsung via e-mail à l’adresse (oss.request@samsung.com). FRA - 21...
SRD max. 5,825 GHz REMARQUES • Samsung Electronics Co,, Ltd se réserve le droit de modifier les caractéristiques sans préavis. • Le poids et les dimensions sont approximatifs. • Pour plus d’informations sur l’alimentation et la consommation électriques, reportez-vous à...
Page 79
Ce produit et ses accessoires ne peuvent être jetés avec les autres déchets. Pour obtenir des informations sur les engagements environnementaux de Samsung et sur les obligations réglementaires spécifiques à l’appareil, par ex. la réglementation REACH WEEE, rendez-vous sur : http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html...
Page 80
INFORMAZIONI SULLA SICUREZZA NORME PER LA SICUREZZA AVVERTENZA • Per ridurre i rischi d’incendio e di scosse PER RIDURRE I RISCHI DI FOLGORAZIONE, NON elettriche non esporre l’ apparecchio a RIMUOVERE IL COPERCHIO (O IL RETRO), pioggia o umidità. ALL’INTERNO NON VI SONO PARTI RIPARABILI ATTENZIONE DALL’UTENTE.
Page 81
PC o dispositivo mobile, vengono conservati a basse temperature, scaricarlo dal sito in formato documento. potrebbe formarsi della condensa. (http://www.samsung.com/support) Trasportando l’unità in inverno, attendere circa 2 ore prima di utilizzarla, in modo che Le caratteristiche e le specifiche sono soggette a ritorni a temperatura ambiente.
Page 82
SOMMARIO Verifica dei componenti Inserimento delle batterie prima dell’utilizzo del telecomando (2 batterie AA) ------------------------- Panoramica del prodotto Pannello frontale / Pannello laterale destro della Soundbar ------------------------- Pannello inferiore della Soundbar ------------------------- Collegamento della Soundbar Collegamento alla rete elettrica ------------------------- Collegamento della Soundbar al subwoofer ------------------------- –...
Page 83
Connessione di un dispositivo mobile Connessione tramite Bluetooth ------------------------- Utilizzo del telecomando Come utilizzare il telecomando ------------------------- Regolazione del volume della Soundbar tramite il telecomando di una TV --------------------------- Installazione del supporto a parete Precauzioni per l’installazione ------------------------- Componenti per il montaggio a parete ------------------------- Rimozione della Soundbar dalla parete ------------------------- Risoluzione dei problemi Licenza...
• Il cavo adattatore da micro USB a USB è venduto separatamente. Per effettuarne l’acquisto, contattare un Centro servizi Samsung o l’Assistenza clienti Samsung. • A seconda del paese, l’aspetto della spina CA può variare o potrebbe essere fornita già integrata nell’adattatore.
02 PANORAMICA DEL PRODOTTO Pannello frontale / Pannello laterale destro della Soundbar Lato destro della Soundbar Posizionare il prodotto in modo tale che il logo SAMSUNG si Volume trovi nella parte superiore. Alimentazione Visualizzazione Pannello inferiore della Soundbar DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) DC 19V AUX IN DIGITAL AUDIO IN DC 19V (OPTICAL) USB (5V 0.5A)
03 COLLEGAMENTO DELLA SOUNDBAR Collegamento alla rete elettrica Utilizzare nel seguente ordine i componenti di alimentazione (1, 2, 3) per collegare le unità alle prese elettriche: 1.) Subwoofer 2.) Unità principale della Soundbar. Vedere le figure sottostanti. • Per ulteriori informazioni sulla potenza elettrica assorbita e sul consumo di energia, vedere l’etichetta applicata al prodotto.
Soundbar. Rosso Acceso Procedere nuovamente alla connessione. Connessione non riuscita Vedere le istruzioni relative alla connessione manuale a pagina 6. Rosso e Consultare il manuale per i recapiti del Lampeggiante Malfunzionamento Centro servizi Samsung. ITA - 5...
6. Una volta stabilita con successo la connessione, l’indicatore blu sulla parte superiore del subwoofer smette di lampeggiare e rimane sempre acceso. • Se il processo di connessione non ha esito positivo, l’indicatore blu lampeggia in maniera continua. Tornare al passaggio 1 e ricominciare. Per provare il vero impianto audio surround wireless, collegare il kit di diffusori posteriori wireless Samsung (SWA-8500S) alla Soundbar (venduto separatamente). Per ulteriori informazioni, consultare il manuale del kit di diffusori posteriori wireless Samsung. ITA - 6...
(Sorgente) sul pannello laterale destro o sul telecomando, quindi selezionare il modo “D.IN”. • Se la Soundbar è connessa a una smart TV Samsung rilasciata dopo il 2017, la funzione Bluetooth POWER si attiva automaticamente per consentire il controllo della Soundbar tramite il telecomando della TV.
“BT PAIRING”. 3. Selezionare il modo Bluetooth sulla TV. (Per ulteriori informazioni, consultare il manuale della TV.) 4. Selezionare “[AV] Samsung Soundbar Mxxx M-Series” dall’elenco visualizzato nella schermata della TV. Una Soundbar disponibile è indicata con “Need Pairing” o “Paired” nell’elenco dei dispositivi Bluetooth della TV. Per connettersi alla Soundbar, selezionare il messaggio e stabilire una connessione.
Page 91
Se il dispositivo non riesce a connettersi • Se la voce relativa alla Soundbar precedentemente connessa (ad es. “[AV] Samsung Soundbar Mxxx M-Series”) compare nell’elenco, cancellatela. • Nel modo “BT”, tenere premuto il tasto (Sorgente) per almeno 5 secondi sul pannello laterale destro della Soundbar o sul telecomando per passare al modo “BT PAIRING”.
05 COLLEGAMENTO DI UN DISPOSITIVO ESTERNO È possibile connettersi a un dispositivo esterno tramite una rete cablata o wireless per riprodurre l’audio del dispositivo esterno tramite la Soundbar. Collegamento tramite un cavo audio (AUX) ottico o analogico Lettore BD / DVD / Decoder / Lato destro della Soundbar Console per videogiochi DIGITAL AUDIO IN (OPTICAL) OPTICAL OUT Cavo ottico USB (5V 0.5A) - AUDIO - AUX IN Cavo audio (AUX)
Soundbar. Per ulteriori informazioni su come scaricare i file di aggiornamento, visitare il sito Web Samsung Electronics all’indirizzo (www.samsung.com Support). Quindi, inserire o selezionare il modello della Soundbar, selezionare Software & Apps, quindi Downloads. Il nome dell’opzione può variare.
[Nome dispositivo Bluetooth] → “BT”. 4. Riprodurre file musicali dal dispositivo, connesso tramite Bluetooth, tramite la Soundbar. Se il dispositivo non riesce a connettersi • Se la voce relativa alla Soundbar precedentemente connessa (ad es. “[AV] Samsung Soundbar Mxxx M-Series”) compare nell’elenco, cancellatela. • Nel modo “BT”, tenere premuto il tasto (Sorgente) per almeno 5 secondi sul pannello laterale destro della Soundbar o sul telecomando per passare al modo “BT PAIRING”.
08 UTILIZZO DEL TELECOMANDO Come utilizzare il telecomando Consente di accendere e spegnere la Soundbar. Alimentazione È possibile selezionare TREBLE, BASS o AUDIO SYNC. • Per controllare il volume dei suoni alti o bassi, selezionare TREBLE o BASS in Controllo audio Impostazioni audio, quindi regolare il volume tra -6~+6 utilizzando i tasti Su/Giù.
Page 96
• Premendo nuovamente il tasto Bluetooth POWER per disattivare la funzione BT, sul display della Soundbar viene visualizzato “OFF-BLUETOOTH POWER” . • Se è attivo il modo “D.IN” e la Soundbar è connessa a una smart TV Samsung rilasciata dopo il 2017, è possibile controllare la Soundbar tramite il telecomando della TV.
• Dopo aver installato la Soundbar, è possibile regolare il volume della Soundbar utilizzando il telecomando a infrarossi fornito in dotazione con una TV Samsung. (Se non si desidera usufruire di questa opzione, è sufficiente tenere premuto il tasto Surround per 5 secondi quando la Soundbar è accesa. Sul display della Soundbar viene visualizzato il messaggio “OFF-TV REMOTE”...
09 INSTALLAZIONE DEL SUPPORTO A PARETE Precauzioni per l’installazione • Installare solamente su pareti verticali. • Non installare in luoghi caratterizzati da alte temperature e livelli di umidità. • Verificare che la parete sia sufficientemente robusta da sostenere il peso del prodotto. In caso contrario, provvedere a rinforzare la parete o scegliere un altro luogo di installazione.
Page 99
1. Posizionare la Guida per il montaggio a 3. Con la punta di una penna o di una matita parete contro la superficie della parete. temperata forare il centro delle immagini • La Guida per il montaggio a parete deve B-TYPE su ciascuna estremità della guida essere livellata. per contrassegnare i punti destinati ai fori •...
Page 100
6. Utilizzare le due Viti (M4 x L12) per fissare sia • I supporti di sinistra e di destra hanno forme diverse. Assicurarsi di posizionarli il Supporto per montaggio a parete S che D correttamente. alla parte inferiore della Soundbar. Per la massima precisione, assicurarsi di allineare le protuberanze della Soundbar ai fori dei supporti.
Rimozione della Soundbar dalla parete 1. Per separare la Soundbar dal supporto a parete, spingerla nella direzione indicata dalla freccia, inclinarla leggermente verso l’alto, quindi allontanarla dalla parete come illustrato nell’immagine. • Non aggrapparsi all’unità installata ed evitare di urtare o far cadere l’unità. •...
10 RISOLUZIONE DEI PROBLEMI Prima di contattare l’assistenza, controllare quanto segue. L’unità non si accende. Il cavo di alimentazione è collegato alla presa? ; Collegare la spina del cavo di alimentazione alla presa. Una funzione non risponde quando viene premuto il tasto. È presente elettricità statica nell’aria? ; Scollegare la spina del cavo di alimentazione e ricollegarla. Si verificano interruzioni dell’audio nel modo BT. ; Consultare le sezioni relative alla connessione Bluetooth, alle pagine 8 e 12. Non viene riprodotto l’audio.
• L’importo di tali spese amministrative verrà 12 AVVISO DI comunicato all’utente prima di eseguire una visita a domicilio o un eventuale intervento di LICENZA OPEN manutenzione. SOURCE Per inviare richieste e domande sulle open source, contattare Samsung tramite e-mail (oss.request@samsung.com). ITA - 21...
25 mW a 5,725 GHz – 5,825 GHz trasmettitore SRD NOTE • Samsung Electronics Co., Ltd si riserva il diritto di modificare le specifiche senza preavviso. • Peso e dimensioni sono approssimativi. • Per ulteriori informazioni sull’alimentazione e il consumo di energia, vedere l’etichetta applicata al prodotto.
Page 105
Questo prodotto e i relativi accessori elettronici non devono essere smaltiti unitamente ad altri rifiuti commerciali. Per informazioni sugli impegni ambientali assunti da Samsung e gli obblighi normativi specifici del prodotto, ad es. REACH, WEEE, batterie, visitare la pagina http://www.samsung.com/it/aboutsamsung/sustainability/environment/our-commitment/data/...
