Sealey SA59.V3 Instructions

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL
REQUIREMENTS, WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE
PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL
INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
 Follow all workshop safety rules, regulations, and conditions when using wrench.
 WARNING! Disconnect from air supply before changing accessories or servicing.
 Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only.
Non-authorised parts may be dangerous and will invalidate the warranty.
 WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure
that all connections are secure.
 Only use impact sockets which are specifically designed for use with an impact wrench.
 Wear approved safety eye/face shield, ear defenders, and hand protection.
 WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle
brake systems we recommend you wear suitable respiratory protection.
 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
 Keep children and non essential persons away from the working area.
 DO NOT use the wrench for a task it is not designed to perform.
 WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
 DO NOT use wrench unless you have been instructed in its use by a qualified person.
 DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
 DO NOT operate wrench if you are tired, under the influence of alcohol, drugs or intoxicating medication.
 DO NOT carry wrench with your hand on the power trigger in order to avoid unintentional starting.
 DO NOT direct air from the air hose at yourself or others.
 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATIONS
Fitted with smooth performing, power-pin clutch. Suitable for heavy garage and tyre shop use. Features stepless
adjustable air/torque control and reversible action plus spring balance anchorage point.
Drive size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/4"
Working/Max torque . . . . . . . . . . . . . . . . . . . 900/1000lb/ft
Ultimate torque . . . . . . . . . . . . . . . . . . . . . . . . . . 1050lb/ft
Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7500rpm
Air consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 12cfm
Operating pressure. . . . . . . . . . . . . . . . . . . . . . . . . . 90psi
Air inlet size . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1/4"BSP
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0kg
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.52m/s²
Uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.21m/s²
Noise power . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97dB(A)
Noise pressure . . . . . . . . . . . . . . . . . . . . . . . . . . .86dB(A)
© Jack Sealey Limited
Original Language Version

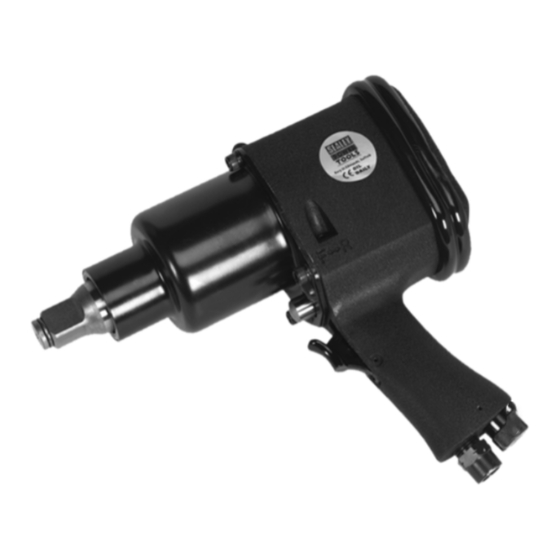

INSTRUCTIONS FOR:
3/4" SQUARE DRIVE
AIR IMPACT WRENCH
SA59.V3
MODEL No:
SA59.V3 Issue: 6(SP) - 14/08/13
