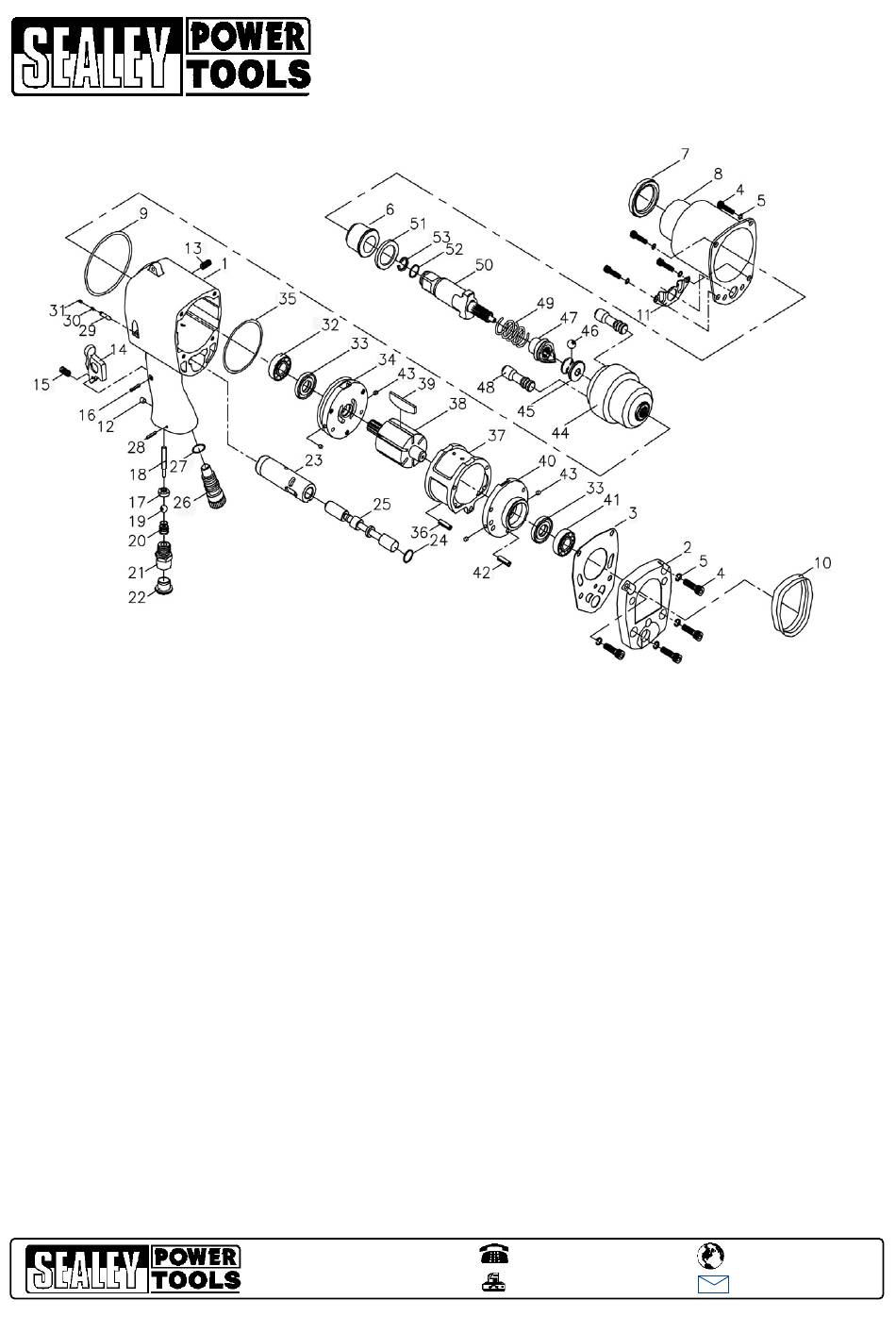

Sealey SA59.V3 Instructions page 5

ITEM PART NO
1 SA59.V3-01
2 SA59.V3-02
3 SA59.V3-03
4 SA59.V3-04
5 SA59.V3-05
6 SA59.V3-06
7 SA59.V3-07
8 SA59.V3-08
9 SA59.V3-09
10 SA59.V3-10
11 SA59.V3-11
12 SA59.V3-12
13 SA59.V3-13
14 SA59.V3-14
15 SA59.V3-15
16 SA59.V3-16
17 SA59.V3-17
18 SA59.V3-18
19 SA59.V3-19
20 SA59.V3-20
21 SA59.V3-21-1
22 SA59.V3-22
23 SA59.V3-23
24 SA59.V3-24
25 SA59.V3-25
26 SA59.V3-26
27 SA59.V3-27
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including
PARTS FOR:
AIR IMPACT WRENCH 3/4"Sq Dr EXTRA HEAVY-DUTY
MODEL:
Issue: 2
Issue Date: 110211
DESCRIPTION
MOTOR HOUSING
REAR COVER
REAR GASKET
SCREW
SPRING WASHER
ANVIL BUSHING
OIL SEAL
CLUTCH HOUSING
O-RING
PROTECTING RUBBER
MUFFLE PLATE
PLUG
SCREW
TRIGGER
SCREW
PIN
VALVE SEAT
THROTTLE PIN
STEEL BALL (7/16")
SPRING
HOSE FITTING (PT-19T)
DUST COVER
VALVE SLEEVE
O-RING
REVERSE VALVE
AIR REGULATOR
O-RING
