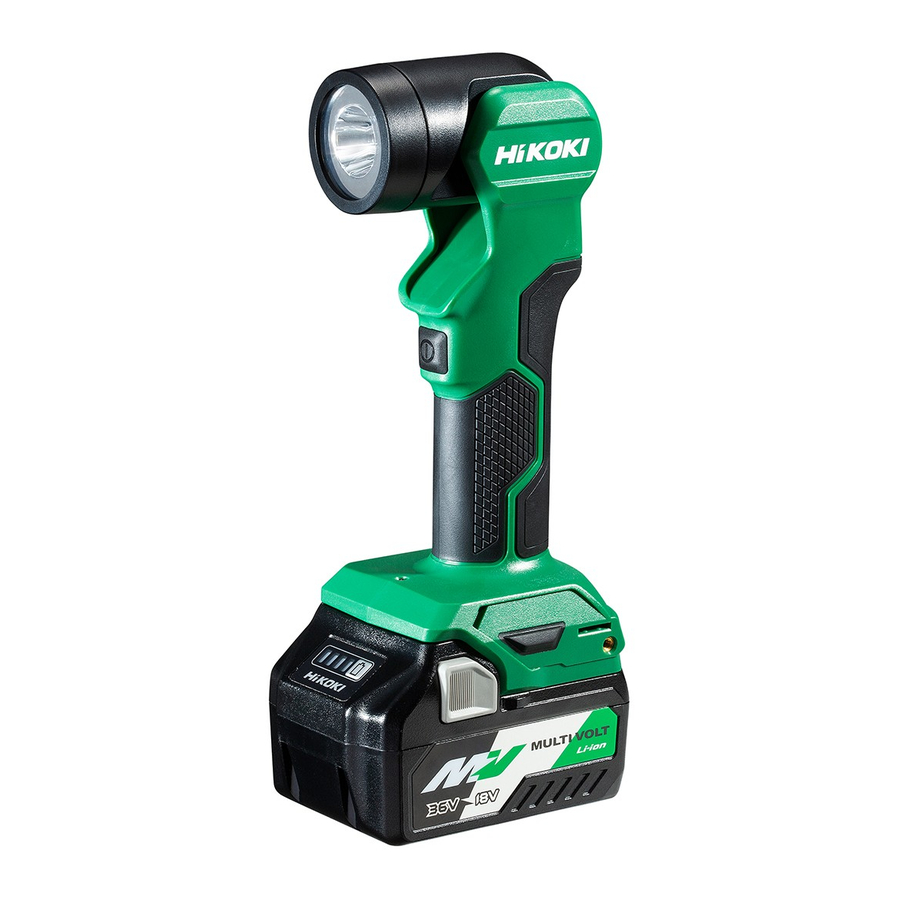

Hikoki UB18DE - Cordless Torchlight Manual

PARTS AND FEATURES

1. Head
2. Lens
3. LED
4. Switch
5. Battery replacement notifi cation lamp (lighting color: red)
6. Battery (sold separately)
7. Latch
8. Handle
9. Hook (sold separately)
10. Band (sold separately)

SPECIFICATIONS

HOW TO USE

1. Battery insert/removal
   Insert the battery in direction A until it clicks. To remove, extract it in direction B while holding down the latch. (Fig. 2)
2. Head angle adjustment
   The angle of the head can be adjusted according to use.
   The head rotates from 0° to 130° and can be fixed in 6 steps. (Fig. 3)
3. Turn on the LED light
   The brightness of the light can be adjusted in two steps.
   Each time you press the switch, it switches between "High", "Low", and "Off ".

When using the unit in a high location, set it down on a stable surface. If the unit falls, it may cause injury.
If the unit falls, it may cause injury.

When hanging the unit in a high location, fix it in place with a band (sold separately) or string. If the unit falls, it may cause injury. (Fig. 4)

If the battery replacement notification lamp flashes when the torchlight is turned on, the battery power is low. Replace or recharge the battery. Failure to do so may result in the light suddenly going off due to the over discharge protection circuit. As discharging shortens the battery life, charge the battery promptly.

STORAGE

• When storing the power tool, be sure to turn OFF the switch and pull out the battery.
• Store the power tool and the battery in a place in which the temperature is less than 40°C and out of reach of children.

• Be careful of electrical shock.
• When not in use or during inspection and maintenance, be sure to turn the switch OFF on the unit, and remove the battery from it.
• Do not cover the torchlight with cloth, cardboards or other materials when the light is on. Doing so may result in fi re.
• Do not stare at the operating light source. The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 1.94 m is not expected. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualifi ed person.

• Do not use the torchlight if the lens is damaged or detached.
• The lens will remain at a high temperature when lit and immediately after use, so do not touch it.
• Be sure to turn the switch OFF when not using.
• Do not expose the torchlight to rain.
• Do not shock or disassemble the torchlight.
• Do not allow the torchlight to contact gasoline, thinner etc.
• Do not leave the torchlight in a car or the like that tends to be exposed to be searching heat of the sun (above 50°C). Otherwise, troubles can result.
• Do not hold the main unit by the bending part. Fingers may get pinched, resulting in injury.
