HIKOKI UB18DAL Instruction Manual

1 2
5
1
6
A
2
B
7
3
8
4
9
9
English
Head
1 燈頭
Switch
2 開關
Handle
3 握柄
Battery
4 電池
Front cover
5 前蓋
Lens
6 鏡片
Bulb
7
燈泡
Remaining battery indicator lamp
8 剩餘電池指示燈
Latch
9 閂鎖
Remove
0 拆卸
Attach
! 安裝
Refl ector
@ 反射鏡
Tiếng Việt
1 Phần đầu ส ว นหั ว ไฟฉาย
Công tắc สวิ ต ช
2
มื อ จั บ
3 Tay cầm
4 Pin แบตเตอรี ่
Nắp đậy phía trước ฝาครอบด า นหน า
5
เลนส
6 Thấu kính
7 Bóng đèn หลอดไฟ
Đèn báo lượng pin còn ไฟแสดงสถานะแบตเตอรี ่ ค งเหลื อ
8
สลั ก
9 Chốt
ติ ด ตั ้ ง
0 Tháo ra
! Lắp lại ถอนการติ ด ตั ้ ง
Gương phản xạ แผ น สะท อ นแสง
@
2 3
@
7
!
0
6
5
中國語 한국어
헤드
스위치
핸들
배터리
앞 커버
렌즈
전구
배터리 잔량 표시 램프
래치
제거
부착
반사 장치
ไทย

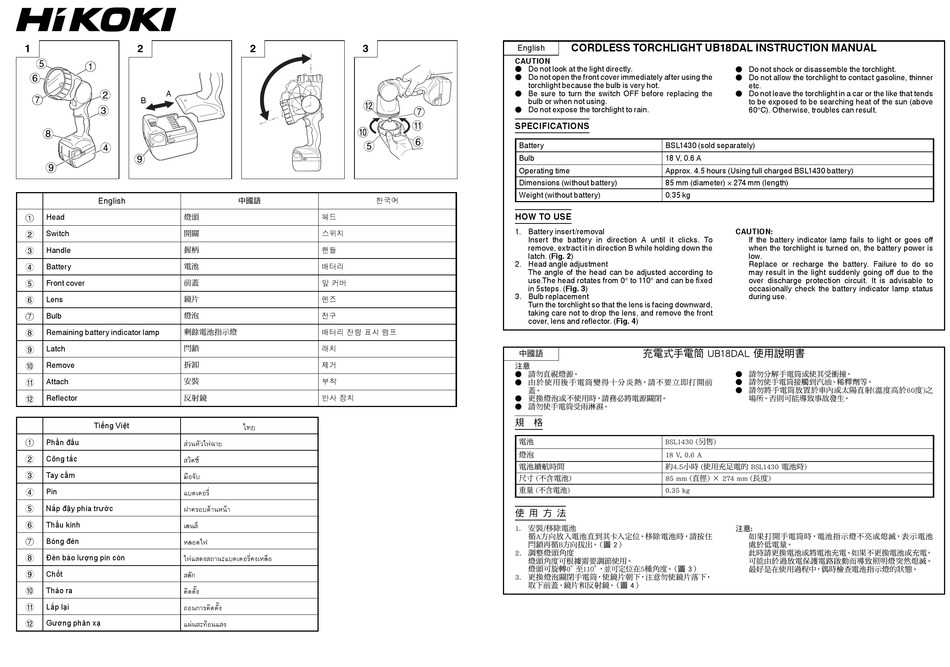

CORDLESS TORCHLIGHT UB18DAL INSTRUCTION MANUAL
English

CAUTION

● Do not look at the light directly.
● Do not open the front cover immediately after using the
torchlight because the bulb is very hot.
● Be sure to turn the switch OFF before replacing the
bulb or when not using.
● Do not expose the torchlight to rain.

SPECIFICATIONS

Battery BSL1430 (sold separately)
Bulb 18 V, 0.6 A
Operating time Approx. 4.5 hours (Using full charged BSL1430 battery)
Dimensions (without battery) 85 mm (diameter) × 274 mm (length)
Weight (without battery) 0.35 kg

HOW TO USE

1. Battery insert/removal

Insert the battery in direction A until it clicks. To
remove, extract it in direction B while holding down the
latch. (Fig. 2)

2. Head angle adjustment

The angle of the head can be adjusted according to
use.The head rotates from 0° to 110° and can be fi xed
in 5steps. (Fig. 3)

3. Bulb replacement

Turn the torchlight so that the lens is facing downward,
taking care not to drop the lens, and remove the front
cover, lens and refl ector. (Fig. 4)
充電式手電筒 UB18DAL 使用說明書
中國語
注意
● 請勿直視燈源。
● 由於使用後手電筒變得十分炎熱，請不要立即打開前
蓋。
● 更換燈泡或不使用時，請務必將電源關閉。
● 請勿使手電筒受雨淋濕。
規 格
電池 BSL1430 (另售)
燈泡 18 V, 0.6 A
電池續航時間 約4.5小時 (使用充足電的 BSL1430 電池時)
尺寸 (不含電池) 85 mm (直徑) × 274 mm (長度)
重量 (不含電池) 0.35 kg
使 用 方 法
1. 安裝/移除電池
循A方向放入電池直到其卡入定位。移除電池時，請按住
閂鎖再循B方向拔出。 （圖 2）
2. 調整燈頭角度
燈頭角度可根據需要調節使用。
燈頭可旋轉0° 至110° ，並可定位在5種角度。 （圖 3）
3. 更換燈泡關閉手電筒，使鏡片朝下 ，注意勿使鏡片落下 ，
取下前蓋、鏡片和反射鏡。 （圖 4）
● Do not shock or disassemble the torchlight.
● Do not allow the torchlight to contact gasoline, thinner
etc.
● Do not leave the torchlight in a car or the like that tends
to be exposed to be searching heat of the sun (above
60°C). Otherwise, troubles can result.
CAUTION:
If the battery indicator lamp fails to light or goes off
when the torchlight is turned on, the battery power is
low.
Replace or recharge the battery. Failure to do so
may result in the light suddenly going off due to the
over discharge protection circuit. It is advisable to
occasionally check the battery indicator lamp status
during use.
● 請勿分解手電筒或使其受衝撞。
● 請勿使手電筒接觸到汽油、稀釋劑等。
● 請勿將手電筒放置於車內或太陽直射(溫度高於60度)之
場所。否則可能導致事故發生。
注意:
如果打開手電筒時，電池指示燈不亮或熄滅，表示電池
處於低電量。
此時請更換電池或將電池充電。如果不更換電池或充電 ，
可能由於過放電保護電路啟動而導致照明燈突然熄滅。
最好是在使用過程中，偶時檢查電池指示燈的狀態。
