- Page 1 4K Video Solutions HDMI SWITCHER User Manual HDSW-2041-4K...
- Page 2 Thank you for choosing Kopul. THe Kopul HDSW-2041-4K HDMI switcher lets you select from four HDMI sources, and output them to a single HD monitor or HDTV set. Compliant with HDCP 1.4, this powered switcher supports 4K and 3D video, and LPCM, Dolby AC-3, DTS 7.1, and DSD audio, as well as audio return.
- Page 3 Precautions • Please read and follow these instructions, and keep this manual in a safe place. • Keep this product away from water and moisture, any flammable gases or liquids, open flames, and heat sources such as radiators or stoves. •...

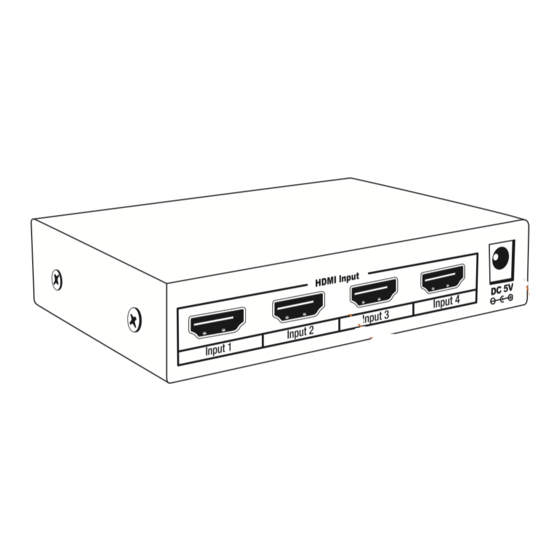

- Page 4 Overview Source selection button Power LED HDMI output HDMI output LED HDMI input LEDs IR port IR Ext IR receiver Also Included • Remote control • CR2025 battery (for remote control) • Power adapter • User manual DC Power Port HDMI inputs...
- Page 5 Plugging In and Setting Up Use the included power adapter to connect the switcher to an AC power source. Use an HDMI cable to connect a signal source to an available HDMI input on the switcher. Repeat this step for your other signal sources. You can connect up to four sources to this switcher.
-
Page 6: Using The Remote Control
Using the Remote Control You can use the included remote control to wirelessly select the signal source of the HDMI switcher. Before using the remote control for the first time, you will have to install the included battery. To install the battery, follow these steps: Previous Next Input... -
Page 7: Specifications
Specifications HDMI inputs HDMI outputs HDMI version High-speed with 3D HDCP version HDCP 1.4 Resolution Up to 4K Color depth Up to 36-bit deep color Audio format LPCM, Dolby AC3, DTS 7.1, DSD Video data transfer rate 6.75 Gbps Operating humidity 5% to 90% RH (no condensation) Operating temperature 5°F to 131°F (-15°C to 55°C) -
Page 8: One-Year Limited Warranty
To obtain warranty coverage, contact the Kopul Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Kopul along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
