BoilerMaker Surface
Assembly, Operation, & Maintenance
Congratulations on your purchase, and thank you for selecting the BoilerMaker Surface™
brew kettle from Blichmann Engineering. We are confident that it, and our suite of
accessories, will provide you years of service.
WARNING:
Sections labeled "Warning" can lead to serious injury or death if not followed. Please thoroughly read these sections
and understand them completely before use. If you any questions, contact your
retailer or Blichmann Engineering (www.BlichmannEngineering.com) before use.
CAUTION:
Sections labeled "Caution" can lead to equipment damage or unsatisfactory performance of the equipment. Please
read these sections thoroughly. If you have any questions, contact your retailer or Blichmann Engineering
(www.BlichmannEngineering.com) before use.
IMPORTANT:
Sections labeled "Important" should specifically be followed to ensure satisfactory results
BoilerMaker Surface™ V1
© Blichmann Engineering, LLC 2023
For replacement parts, visit: blichmannengineering.com/genuine-replacement-parts
IMPORTANT INFORMATION
PLEASE READ THIS MANUAL THOROUGHLY PRIOR TO USE
FOR IMPORTANT SAFETY INFORMATION!

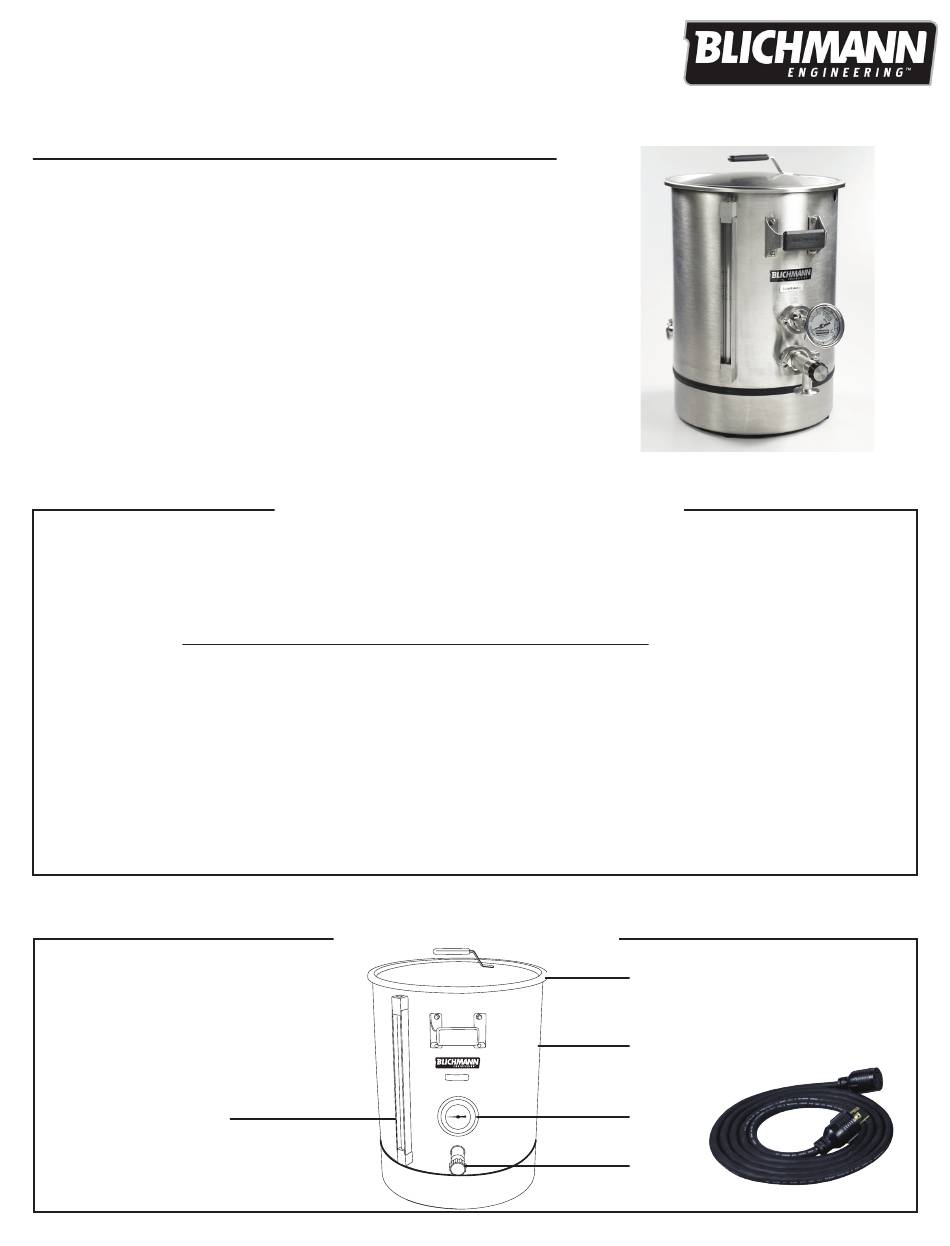

What' s In the Box?
Level Gauge (Optional)
™
Lid
Kettle
Thermometer (Optional)
Valve (Optional)
Power Cable
1
