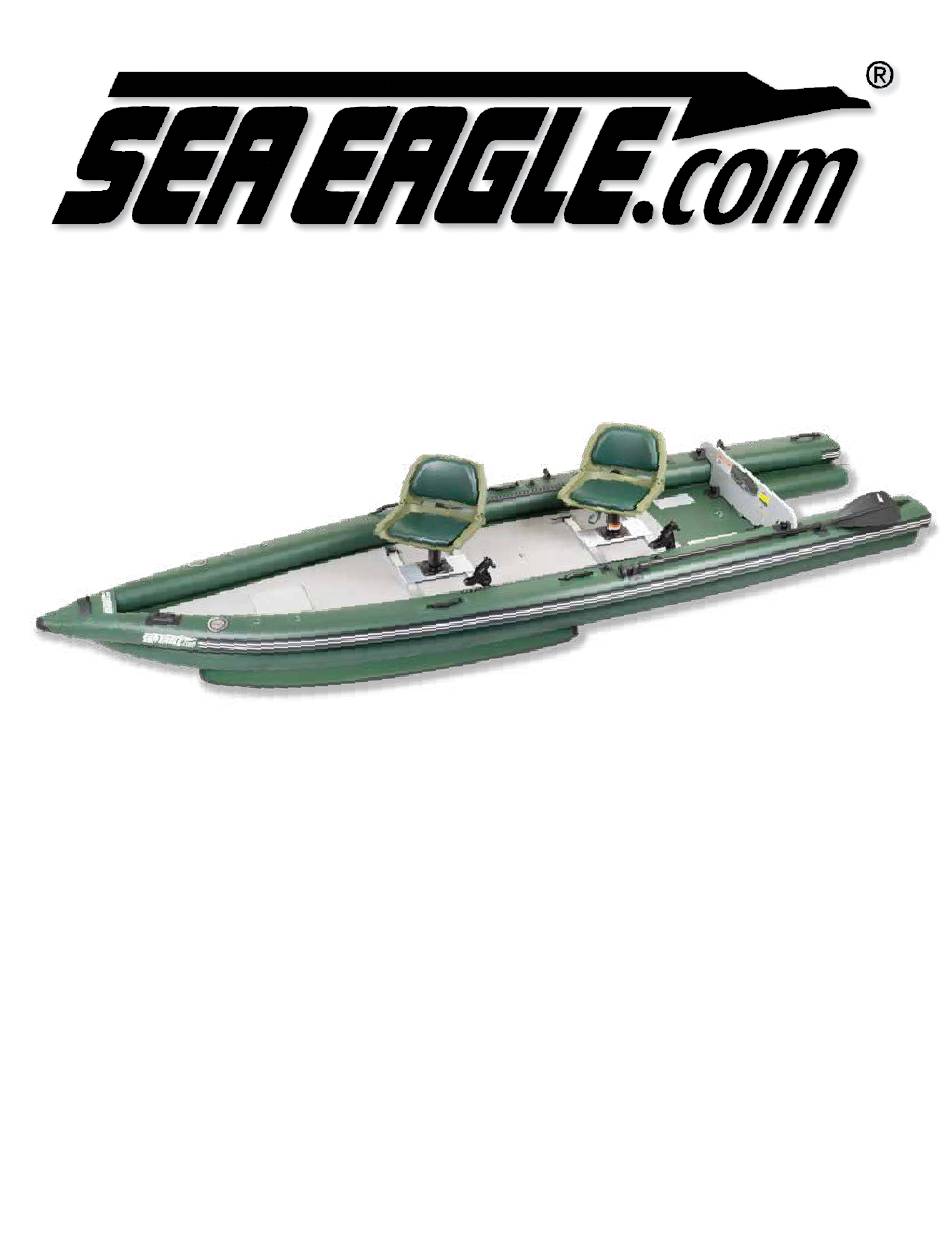

- Page 1 FishSkiff ™ FSK16 Instruction & Owner’s Manual Sea Eagle Boats Inc. 19 N. Columbia Street, Suite 1 Port Jefferson, NY 11777 1-800-748-8066 June 2023...
- Page 2 Feel free to give us a call and we will be happy to talk with you! Our business hours are Monday to Friday from 9AM to 5PM, EST. Sea Eagle Boats Inc. 19 N. Columbia Street, Suite 1...
- Page 3 SAFETY It is not possible to fully cover boating safety in this owner’s manual. We recommend boating safety education though reading, videos and mentorship from experienced boaters. Boating Safety Course In the United States, the Coast Guard is the authority on boating operation and safety. Many state and international requirements go beyond Coast Guard requirements including boating safety course and certification requirements.
- Page 4 SAFETY Motor Safety and Reboarding DANGER Warning: Spinning propellers and carbon monoxide produced by gas engines can cause serious injury or death. Carbon Monoxide (CO) gas can cause brain damage or death. • Do not approach a running motor from the water. Engine exhaust contains odorless If you or your passenger falls overboard, do not attempt to reboard in the motor mount area.
-
Page 5: Working Pressure
CONSTRUCTION & WORKING PRESSURE Drop Stitch Construction: The boat is made of drop-stitch material. Dozens of threads per square inch hold the top and bottom layers together and keep the flat-boat shape. Without drop stitch, inflatables are tube shaped. Working Pressure: In this instruction manual, we use the term “working pressure”... - Page 6 OPERATING YOUR SEA EAGLE SPEEDING and UNBALANCED LOAD: Caution: Avoid collision or grounding. Slow down to prevent injury or death. Going fast when weather conditions such as fog or rain reduces visibility which can result in collision with boats, bulkheads docks, buoys, etc, or the boat could run aground on shallows.
- Page 7 Compliance Sea Eagle boats comply with ABYC Standards, US Coast Guard standards for recreational boats and labeling for compliance with California proposition 65. Invasive Species Control: If the boat is to be used in multiple waterways, drain the boat, clean boat and trailer, rinse, and dry between uses.
-
Page 8: Motor Selection
Motor Selection Planing Hull Motor Selection Gas Powered Motors and High Performance Electric Motors The FishSkiff16 maximum motor rating is 10 horsepower (hp). A motor with the maximum horsepower rating will push the FishSkiff16 onto a plane under most circumstances. Factors that determine whether a boat will plane include weight of passengers and gear, weight distribution, wind direction and buoyancy (saltwater is more buoyant than freshwater). -
Page 9: Battery Selection
OPERATING YOUR SEA EAGLE Battery Selection A wide range of acceptable batteries are available. The battery must be 12 volt (unless otherwise stated by the manufacturer), deep cycle, and between about 20 and 120 Amp Hours (Ah). Amp hours is a very important number, if the battery you are looking at doesn’t clearly state the amp hours, it may not be suitable. -
Page 10: Assembly & Inflation
FishSkiff 16| SETUP: VALVES & PUMP Using the Double Action Hand Pump: The pump hose has a Recessed Valve Adapter at Using the Recessed one end. When ready to Valves: inflate the boat, push adapter firmly into valve Remove the cap to access the valve stem. - Page 11 FishSkiff 16| ASSEMBLY & INFLATION Motor Mount Transom Board Insert transom board into Assemble and install the motormount grommets. Swivel Seat Frame. This is Plate with ring faces a one-time assembly. The forward. assembled frame can be If needed, use a...
- Page 12 FishSkiff 16| ASSEMBLY & INFLATION Pull strap tight. Continue securing bar with remain- Attach pedestal to seat ing straps. Check that all swivel with the short ½” are tight. screws and locking nuts. Hand tighten nuts until all Caution: Straps screws have been inserted.
- Page 13 FishSkiff 16| ASSEMBLY & INFLATION Adjust to your height. Use the 7/8” screws to Stand paddle on ground secure the mounting base with arm up. Handle should to the pad. Orient the base fit in palm of hand (about so arrow points inboard.
- Page 14 FishSkiff 16| ASSEMBLY & INFLATION Fold the canvas in half so An anchor mount is the shiny side is facing out suggested for the bow and the bars are lying on pad. top of each other. Note: Scotty Anchor Lock...
- Page 15 FishSkiff 16| DEFLATION & FOLDING To deflate, push down on the valve stem and quarter turn it to the right. The stem will stay in the When folded, the down position, allowing extensions should fall onto the air to escape.
-
Page 16: Cleaning & Protecting
FishSkiff 16| CLEANING & PROTECTING FishSkiff 16| TROUBLE SHOOTING Dry after each use to avoid mold. While washing or rinsing: close the valve and twist the cap on so water cannot not enter the chamber. Sea Eagles can be cleaned... - Page 17 FishSkiff 16| TROUBLESHOOTING FishSkiff 16| REPAIRS Step #4. SOAPY WATER TEST Even though Sea Eagles are very rugged and tough, you may You’ll need a bucket and liquid dish washing soap. Fill the still experience the occasional puncture. Fortunately most bucket with clear water, and add a good squirt of soap (couple repairs are fairly easy and only take a few minutes.
- Page 18 FishSkiff 16| REPAIRS Apply glue to the patch Patching and boat. Allow to dry 15 The most common minutes. Glue must be dry repairs are a puncture or to the touch. If glue layer small cut. A penny size is thin, apply second coat, patch is sufficient for allow to dry 15 minutes.
-
Page 19: Optional Accessories
FishSkiff 16| OPTIONAL ACCESSORIES Sea Eagle offers a large array of accessories for your FishSkiff 16. Solar Panels (OPTIONAL) Power your electric motor battery with the sun! 50W, Safety Devices- 110W and 138W solar (OPTIONAL) panels available. U.S.C.G. approved. Life...
