USER GUIDE - ORICOM MFMB01 BRACKET

Installation of Flush Mount Bracket

1) Cut a hole into the location of where the radio is to be flush mount installed,
using the template downloadable on the supplied QR codes.

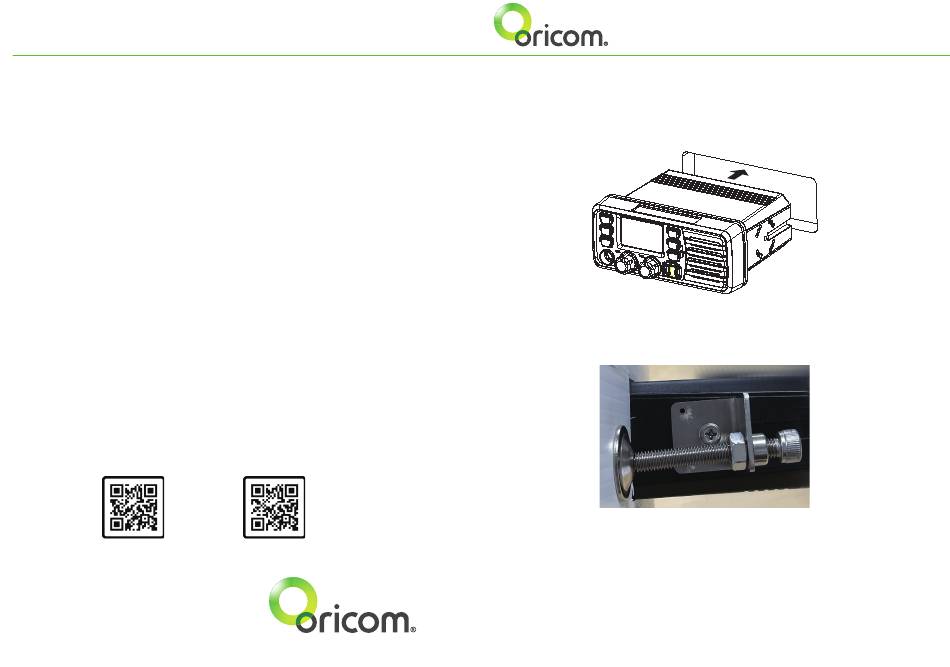

2) Slide the transceiver through the cutout, as the drawing shows below.
3) On the rear side with access to the back of the transceiver, affix the MFMB01
brackets to the left and right side of the transceiver with the supplied Philips
head screws, in the direction the image below shows.
Note: Cap
screw should
be at the rear
of the radio.
4) Once secured to the transceiver, tighten the cap screws until firmly flush
mounted. Securely tighten with Hex key (not supplied).
5) Tighten locking nut to secure.
Images are for illustration purposes only.
