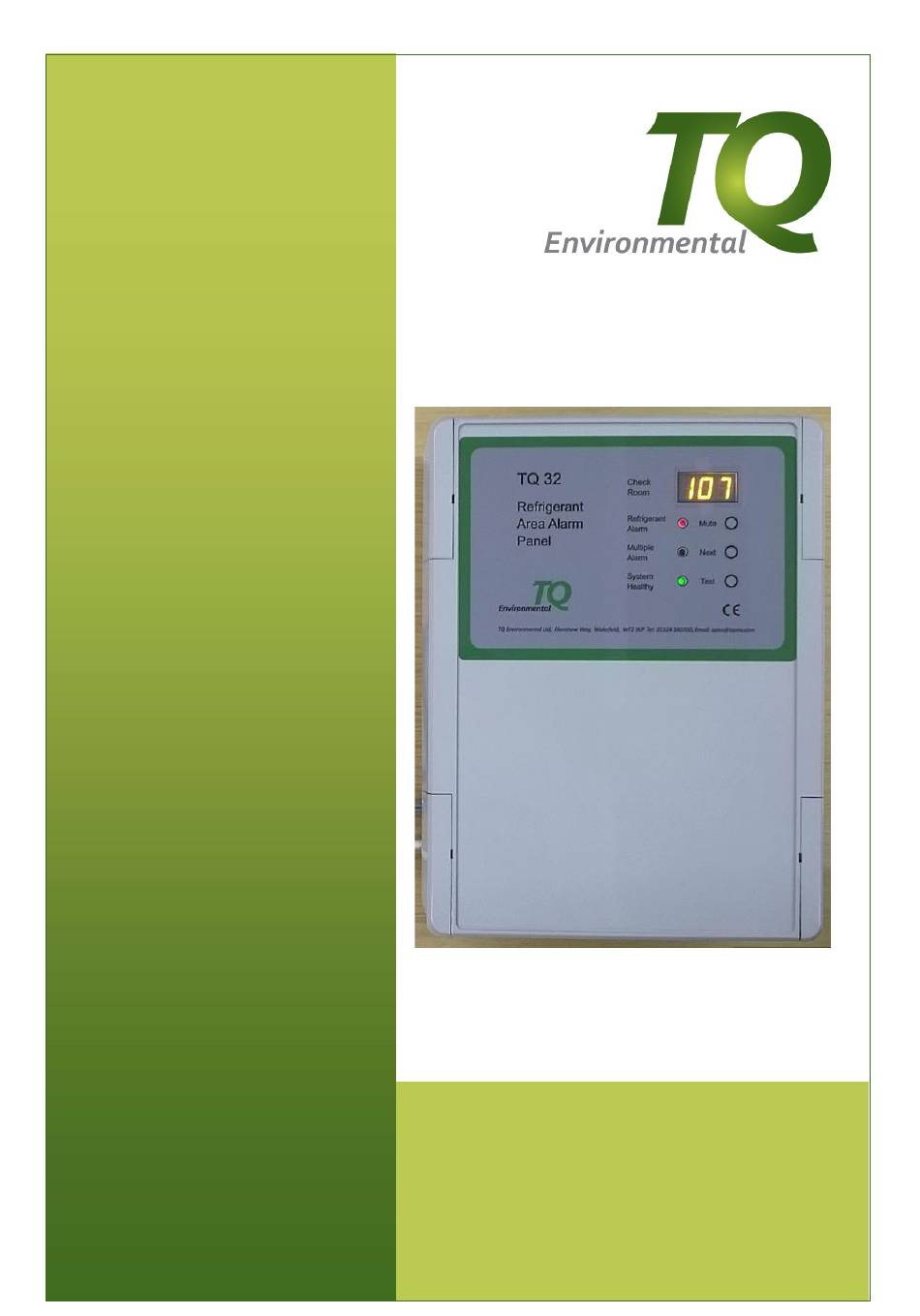

- Page 1 TQ32 AREA ALARM PANEL OPERATING MANUAL TQ Environmental Limited Tel: +44 (0) 1924 271013 Silkwood Court Fax: +44 (0) 1924 262420 Wakefield WF5 9TP Email: sales@tqenv.com United Kingdom Web: www.tqenv.com...
-
Page 2: Table Of Contents
FIGURE 10 - INTERNET PROTOCOL DIALOG BOX ........................13 FIGURE 11 - LOGIN DIALOG BOX ............................. 14 FIGURE 12 - TQ32 AREA ALARM PANEL HOME PAGE ......................15 FIGURE 13 - CONFIG LOGIN DIALOG BOX ..........................16 FIGURE 14 - TQ32 AREA ALARM PANEL SETUP PAGE ......................16 FIGURE 15 - NETWORK SETTINGS PAGE .......................... -
Page 3: Proprietary
TQ Environmental Limited does not assume any liability arising out of the application or any use of any product or circuit described herein; neither does it convey license under its patent rights or the rights of others. -
Page 4: Safety Warnings
TQ Environmental Limited SAFETY WARNINGS FOR SAFETY REASONS, THE TQ32 AREA ALARM PANEL MUST BE INSTALLED, OPERATED AND SERVICED BY QUALIFIED PERSONNEL ONLY. READ AND UNDERSTAND THIS INSTRUCTION MANUAL COMPLETELY BEFORE OPERATING THE TQ32. THE OPERATION DESCRIBED IN THIS DOCUMENT IS THE INTENDED USE OF THE TQ32. -
Page 5: Introduction
The TQ32 Area Alarm Panel will provide a local visual and audible alarm indication when any of its connected room sensors have entered the alarm state. It can also provide outputs for remote monitoring, reception or security stations for example as well as providing a plant trip signal. -
Page 6: Indication Led's And Push Buttons
1.1 Indication LED’s and Push Buttons The LED's on the TQ32 Area Alarm Panel are used to indicate the status of the Unit. There are three LED’s and a 3 Digit 7-segment LED Display situated on the front of the Panel. -
Page 7: Installation
Each TQ31 Room sensor to be connected to the mains supply via electrical back box. 240v ac 0.1A load Each TQ31 Room sensor to be connected to TQ32 Area Alarm Panel via 2 core, 0.5mm cable. 24v DC, alarm indication only, 0.1A DC TQ32 Area Alarm Panels. -
Page 8: Figure 3 - Panel Mounting
TQ Environmental Limited Each TQ32 Alarm panel needs to be securely wall mounted, ideally in a central location. The TQ32 alarm panel will need to be connected to the mains supply. Each room being monitored will need a TQ31 Refrigerant Room sensor fitted. These can be mounted to 50mm deep, double back boxes and connected to the mains supply. -
Page 9: Power Connection
Figure 4 - Power Connection 2.1 Sensor Connections Each room sensor needs to be connected to the TQ32 Alarm Panel with a 2 core cable as shown below. The input board terminals will accept wire sizes up to 0.5mm Sensor inputs are connected in vertical pairs left to right along the TQ32 input boards, as shown. -
Page 10: Relay Connections
TQ Environmental Limited 2.3 Relay Connections Five Common Alarm Relay contacts are available for remote indication on Connectors CONN14 to CONN18. (Normally Closed) contact is on Pin 1, (Common) contact is on Pin 2, and (Normally Open) contact is on Pin 3. -
Page 11: Ethernet And Comms Connections
TQ Environmental Limited 2.4 Ethernet and Comms Connections The connections for Ethernet, RS485 MODBUS and TQ35 alarm panels can be found on the pcb mounted on the rear of the enclosure door. See below for a typical connection schematic. Please see Section 3. Initial setup, for instruction to connect to the web page. -
Page 12: Figure 8 - Network Connection Dialog Box
The TQ32 Area Alarm Panel can be configured via a laptop connected to the Ethernet connection of the TQ32. This can either be a “crossover” Ethernet cable or via an Ethernet hub. The default TQ32 IP address is 192.168.34.150. To avoid conflict on the network, the laptop should have a different IP address to that of the TQ32 Area Alarm Panel. -
Page 13: Figure 9 - Network Connection Properties Dialog Box
OK. The laptop will then be able to communicate with the TQ32 Area Alarm Panel Web Server and allow it to be configured. Figure 10 - Internet Protocol Dialog Box... -
Page 14: Configuration Web
To view these web pages, a web browser such as Mozilla Firefox, Chrome or Internet Explorer is required. The TQ32 Area Alarm Panel is supplied with a factory set IP address of 192.168.34.150. To view the default web page in the TQ32 Area Alarm Panel, start the web browser and type 192.168.34.150 into the address line of the browser window. -
Page 15: Figure 12 - Tq32 Area Alarm Panel Home Page
TQ Environmental Limited Figure 12 - TQ32 Area Alarm Panel Home Page If no web page is displayed, go back to testing the network connection to the TQ32 Area Alarm Panel by using the ping command in the Command Prompt desktop app. -
Page 16: Figure 13 - Config Login Dialog Box
Figure 13 - Config Login Dialog Box The default username is config and the default password is 1234. The Setup Page of the TQ32 Area Alarm Panel will now be displayed in the browser window as shown in Figure 14 below:... -
Page 17: Network Page
The subnet mask is used to inform the TQ32 Area Alarm Panel that it must send its replies to the gateway if the IP address of the PC is on a different network. When the subnet mask is set to “0.0.0.0” then it is effectively disabled and the Default Gateway is not used. - Page 18 TQ Environmental Limited Primary/Secondary DNS Server: The Domain Name System (DNS) is a hierarchical distributed naming system for computers, services, or any resource connected to the internet or private network. It translates domain names meaningful to humans into the numerical identifiers associated with networking equipment for the purpose of locating and addressing these devices worldwide.
-
Page 19: System Page
Figure 16. Figure 16 - admin Password Page The user must click the Change button to send the values to the TQ32 Area Alarm Panel. Clicking the Back button will take the user back to the Setup Page. -
Page 20: Statistics Page
TQ Environmental Limited 3.4 Statistics Page This web page shows the network connection status of the TQ32 Area Alarm Panel. This may be useful for network diagnostic purposes. The web page shown in Figure 18 is displayed when the link on the Setup page is clicked. -
Page 21: Locations Page
1-247. Figure 19 - Locations Page The user must click the Change button to send the values to the TQ32 Area Alarm Panel. Clicking the Back button will take the user back to the Setup Page. After making changes to locations 33 – 64 and clicking the Change button to confirm. It is also advisable to check the locations 1 –... -
Page 22: Relays Page
This web page will allow the configuration of all the common relays to be either normally energised or normally de-energised. The user must click the Change button to send the values to the TQ32 Area Alarm Panel. Clicking the Back button will take the user back to the Setup Page. -
Page 23: Figure 21 - Relay Locations Page
Figure 21. Figure 21 - Relay Locations Page The user must click the Change button to send the values to the TQ32 Area Alarm Panel. Clicking the Back button will take the user back to the Setup Page. -
Page 24: Rs485 Serial Comms Page
Figure 22 - RS485 Serial Comms Page The user must click the Change button to send the values to the TQ32 Area Alarm Panel. Clicking on the Home icon will return the user to the Home Page or clicking on the Back button to take the user back to the Setup Page. -
Page 25: Operation
The TQ32 Area Alarm Panel will then continuously monitor all of the Alarm Inputs. When the Alarm Inputs to the TQ32 Area Alarm Panel are in the non-alarm condition, the 3 Digit 7-segment LED Display will flash three dots continuously. -
Page 26: Modbus
TQ Environmental Limited 5.0 Modbus The TQ32 Area Alarm Panel has an RS485 Serial Modbus interface on COM1. The default communication settings are 19200 Baud Rate, 8 Data Bits, Even Parity and 1 Stop Bit. These can be changed in the Setup Page by clicking on the RS485 Serial Comms link. The following tables show the Modbus Register Addresses for the TQ32 Area Alarm Panel. -
Page 27: Technical Specification
TQ Environmental Limited 6.0 Technical Specification Height Width Depth Dimensions 364 mm 284mm 120mm Weight Approx. 1Kg Mounting Wall Mounted Temperature Range -10 ºC / +40 ºC Non-Condensing Humidity Up to 95% Non-Condensing Number of Alarm Inputs 32 Standard, 64 Expandable... - Page 28 TQ Environmental Limited TQ Environmental Ltd. Silkwood Court Wakefield West Yorkshire WF5 9TP United Kingdom Page 28 of 28 14638PH6...
