Summary of Contents for Romy L6

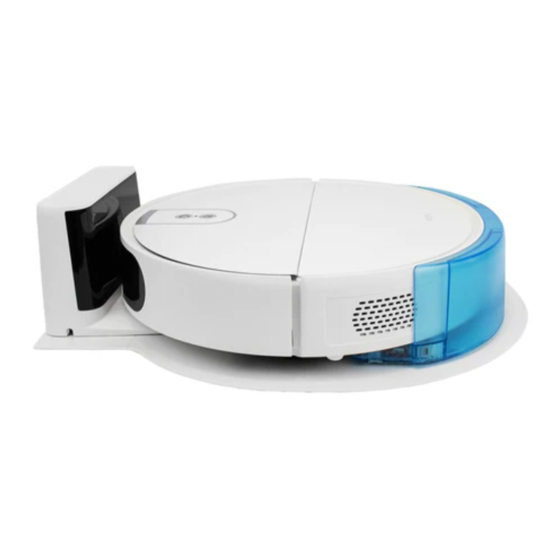

- Page 1 User manual for your robotic vacuum cleaner...
-
Page 3: Table Of Contents
Content 1. What's inside ................. 4 2. Get to know your robot ..............6 3. Product overview ................. 8 Dust bin ..................10 Water tank ................... 11 4. First steps ..................12 5. Connect the app ................15 6. Map your home in the app ............16 7. -
Page 4: What's Inside
User manual – Romy robot 1. What's inside... - Page 5 Model – Romy L6 Robot Water tank Docking station 2 Mop cloths with charging cable Water shell Cleaning tool...
-
Page 6: Get To Know Your Robot
User manual – Romy robot 2. Get to know your Romy 1. HOME button 2. WiFi status 3. Power button... - Page 7 Model – Romy L6 Power button Press briefly to power on, start, pause or resume cleaning. Press for 3 seconds to power off the robot. WiFi status White: connected. White blinking (fast): in pairing mode. White blinking (slow): connecting. Red blinking: connection failed or lost.
-
Page 8: Product Overview
User manual – Romy robot 3. Product overview 1. Docking Station 2. Docking station cable 3. Vacuum cleaner lid 4. HOME button 5. POWER button 6. Sensor cover... - Page 9 Model – Romy L6 11 12 7. Cleaning tool 12. Main brush cover 8. Dust bin with filter 13. Drop sensors 9. Dust bag (optional) 14. Charging contacts 10. Main wheel 15. Front wheel 11. Main brush 16. Side brush, right...
-
Page 10: Dust Bin
User manual – Romy robot Dust bin 17. Dust bin opening 18. Dust filter... -
Page 11: Water Tank
Model – Romy L6 Water tank 19. Water tank release mechanism 20. Mop cloth 21. Water inlet... -
Page 12: First Steps
User manual – Romy robot 4. First steps 1. Set up the docking station Place the docking station against the wall on a hard floor in a place with good Wi-Fi coverage. Use the cable to plug it in. Note: •... - Page 13 Model – Romy L6 3. Charge the robot Place the robot in front of the dock- ing station in about 0.5m distance and briefly press Home button. Note: • You will hear an acoustic signal when the robot has docked succesfully.
- Page 14 Do you want to add a no-go area here to avoid it during cleaning? Add Areas No-go area Hotspot Spot clean Set up reminders Reminder It seems you haven't cleaned your kitchen for a while. Do you want Romy to clean it now?
-
Page 15: Connect The App
Model – Romy L6 5. Connect the app App name: romy robot Google Play and the Google Play logo are trademarks of Google LLC. Apple and App Store are registered trademarks of Apple Inc. -
Page 16: Map Your Home In The App
User manual – Romy robot 6. Map your home in the app 1. Explore your home Get the robot know your home and start cleaning more intuitively by simply selecting rooms from the app. Note: • Make sure your docking station is set up correctly. - Page 17 Model – Romy L6 3. Remove obstacles Make sure you pick up things like cables off the froor, so the robot doesn't get stuck. This includes yourself and your pets. 4. Time to explore! Let your robot explore and make itself at home.
-
Page 19: Hey Siri
Maximize ROMY's autonomy by using Siri Shortcuts ''Hey Siri, tell Romy to clean my kitchen'' ''Ok! I told Romy to clean the kitchen. It will take approx. 10 minutes'' Siri Shortcuts and all related logos are trademarks of Apple.com, Inc. or its affiliates... -
Page 21: Use Alexa
Model – Romy L6 8. Use Alexa Maximize ROMY's autonomy by paring it with Amazon Alexa! ''Alexa, tell Romy Robot there is a mess in the kitchen'' ''Mess happens. I told Romy to clean the kitchen. It will take around 20 minutes' Skill name: ROMY robot Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. -
Page 22: Wet Cleaning
User manual – Romy robot 9. Wet cleaning Note: • Do not put the water tank at the dish washer. • Do not put the water tank completely under water. • Use only cold water to refill the water tank. - Page 23 Model – Romy L6 Model – Romy L6 3. Attach the mop cloth Slide the mop cloth along the at- tachment slot and firmly stick it to the velcro. Note: • The robot will wet the mop cloth automatically right before starting the wet clean run.
- Page 24 User manual – Romy robot...
-
Page 25: Maintenance
Model – Romy L6 10. Maintenance Clean the dust bin, filter and brushes regularly to make sure your robot performs at its best. Optional... -
Page 26: Emptying The Dust Bin
User manual – Romy robot Emptying the dust bin 1. Remove the dust bin Open the lid and remove the dust bin by releasing the clips on the sides. 2. Empty the dust bin Open the dust bin lid and empty... -
Page 27: Cleaning The Filter
Model – Romy L6 Cleaning the filter 3. Remove the filter Remove the filter by pulling at the latch. 4. Clean the filter Tap the filter against your trash container to shake off debris. Reinstall the filter and close the cover. -
Page 28: Replacing The Dust Bag
User manual – Romy robot Replacing the dust bag Note: • Only for Romy L6 Animal version. 1. Remove the dust bag Open the lid and remove carefully the dust bag. 2. Replace the dust bag Replace the dust bag with a fresh... - Page 29 Model – Romy L6...
-
Page 30: Cleaning The Main Brush
User manual – Romy robot Cleaning the main brush 1. Remove the main brush cove Flip the robot and press the two tabs of the main brush cover to release it. Take out the main brush. 2. Clean the main brush Remove and clean the bearings on either side of the main brush. -
Page 31: Cleaning The Side Brushes
Model – Romy L6 Cleaning the side brush 3. Remove the side brush Flip the robot and unscrew the side brushes using screwdriver. 4. Clean the side brush Carefully remove any string or hair wrapped around the brush. Reinstall the side brush. -
Page 32: Cleaning The Sensors
User manual – Romy robot Cleaning the sensors 1. Clean the front sensor Wipe the front sensor cover with a clean cloth to prevent scratches. Note: • Clean all sensors regularly to ensure the best results. 2. Clean the drop sensors... -
Page 34: Troubleshooting
User manual – Romy robot 11. Troubleshooting Error Power and home button blinking (red): error, the robot can't start cleaning Check the app to find out what the issue is and have a look at the list to help the robot. - Page 35 Model – Romy L6 Problem Description Solution Software Internal software error Report the problem in the problem app. Try to power off and on the robot by pressing the POWER button. Side brush A side brush is jammed or Unscrew the side brush...
- Page 36 User manual – Romy robot Problem Description Solution Battery at a The battery is too low and Manually place the robot on the docking station to critically low the robot cannot return level to the docking station for charge it. If the robot is not...
-
Page 37: Customer Service
Model – Romy L6 12. Customer service Haven't found the answer to your questions? Check the FAQs in the app or get in touch with us! support@robart.cc... - Page 38 www.romyrobot.eu...
