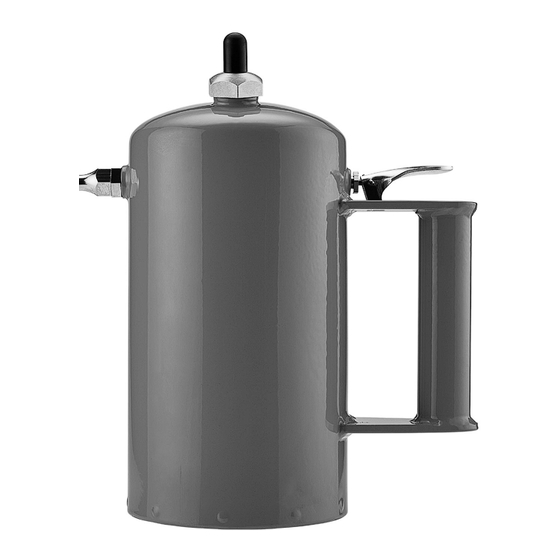

Maddox ML11 Owner's Manual

Refillable pressurized sprayer
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference.
Refillable
Pressurized Sprayer
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
22f
ML11
59544

Advertisement

Table of Contents
loading

Summary of Contents for Maddox ML11

  • Page 1 Write the product’s serial number in the back of the manual (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. ML11 Refillable Pressurized Sprayer Visit our website at: http://www.harborfreight.com...

  • Page 2: Important Safety Information

    WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 3 1. Use only with non flammable cleaners, 7. This product is not a toy. Do not allow degreasers, penetrating oils, solvents, children to play with or near this item. and lubricants. Not for use with 8. Use as intended only. water, or water based materials.

  • Page 4: Specifications

    Specifications Maximum Air Pressure 200 PSI Operating Pressure 80-150 PSI Capacity 32 oz. Components and Controls Filler Valve Filler Cap Trigger Valve Seat Pin Stream Adapter Nozzle Bottle Page 4 For technical questions, please call 1-888-866-5797. Item 59544...
  • Page 5 Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this document including all text under subheadings therein before set up or use of this product. Inspect Sprayer before use, looking for damaged, loose, and missing parts. If any problems are found, do not use Sprayer until repaired.

  • Page 6: Troubleshooting

    Inspection, Maintenance, and Cleaning Procedures not specifically explained in this manual must be performed only by a qualified technician. Do not use damaged equipment. If abnormal noise, vibration, or leaking air occurs, have the problem corrected before further use. Follow all guidelines regarding chemicals sprayed, including MSDS instructions and EPA regulations. Release pressure in Bottle by depressing Trigger or Valve Stem.
  • Page 7 Parts List and Diagram Part Description Part Description Pin Stream Nozzle Filler Valve Spray Nozzle Filler Cap Head Washer Cap Gasket Valve Seat Adaptor Bottle Inner Washer Sealing Washer Valve Guiding Nut Valve Spring Trigger Cotter Pin Item 59544 For technical questions, please call 1-888-866-5797. Page 7...

  • Page 8: Please Read The Following Carefully

    PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS DOCUMENT AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
