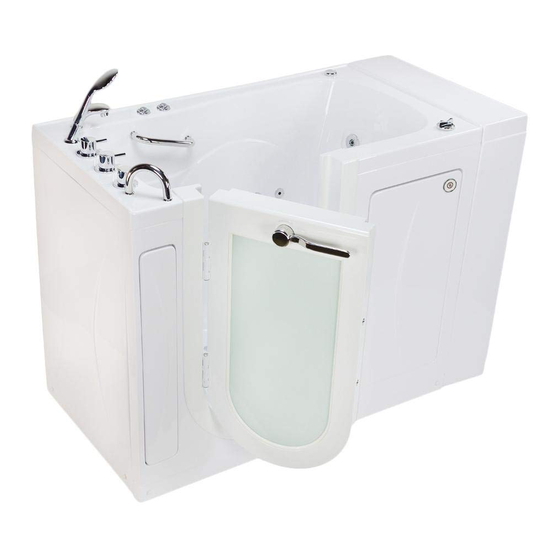

ELLA ACRYLIC WALK IN BATHTUBS
OWNERS MANUAL
Monaco
Malibu
Lounger
Mobile
Front Entry
OA3252 L / OA3252 R
OA3052 L / OA3052 R
OA2660 L / OA2660 R
OA2645 L / OA2645 R
OAF3240 L / OAF3240 R
Single Drain
Single Drain
TransferXXXL
Transfer60
Transfer32
Transfer30
Transfer26
OLA3655 L / OLA3655 R
OLA3060 L / OLA3060 R
OLA3252 L / OLA3252 R
OLA3052 L / OLA3052 R
OLA2652 L / OLA2652 R
Advertisement
Table of Contents
Related Manuals for Ella's Bubbles Ella Monaco OA3252 L
Summary of Contents for Ella's Bubbles Ella Monaco OA3252 L

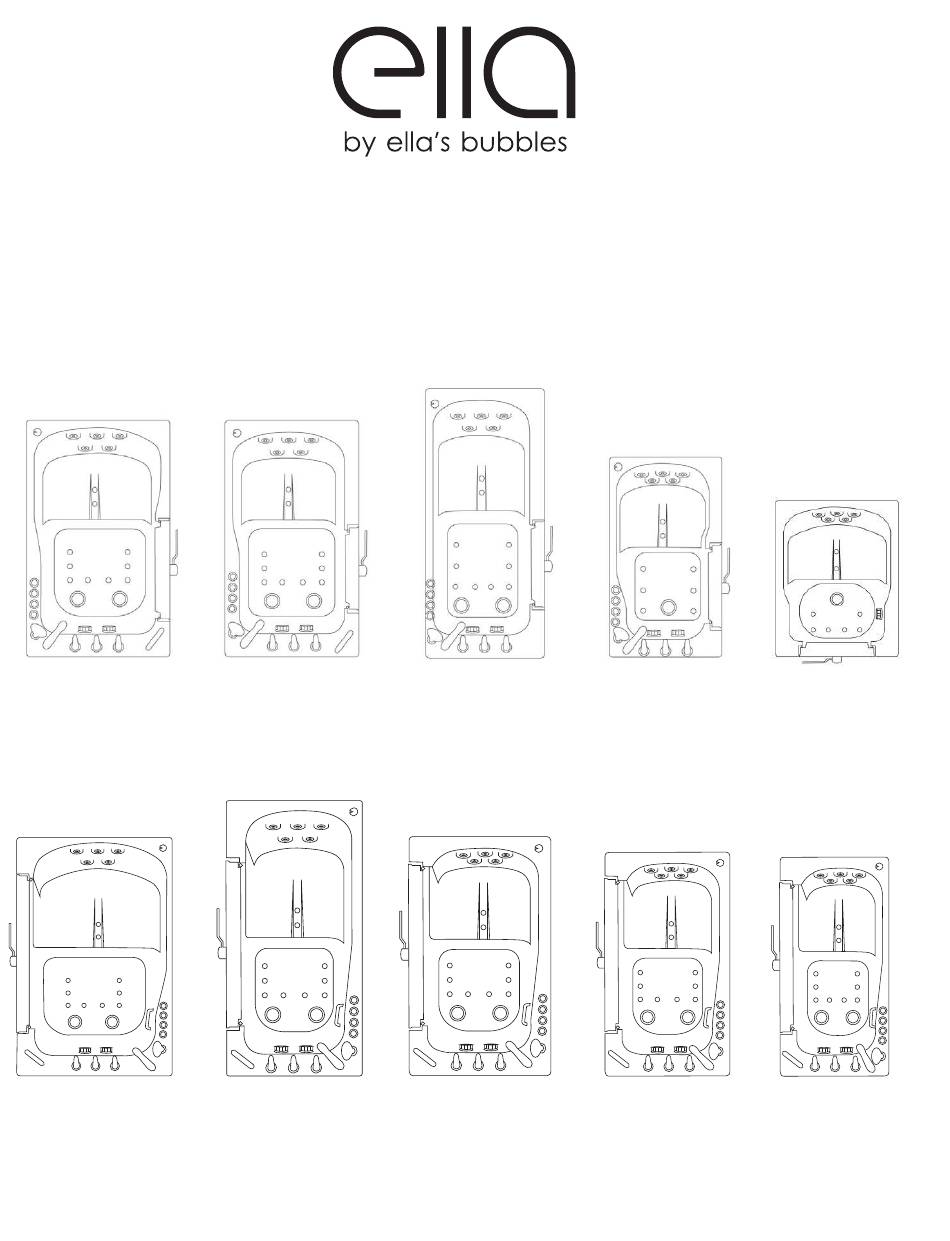

- Page 1 ELLA ACRYLIC WALK IN BATHTUBS OWNERS MANUAL Monaco Malibu Lounger Mobile Front Entry OA3252 L / OA3252 R OA3052 L / OA3052 R OA2660 L / OA2660 R OA2645 L / OA2645 R OAF3240 L / OAF3240 R Single Drain Single Drain TransferXXXL Transfer60...
- Page 2 Table of Contents IMPORTANT Warranty Activation Form MUST be completed for both the Owner and Installer to validate the warranty. Failure to complete both pages will void the warranty on this bathtub. Completed Ella Warranty Activation Forms can be emailed to warranty@ellasbubbles.com, faxed to 312.666.3551, OR mailed to 2101 S.
-
Page 3: Unpacking And Inspecting
Unpacking and Inspecting Inspect the carton for damage: Take a picture if possible. CAREFULLY RECORD ALL PERCEIVED DAMAGE DO NOT LIFT THE TUB BY THE PLUMBING. Doing so can result in leaks, for which the installer is responsible. All Walk-In Tubs are water tested before they leave our factory and the bath tub you have purchased has passed... -
Page 4: Warnings And Labels
Warnings and Labels Your Ella's bathtub comes with several warning label stickers throughout and are as follows: Details on Page 12 Push Control Acrylic Shell Back nut Air hose Details on Page 3 www.ellasbubbles.com Page 2... - Page 5 Warnings and Labels Continued Backnut MUST be securely tightened. Failure to do so will cause loosening over time resulting in it coming apart and falling down the drain. Drain closed Drain open completely all the way Drain must open completely to drain properly and close completely to avoid unnecessary drainage.
- Page 6 Moving your Ella Walk in Bath www.ellasbubbles.com Page 4...
-
Page 7: Important Safety Instructions
Important Safety Instructions WARNING: ***Read through the entire manual completely before beginning installation.*** Contract a licensed plumber and electrician for installation. Be sure you and your contractor are aware and follow all local plumbing and electrical codes. Your Ella Walk in Bath is not intended for outdoor use. - Page 8 Important Safety Instructions WARNING: ***USE TUB ONLY AS INTENDED! FAILURE TO DO SO CAN LEAD TO INJURY OR DEATH*** WARNING CORRECT BATHER SHOULD ONLY SIT AS SHOWN IN FIGURE TO THE LEFT. SIT FULLY IN SEAT WITH BACK ON THE BACKREST.
- Page 9 Required Steps Prior to Installation Protecting the Bath Cover and protect the bath shell and fixtures from scratches or other damages during the installation and tests. Remove the access panels when moving the Walk in Bath and always lift the bathtub from the frame (Page #2). Electrical The unit MUST be connected to a circuit protected by a ground fault circuit interrupter (GFCI) provided and installed by a licensed electrician and tested periodically (refer to...
- Page 10 Drain and Plumbing Positioning Options www.ellasbubbles.com Page 8...
- Page 11 Drain and Plumbing Positioning Options www.ellasbubbles.com Page 9...
- Page 12 Drain and Plumbing Positioning Options The drain positioning should be determined by a licensed plumber. The pictures above only show a few of the many possible options for drainage setup. For faster drainage all 4 ports may be connected to house drain. www.ellasbubbles.com Page 10...
- Page 13 Drain and Plumbing Positioning Options The drain positioning should be determined by a licensed plumber. The pictures above only show a few of the many possible options for drainage setup. For faster drainage all 4 ports may be connected to house drain. www.ellasbubbles.com Page 11...
- Page 14 Door and Frame Adjustments Prepare the sub-floor for the drain and ensure that the area is level. The supporting sub-floor must be able to support the total weight of the bathtub, bather and water and must meet local construction code requirements. Use a level and make sure that the sub-floor below the tub is leveled.
- Page 15 Door and Frame Adjustments Your walk in bathtub has been tested and leveled properly before leaving our facility. Our walk in bathtubs have been set on a perfectly level surface to ensure no leaks and proper door closing. It is up to your installer to test and make any adjustments necessary to ensure that all leveling legs support the tub frame and that the door is aligned correctly to prevent any leaks.
- Page 16 Door and Frame Adjustments WARNING: Failure to level the tub correctly WILL RESULT IN MISALIGNMENT! The drawings below illustrate some examples of what types of frame warping will occur if the legs are not level with the floor. www.ellasbubbles.com Page 14...
- Page 17 Door Handle Instructions Door Stopper The door handle must be placed correctly so the handle stopper stops the door handle and protects the door mechanism from breaking. There must not be a gap between the door and door handle if it is installed correctly. Make sure to tighten the screw with a wrench.
- Page 18 Installation of Deck Mount Grab Bar Parts List: Chrome grab bar x (1) Escutcheon x (2) Rubber washers x (4) Metal washers x (2) Bolts x (2) WARNING Grab Bar GRAB BAR WASHERS MUST BE INSTALLED TO PREVENT CRACKING OF THE ACRYLIC SHELL, FAILURE TO DO SO WILL VOID THE WARRANTY Escutcheon *THE LARGER METAL WASHER IS THE MOST...
- Page 19 Installing Extension Kits Installing Extension Kits Deluxe Dimensions: 5"W x 29 1/2"L x 37"H L" Stainless Steel Brackets ......Qty (3) Elite Dimensions: 7"W x 29 3/4"L x 37 3/4"H L" Acrylic Bracket ........Qty (1) Royal Dimensions: 7"W x 31 3/4"L x 37 3/4"H 1"...
-
Page 20: Finishing Installation
Finishing Installation After all of the water and electrical testing is completed and all fixtures are checked, the tub can be installed to the surrounding wall or walls. Ella Walk in Baths come with low rise tile flange which allows for two or one wall installations. The extension panel of the bathtub can be installed as needed for 60"... -
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Recommended Acrylic Cleaners DO NOT USE the following on your ACRYLIC Bath System. The use of the Use only cleaning products whose labels state that they are SAFE for ACRYLIC. following chemicals will cause a dull Always test products on a small are of skirt surface or chemical cracks. - Page 22 May not be applicable to your specific package Refer to your package diagrams for more information Additional Operating Instructions by the Original Part Manufacturer TOUCHSTONE Dual Load Controller CIMC-296-01-01-01 (15 Amp) CIMC-296-01-02-01 (20 Amp) Configuration #1 Single Speed Pump Variable Speed Blower Owner’s Manual Page 1...
-
Page 23: Important Safety Instructions
May not be applicable to your specific package Refer to your package diagrams for more information Important Safety Instructions PLEASE READ CAREFULL Y PRIOR TO Troubleshooting and Servicing Electrical Equipment Definitions: WARNING (May cause serious injuries or death) CAUTION (May cause property damage) For information on NuWhirl Instructions, see: www.nuwhirl.com/docs/product-instructions.html When installing and using this electrical equipment, basic safety... - Page 24 May not be applicable to your specific package Refer to your package diagrams for more information TOUCHSTONE Dual Load Bath Control System Configuration #1 Owner’s Manual Your whirlpool bathtub has been equipped with TOUCHSTONE Electronic Controls to provide features that allow you to customize your bathing experience to your individual preference.
- Page 25 May not be applicable to your specific package Refer to your package diagrams for more information Air Button Operating Instructions Single Speed Pump (Water): The Whirlpool Water System is activated by pressing the Water Button. Ensure first that there is sufficient water in the Tub to at Water least cover the Jets.
- Page 26 May not be applicable to your specific package Refer to your package diagrams for more information TOUCHSTONE Dual Load Bath Control System Configuration #1 Owner’s Manual Electronic Keypad Operating Instructions Keypad Backlighting: When in Standby, the keys are not lighted. When in use, Blue keys indicate "No Water Detected", and Green keys indicate "Water Is Detected".
- Page 27 May not be applicable to your specific package Refer to your package diagrams for more information TOUCHSTONE Dual Load Control System Installation Instructions System Identification: CIMC-296-01-[01 or 02]-01 Configuration #1 01 Configuration #1 System features: Air Buttons or Electronic Keypad, Independent Timers, Single Air Buttons or Electronic Keypad, Independent Timers, Single-Speed Pump, Variable-Speed Blower, Multi-Color LED Tub Lights, Conductive Water Detect.
- Page 28 May not be applicable to your specific package Refer to your package diagrams for more information TOUCHSTONE Surface Heater Controller System For controller CIHC-300-01-01-01 Installation & Operating Instruction Manual...
- Page 29 May not be applicable to your specific package Refer to your package diagrams for more information Important Safety Instructions PLEASE READ CAREFULL Y PRIOR TO Troubleshooting and Servicing Electrical Equipment Definitions: WARNING (May cause serious injuries or death) CAUTION (May cause property damage) For information on NuWhirl Instructions, see: www.nuwhirl.com/docs/product-instructions.html When installing and using this electrical equipment, basic safety...
-
Page 30: System Features
May not be applicable to your specific package Refer to your package diagrams for more information TOUCHSTONE Surface Heater Control System Installation Instructions Your whirlpool bathtub has been equipped with TOUCHSTONE Electronic Controls to provide features that allow you to customize your bathing experience to your individual preference. - Page 31 May not be applicable to your specific package Refer to your package diagrams for more information Electronic Keypad Your Surface Heater System is controlled by a single electronic keypad power switch or combination heater and light keypad. When LED is lit the Surface Heaters are running.
- Page 32 May not be applicable to your specific package Refer to your package diagrams for more information TOUCHSTONE Surface Heater Control System Installation Instructions Operating Instructions Surface Heaters It is recommended to turn the Surface Heater ON 5-10 minutes prior to entering the tub.
-
Page 33: Controller Installation
May not be applicable to your specific package Refer to your package diagrams for more information System Identification: CIHC-300-01-01-01 System features: Electronic Keypad, Timer, Surface Heaters, Optional Multi-color LED Lights Controller Installation To Surface Heaters 24VDCPower Connectors Power In 120V 15A GFCI Surface Heater Max 96 Watts Heater... - Page 34 May not be applicable to your specific package Refer to your package diagrams for more information TOUCHSTONE Surface Heater Control System Installation Instructions Connect cables to ports as shown. Installation may not require the use of all connection ports. CAUTION: Failure to connect cables to ports as shown, may damage the control box and its components and void any warranties.
- Page 35 May not be applicable to your specific package Refer to your package diagrams for more information TOUCHSTONE TOUCHSTONE Air-Activated Controller Air-Activated Controller Owners Manual Owners Manual Product Illustration: Product Illustration: NEMA NEMA Socket NEMA Socket NEMA Plug Plug Air Tube Air Tube Nipple Nipple...
- Page 36 Ella's Bubbles offers cleaning service for the cartridges for a nominal fee: labor + shipping. The cartridge cleaning is done at Ella's Bubbles facility, or it can be done by the contractor hired by customer. The removal and cleaning of TCV should...
- Page 37 Warranty Activation Form 1 of 2 INSTALLER'S INFORMATION _______________________________________________________________________________________ Name _______________________________________________________________________________________ Address City State _________________________________ _________________________________________________ Telephone Email _________________________________ _________________________________________________ Date Signature Upon completing the installation of an Ella Walk In Bath, the following Warranty Activation Form must be completed, signed by both the customer and installer, and returned to Ella’s Bubbles, LLC.
- Page 38 Copy of sales receipt must be included with warranty activation forms. To activate manufacturer's warranty, please complete both pages and use one of the options below to submit. Via mail: Ella's Bubbles, LLC. Warranty Department 2101 S. Carpenter St., Chicago, IL 60608 Via fax: 1-312-666-3551 Via email: warranty@ellasbubbles.com...
