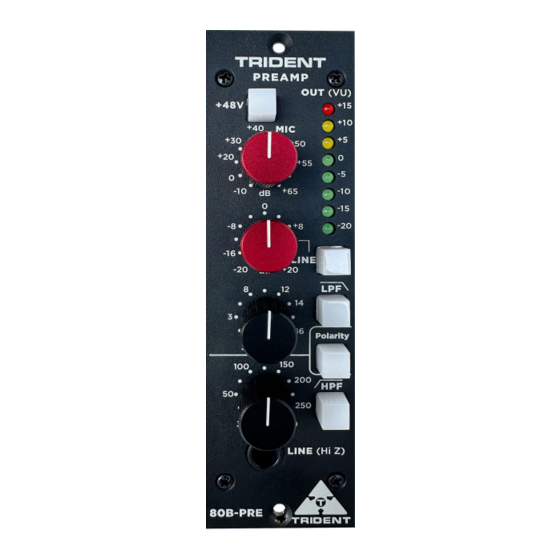

Trident 80B MIC PRE 500 Series User Manual

Table of Contents

Download this manual

L E G E N D A R Y MIC PRE AMPLIFIER

80B MIC PRE 500 Series User Manual

Table of Contents

Need help?

Do you have a question about the 80B MIC PRE 500 Series and is the answer not in the manual?

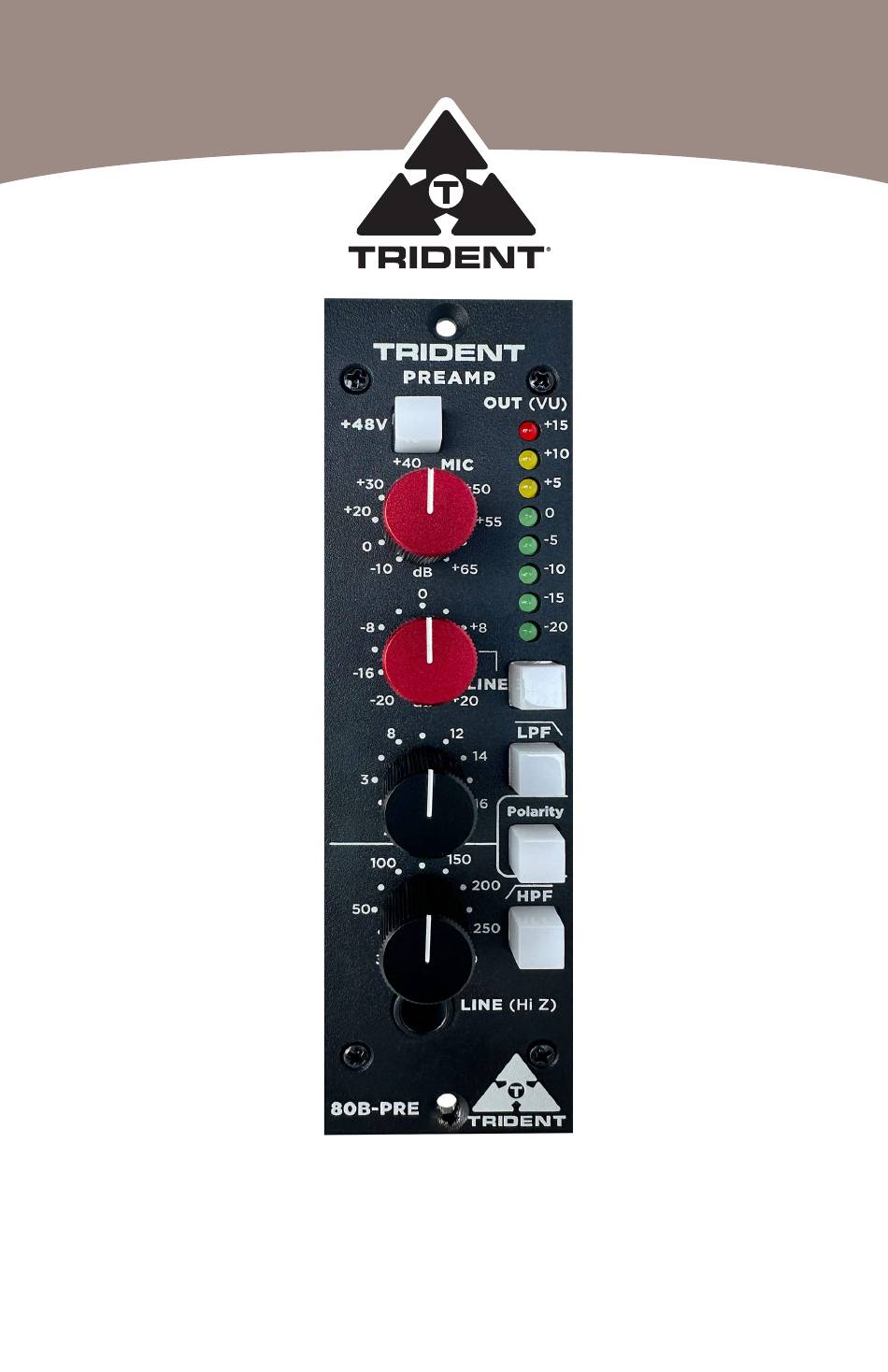

Page 1 L E G E N D A R Y MIC PRE AMPLIFIER 80B MIC PRE 500 Series User Manual...
Page 2 The combination of high gain with low noise is particularly useful when working with ribbon mi- crophones as most models have an inherently low output level. Trident Audio Developments | 80B EQ 500 Series User Manual...
Page 3 As with the microphone input, careful monitoring of the OUT (VU) meter whilst setting the line input level will help to avoid any overloading and clipping of the signal. Trident Audio Developments | 80B EQ 500 Series User Manual...
Page 4 12dBu per octave. By switching the switching the LPF in and out, a comparison can be made between filtered and non-filtered audio signal. Trident Audio Developments | 80B EQ 500 Series User Manual...
Page 5 Distortion: > 0.018% 22Hz to 22KHz (+15dBu Output) >0.008% (Filtered 400Hz to 22KHz) Noise: >-82dBu (Filtered 400Hz to 22KHz) Low Pass Filter: Variable 30Hz to 350Hz, -12db/Octave High Pass Filter: Variable 2KHz to 20KHz, -12db/Octave Trident Audio Developments | 80B EQ 500 Series User Manual...
Page 6 Trident recommends regular service of the product and in particular; regular service of the mechanical components such as potentiometers and faders.
Page 8 US Service & Sales 1845 W. 169th Street Gardena, CA 90247 at +1 (310) 323-9050 or sales@tridentaudiodevelopments.com 80B EQ 500 Series is a Registered Trademark of Trident Audio Developments Features and specifications are subject to change without notice...
