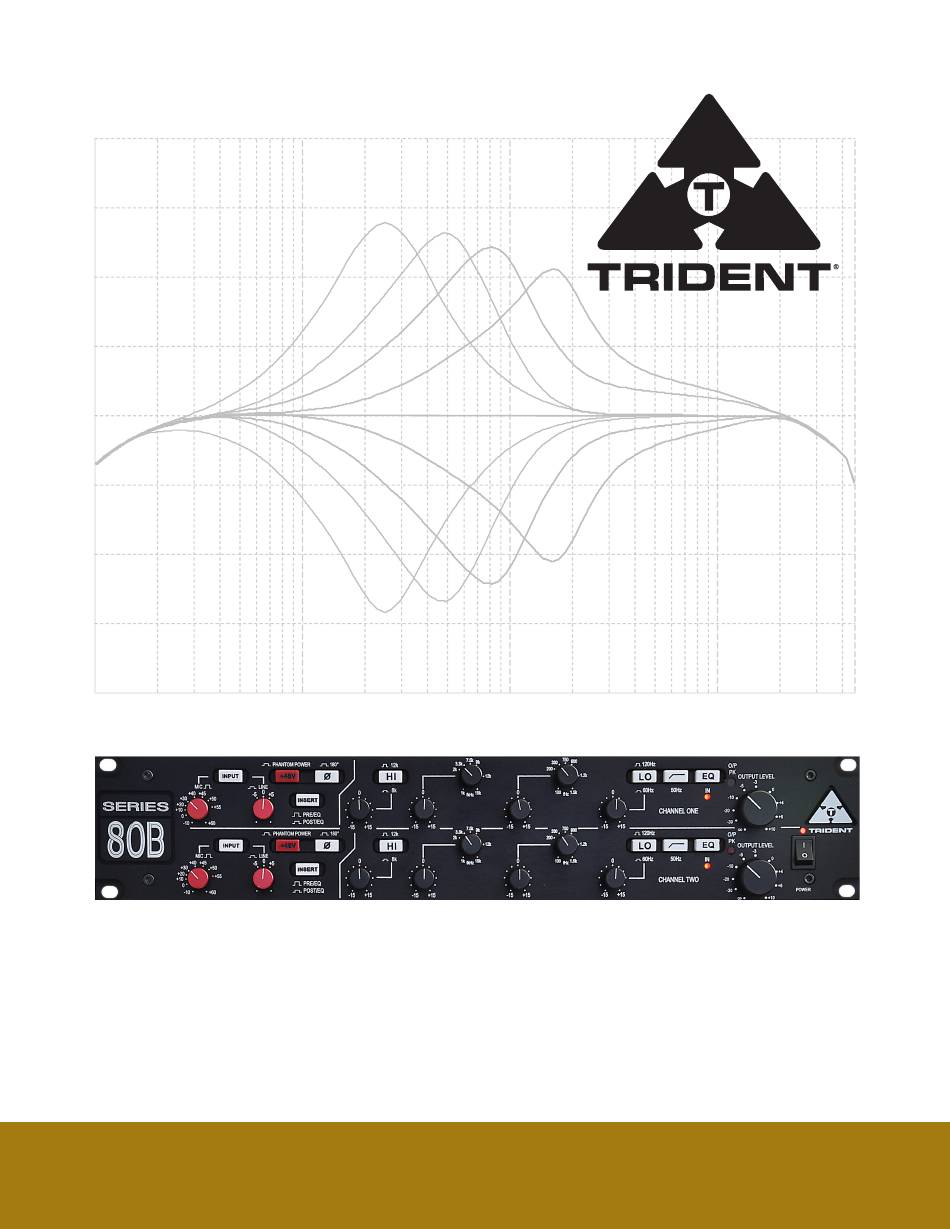

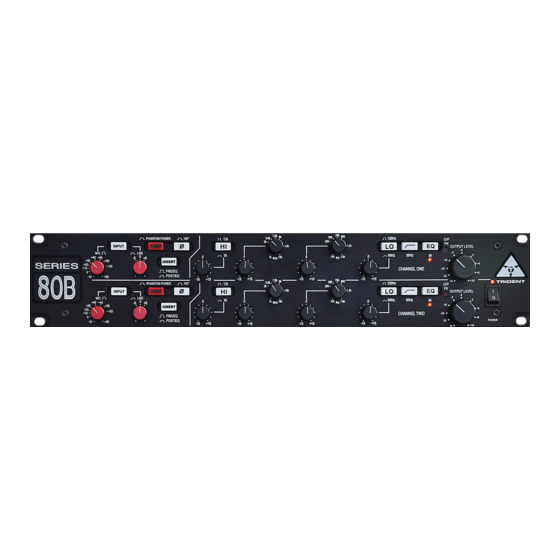

- Page 1 DUAL DISCRETE MICROPHONE PREAMPLIFIER AND EQUALISER DUAL MICROPHONE PREAMPLIFIER AND EQUALISER SERIES 80B ® ® AUDIO DEVELOPMENTS Dual Channel Strip ® OWNERS HANDBOOK OWNERS MANUAL...
-
Page 3: Table Of Contents
Trident Series 80B Table of Contents Series 80B Overview............2 Product Description............3 Connecting the Unit............3 Input Section..............4 Equaliser................5 Insert Bypass and Insert Pre / Post......5 Trouble Shooting..............6 Technical Specifications..........7 Notes..................8 Safety Information............9 Compliance and WEEE Policy........10 Warranty................11 Trident Series 80B Owners Manual... -
Page 4: Series 80B Overview
More recently they have been used to record artists such as Radiohead and Pavarotti. The Trident Audio Developments Series 80B rack unit brings with it a historic pedigree and is offered at a price that is now affordable to all studios and home recordists. -
Page 5: Product Description
® In keeping with the functionality of the Trident Series 80 console, each ‘channel strip’ of this rack unit features insert points, phase reverse (which operates on both microphone and line inputs) and an output level control with peak signal indication. -
Page 6: Input Section
Trident Series 80B Description Input Section The input section of the Series 80B rack is designed specifically for professional audio applications. It consists of a very high quality transformer-coupled microphone amplifier and a separate electronically balanced levels is accommodated, adjustment of the gain is extremely smooth, particularly at high signal a wide range of input lev- els with a frequency response that extends to above 40kHz. -
Page 7: Equaliser
Description Equalizer The Series 80B® rack incorporates a classic four band equaliser which is identical to that employed in the Trident Series 80 console. It consists of frequency-switchable high and low pass shelving sections, coupled with two swept low and high mid range bands and a switchable 50Hz, 12dB per octave filter. Both swept midranges have been carefully chosen for maximum effect on music programme and a good degree of overlap is provided. -
Page 8: Trouble Shooting
Trident Series 80B Trouble Shooting No Power Ensure the unit is selected for the correct mains voltage via the selector incorporated in the mains inlet socket on the back of the unit. Check the fuse (also in the mains inlet socket) if the unit has been powered with the wrong voltage. -
Page 9: Technical Specifications
Trident Series 80B Technical Specifications TECHNICAL SPECIFICATIONS Input Impedance: Microphone: 1.2k ohm transformer balanced Line: 15k ohm electronically balanced Output Impedance: <100 ohm electronically balanced Gain: Microphone: -15dB to +60dB Line: -15dB to +10dB Noise: Microphone: <-128dBu ref 150 ohm (20Hz-20kHz) Line: <-85dBu (EQ In, 20Hz-20kHz) -
Page 10: Notes
Trident Series 80B Notes Notes Trident Series 80B Owners Manual... -
Page 11: Safety Information
Trident Series 80B Safety Information Important Safety Information Important Safety Instructions 1. Read these instructions. CAUTION 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, 5. Do not use this apparatus near water. Do not expose to DO NOT REMOVE COVER. -
Page 12: Compliance And Weee Policy
Trident Series 80B Compliance & WEEE Policy Statement of RoHS Compliance Statement of WEEE Policy PMI Audio Group manufactures complete electronic PMI Audio Group manufactures many complete products which are covered by the European Union’s electronic products which are covered by the European “Removal of Hazardous Substances”... -
Page 13: Warranty
Trident Audio product, and without the registration along with a copy of the original sales receipt as proof of the original date of of the Trident Audio product within 30 days of purchase by mail, or online. It purchase. - Page 14 1845 W 169th Street, Gardena, CA 90247 USA tel 310.323.9050 info@trident-audio.com tridentaudiodevelopments.com TRIDENT AUDIO DEVELOPMENTS®, TRIDENT AUDIO®, TRIDENT SERIES® ® ® TRIDENT AUDIO DEVELOPMENTS , TRIDENT AUDIO , and A RANGE® are all registered trademarks of PMI Audio Group ®...
