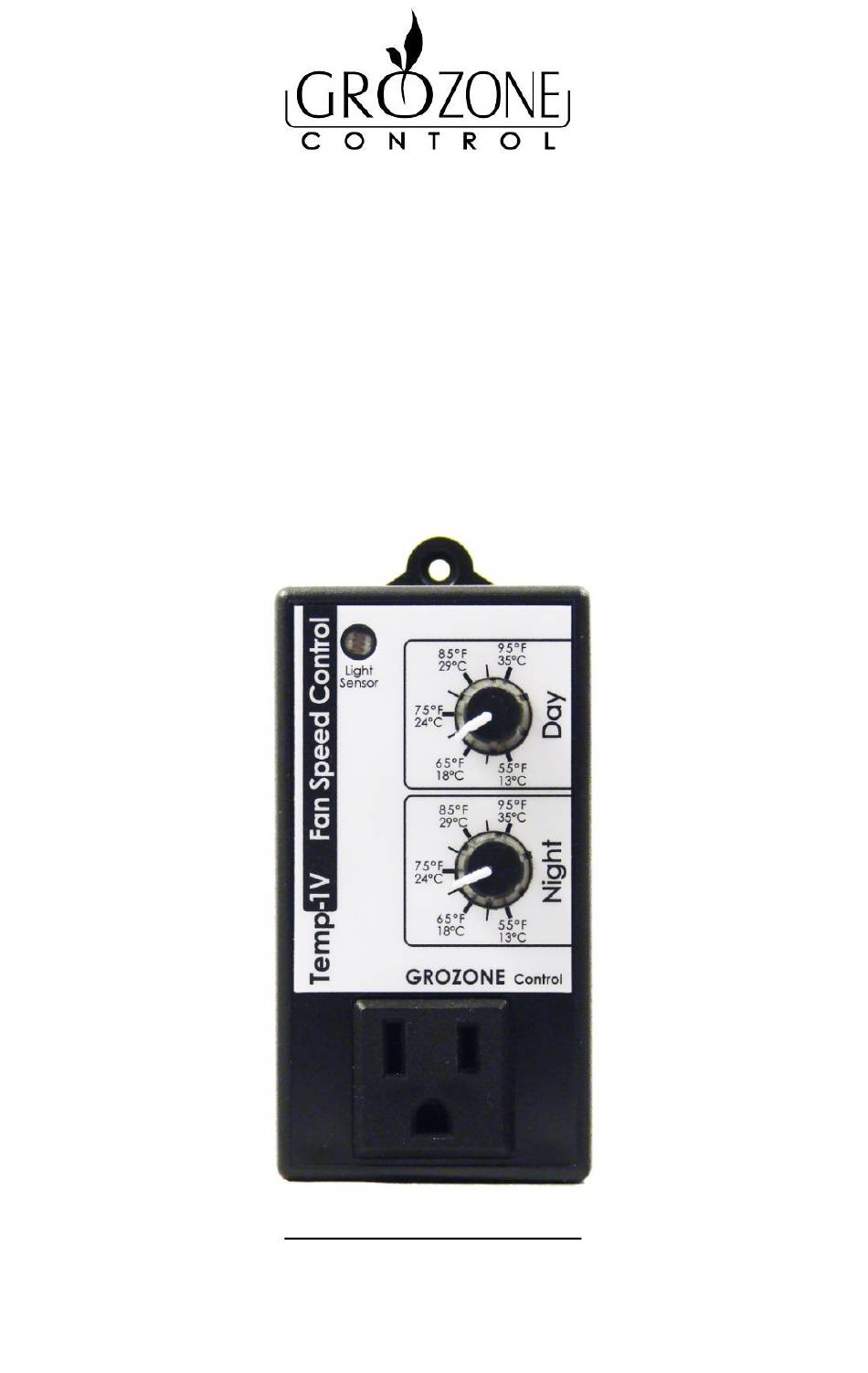

- Page 1 USER GUIDE Temp-1V Day & Night Fan Speed Control www.grozonecontrol.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY NOTICE PRODUCT DETAILS INSTALLATION & OPERATION OPTIONAL SETTINGS/so control mode OPTIONAL SETTINGS/ ght control mode QUICK TROUBLESHOOTING GUIDE COMPLETE TROUBLESHOOTING GUIDE 10-11 WARRANTY & CUSTOMER SERVICE 12-13... -
Page 3: Safety Notice
SAFETY NOTICE IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS DANGER TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS. To reduce the risk of electric shock, disconnect power to the 120V electrical outlet before installing or removing the unit. When removing the electrical wall plate, it may fall across plug pins or become displaced. -
Page 4: Product Details

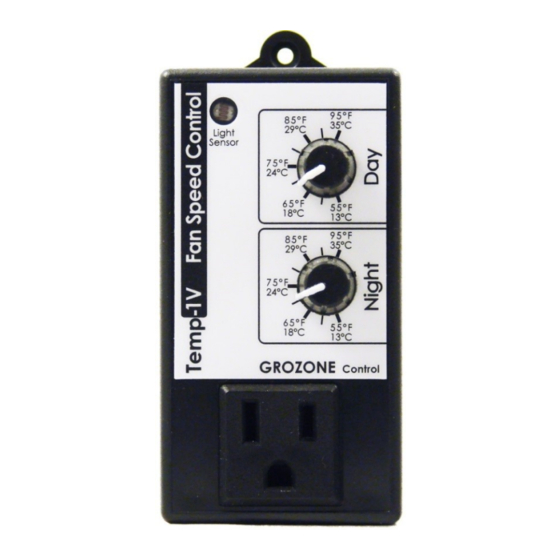

PRODUCT DETAILS Opera on and Specifica ons Temperature setpoint between 55°F and 95°F / 13°C to 35°C. Internal opera on in Fahrenheit. The 120V output is variable. Max 750 Wa s, 6.2 Amps. Fan is between 37% and 100% of full power on a 6°F range (Tight Control) or 9°F range (So Control). -
Page 5: Installation & Operation
INSTALLATION & OPERATION Note: This unit has been set to perform in Tight Control Mode. For So Control Mode, refer to Op onal Se ngs. Adjus ng temperature setpoints Light sensor (photocell) Day Temp Night Temp Plug into 120 VAC outlet (see security no ce on page 1). Place the sensor at desired loca on. -
Page 6: Optional Settings/So Control Mode
For medium varia on and medium precision; use this mode when equipment turns on and off repeatedly. A. Unplug the unit. Set both values to minimum. B. Within 5 seconds, plug in the unit, then set both values to maximum. TV1 is now in So Control Mode... -
Page 7: Optional Settings/ Ght Control Mode
For smaller varia on and higher precision; use this mode for best performance using correctly sized fan. A. Unplug the unit. Set both values to maximum. B. Within 5 seconds, plug in the unit, then set both values to minimum. TV1 is now in Tight Control Mode... -
Page 8: Quick Troubleshooting Guide
QUICK TROUBLESHOOTING GUIDE... - Page 9 QUICK TROUBLESHOOTING GUIDE...
-
Page 10: Complete Troubleshooting Guide
COMPLETE TROUBLESHOOTING GUIDE Day & Night Fan Speed Control 1 – Before you start ***IMPORTANT: READ AND FOLLOW THESE INSTRUCTIONS BEFORE STARTING THE TEST. DO NOT CONNECT THE UNIT BEFORE STEP 1 OF THE TEST. · CONNECT A FAN IN THE FRONT UNIT OUTPUT. ·... - Page 11 COMPLETE TROUBLESHOOTING GUIDE STEP HANDLING AND TEST DESCRIPTION EXPECTED RESULTS Maintain the light sensor covered · while turning the LOWER knob The fan will turn OFF. fully CW (95°F). The fan will turn ON when the knob pointer (line) indicates a temperature level Uncover the light sensor and wait ·...
-
Page 12: Warranty & Customer Service
WARRANTY & CUSTOMER SERVICE DO YOU HAVE A PROBLEM WITH YOUR CONTROLLER ? PLEASE READ THESE INSTRUCTIONS CAREFULLY AND SAVE THEM FOR FUTURE REFERENCE. 1. I think my controller is damaged, or it simply does not work as indicated in the user guide, what should I do? Please refer to the troubleshoo ng steps. - Page 13 To avoid being charged for the accessories, be sure to include all pieces. Thanks for your coopera on. Any Grozone Control product that is returned with obvious signs of user · neglect will not be covered by the warranty. Grozone Control exercises the right to make final decisions in these ma ers.
- Page 14 NOTE...
- Page 15 Room Setup...
- Page 16 Rev. 3.0 www.grozonecontrol.com...
