Summary of Contents for Noxon DAB8339BCD

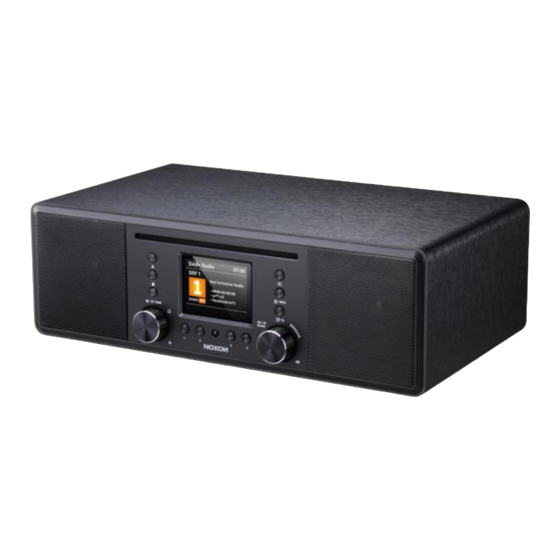

- Page 1 Digital Radio DAB8339BCD DAB+/FM/Bluetooth/ CD Player...
-
Page 2: Table Of Contents
Contents Introduction Package contents Disposal Safety Overview Getting Started 6.1 Connection and Preparation 6.2 General Device Functions Menu Operation DAB+ Radio FM Radio AUX IN Bluetooth CD Player System settings 8.1 Backlight 8.2 Time/Date 8.3 Alarms 8.4 Sleep 8.5 EQ 8.6 Language... -
Page 3: Introduction
8.7 Factory Reset 8.8 System Version Troubleshooting Technical Specification Conformity Trademarks 1 Introduction Thank you very much for buying the Digital radio. In order to let you freely operate the product and fully enjoy the overbalancing happiness it brings you; we have introduced each function of the player in detail in this user manual. -
Page 4: Safety
of separately from household waste at official disposal centers. • Avoid damage to the environment and risks to your personal health by disposing of device properly. • For further information about proper disposal, contact your local government, disposal bodies or the shop where you bought the device. •... - Page 5 • The device is in indoor use only. • Protect the device from strong vibrations and place it on stable surfaces. • Do not attempt to disassembly the device. • If the device is not using for a long period of time, disconnect it from the power supply by unplugging the power plug.
- Page 6 Risks associated with high volumes • Listening the device with headphones, always reduce the volume before put on the headphones. After the headphones are positioned properly, increase the volume to the desired level. • To prevent possible hearing damage, do not listen at high volume for long periods.
-
Page 7: Overview
5 Overview Main Unit: Top IR receiver 2.4” TFT color display Button : Preset 1,2,3,4 CD player slot Button : (MODE) （EJECT） Button : （MENU/INFO） Button : （STOP） Button : Button : (ALARM/BACK) Button : / BT PAIR knob : NAVIGATE / PREVIOUS/ NEXT;... - Page 8 Main Unit: Back FM/DAB+ Antenna DC IN socket Earphone jack socket AUX IN socket USB A port...
- Page 9 Remote Control Use your thumb to press the lid of the battery compartment and pull it out. Install AAA battery into the battery compartment, taking care to insert it with the positive (+) side up. Risk of explosion if battery is replaced by an incorrect type.
- Page 10 Select track, hold down to seek Start playback, pause Move up; FM: Set frequency Move left, step back Confirm entry; FM: Scan; Playing: album in full screen Move right, step next Move down; FM: Set frequency Select track Stop music playback Increase volume Decrease volume Mute, unmute...
-
Page 11: Getting Started
6 Getting Started Connection and Preparation Connect the power adaptor to the back of device and plug it into power socket. Switch on the device, it starts up. Pull out the rod DAB/FM antenna for DAB and FM reception. General Device Functions On the playing screen, rotate the volume knob or press on the remote control to adjust the volume. - Page 12 one of the 40 presets to save the currently playing station. Shortcut to preset recall 1-10 favorite stations by directly pressing and hold numbers 1-10 directly on the remote control. To select a preset, press / BT PAIR on the device or press PRESET on the remote control, the display “preset recall”...
-
Page 13: Menu Operation
7 Menu Operation DAB+ Radio DAB mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing. Scanning for stations The first time you select DAB radio mode, or if the station list is empty, the radio automatically performs a full scan to see what stations are available. - Page 14 2 Turn Navigate knob to scroll through the menu options: • [Station list]: display all DAB radio stations. If no station is found, the radio starts to scan DAB stations and add them to the station list. • [Preset Recall]: Play all the stored stations. •...
-
Page 15: Fm Radio
FM Radio FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast. To find a station, press OK/SCAN. The frequency display starts to run up as the device scans the FM band. Alternatively, you can scan up or down by knob on the device or on the remote control manually... -
Page 16: Aux In
Enter AUX mode, then adjust the volume as required. Bluetooth In Bluetooth mode, you can turn on the Bluetooth of your Bluetooth device. From your Bluetooth device, search the radio DAB8339BCD to pairing. When the pairing is successful, there is shown “Connected” on the display. - Page 17 *Finalising enables a CD-R/CD-RW disc to playback on audio players. A disc which has not been finalised may have information added to it using a computer but may not always be playable. Insert a disc with printed side facing up into the CD slot. The disc will be loaded automatically.
- Page 18 Press to start playing the programmed track(s). MP3 / WMA CD The radio is able to play CD-R and CD-RW discs containing MP3 and WMA files. It is assumed in this section that a file is equivalent to a CD track. It allows skipping folder by pressing on the remote control.
-
Page 19: System Settings
8 System settings At playing mode, press to access the menu. Turn Navigate knob repeatedly to select [System settings]. Press Navigate knob to confirm. Backlight You may change the backlight of power on level to High, Medium or Low . And adjust the timeout duration which the radio turns to standby backlight level when it has not been controlled. - Page 20 Alarm Time: Change the alarm time, the setting way is the same as the clock setting. Rotate the reel on the device or press the remote control to adjust, and press OK/SCAN or the reel to confirm. Alarm Source: Set the alarm sound from DAB, FM, or buzzer. Press OK/SCAN to confirm.
-
Page 21: Sleep
Sleep Press and hold on the device or press MENU/INFO on the remote control going to menu to enter to sleep mode. Rotate the reel on the device or press on the remote control to set the sleep time of 15/ 30/ 45/ 60/ 75/ 90/ 105/ 120 minutes. Or set the sleep as Off. -
Page 22: Troubleshooting
9 Troubleshooting Error Remedy The device does not switch 1. Check if the power adaptor is connected on or turned off suddenly. properly. 2. The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference. -
Page 23: Technical Specification
In case the function could not resume, please use the product in other location. 10 Technical Specification Model number DAB8339BCD Description DAB/DAB+ / FM / BT with CD Player Display 2.4", 320 x 240, TFT color display 87.5 –... - Page 24 Bluetooth sending power Max. 8dBm Power adaptor 12.0V 1.5A DC IN (power supply) AUX IN (3.5mm socket) Connections Earphone out socket USB A Port Standby mode power <1W consumption Operating temperature C - 35 Dimensions 330mm(L) x 105 mm(H) x 185 mm(D) Weight 2400g Specifications subject to change without notice.
- Page 25 community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Model no. SAW30A-120-1500G Input voltage AC 100 – 240V Input AC frequency 50/60 Hz Output voltage DC12.0V Output current 1.5A Output power Average active efficiency 86.99% @ 115VAC/60Hz 86.89% @ 230VAC/50Hz No-load power 0.04W @ 115VAC/60Hz consumption 0.09W @ 230VAC/50Hz...
-
Page 26: Conformity
11 Conformity This device has been approved for compliance with the basic and other relevant requirements of the RE Directive 2014/53/EU, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. 12 Trademarks Bluetooth® is a registered trademark of Bluetooth SIG, Inc. DAB+®...
