ShoreStation SSV20100EDS Manual

Hide thumbs Also See for SSV20100EDS:
Table of Contents

Advertisement

Quick Links

Download this manual

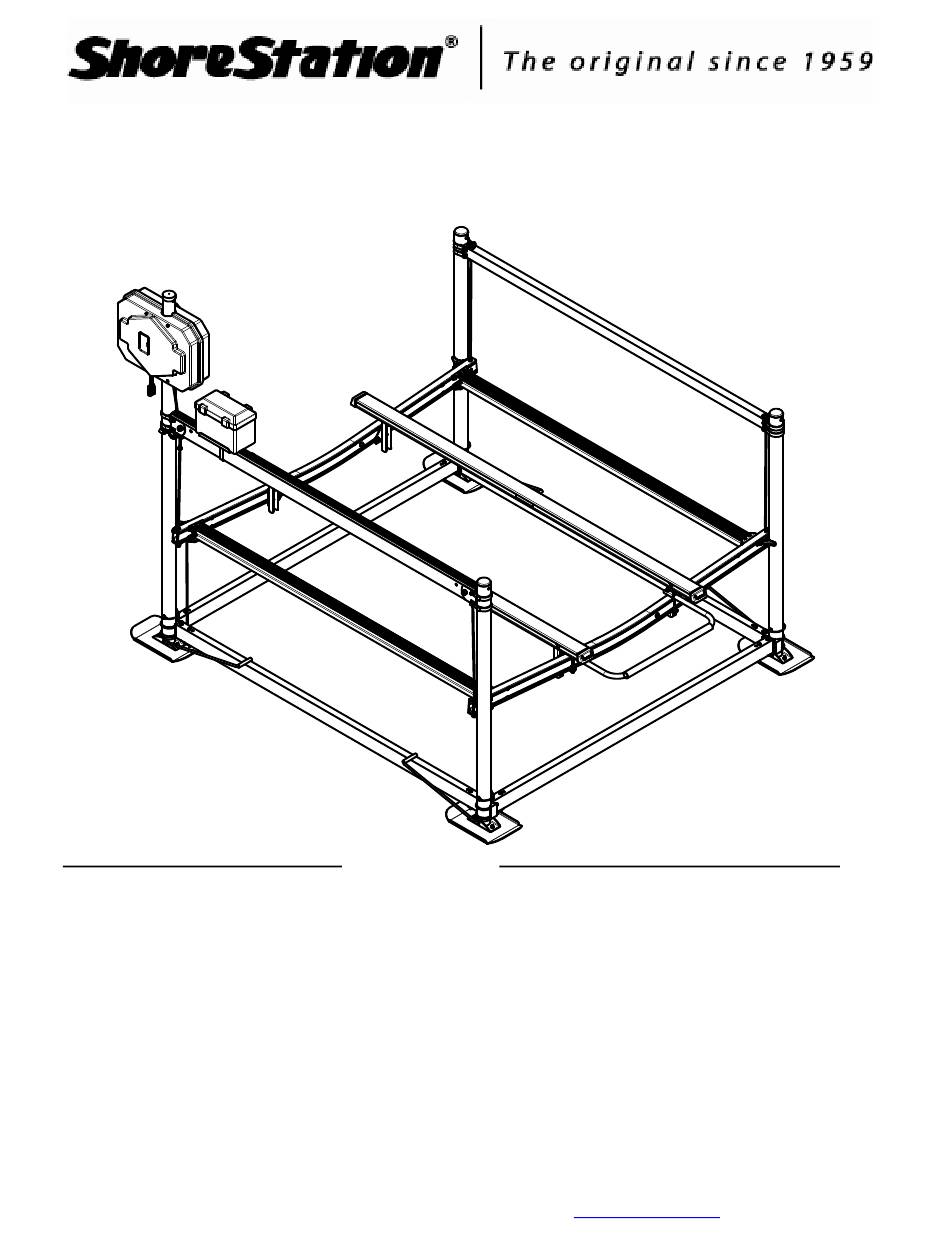

Your SHORESTATION Aluminum Boat Hoist is designed to give years of dependable service. Following the
enclosed instructions will insure you that your hoist is properly assembled.
SSV20100EDS HOIST ALUM ALL SS
62421
Lower Frame Bundle V15/20
64439
Leg Bundle V15/20 SS
70333
Platform Bundle Alum V15/20 SS
70358
Winch Tube Bundle V15/20 SS
7039903
Winch Assy EDCS 2000/4000 Hoist
70358
Lit Packet SSV20100EDS/DW
70393
Hdwe Box V15/20MS & E
HA0091
Bunk Poly V15/20 Hoist Alum SS
HA0093
Battery Box & Brkt Man Winch Tube
Midwest Industries, Inc.
Page 1 of 44
SSV20100EDS & SSV20100EDSDW
Ida Grove, IA 51445
SSV20100EDSDW HOIST ALUM ALL SSDW
62421
Lower Frame Bundle V15/20
70333
Platform Bundle Alum V15/20 SS
70358
Winch Tube Bundle V15/20 SS
70360
Leg Bundle V15/20 DW SS
7039903
Winch Assy EDCS 2000/4000 Hoist
70358
Lit Packet SSV20100EDS/DW
70393
Hdwe Box V15/20MS & E
HA0091
Bunk Poly V15/20 Hoist Alum SS
HA0093
Battery Box & Brkt Man Winch Tube
For more detailed information regarding the
Installation, Transporting, Operation, Safety,
Maintenance, and additional accessories available
for your hoist see your SHORESTATION Operators
Manual.
800-859-3028
www.shorestation.com
ACCESSORY
12/20/2009
0004115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSV20100EDS and is the answer not in the manual?

Questions and answers

Related Manuals for ShoreStation SSV20100EDS

Summary of Contents for ShoreStation SSV20100EDS

  • Page 1 ACCESSORY SSV20100EDS & SSV20100EDSDW Your SHORESTATION Aluminum Boat Hoist is designed to give years of dependable service. Following the enclosed instructions will insure you that your hoist is properly assembled. SSV20100EDS HOIST ALUM ALL SS SSV20100EDSDW HOIST ALUM ALL SSDW...

  • Page 2: Table Of Contents

    IMPORTANT: Read this manual carefully with special attention directed toward all WARNING, CAUTION, and IMPORTANT information. ShoreStation has been manufacturing boat hoist since 1959. Our current product offering of hoists ranges from 1000 lb. PWC hoists through 15,000 lb. hydraulic hoists.

  • Page 3: Using Your Hoist

    With the engine idling, continue to lower the platform. As the boat breaks free from the platform, the power of the engine in reverse will pull the boat out of the hoist. Discontinue lowering the platform at Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 3 of 44 12/20/2009...
  • Page 4 A padlock can be placed around the spoke on the big wheel and then through the wheel lock for added security. This protects both you and your boating equipment. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 4 of 44 12/20/2009...
  • Page 5 The diagram below and the line art drawings on the following pages are there to give you information on where parts are used and if needed the part numbers you will need if replacement parts are needed. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 5 of 44 12/20/2009...
  • Page 6 Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 6 of 44 12/20/2009...
  • Page 7 Standard and Deep Water Winch Tube Leg Assemblies Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 7 of 44 12/20/2009...
  • Page 8 Standard and Deep Water Leg Assemblies Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 8 of 44 12/20/2009...

  • Page 9: Lower Frame

    Lower Frame Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 9 of 44 12/20/2009...
  • Page 10 Aluminum Platform Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 10 of 44 12/20/2009...

  • Page 11: Spacer Tube

    Spacer Tube Mounting/Level Cable Mounting Hardware and Leg Tube Cap Bottom Level Cable Mounting Hardware Lift Cable Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 11 of 44 12/20/2009...

  • Page 12: Winch Tube

    Winch Tube Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 12 of 44 12/20/2009...
  • Page 13 Bunk Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 13 of 44 12/20/2009...

  • Page 14: Bunk Assembly

    Bunk Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 14 of 44 12/20/2009...
  • Page 15 Winch, Upper Limit Switch, Mounting Hardware and Cable Wedge Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 15 of 44 12/20/2009...

  • Page 16: Motor Stop

    Motor Stop and Mounting Hardware Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 16 of 44 12/20/2009...

  • Page 17: Winch Assembly

    Winch Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 17 of 44 12/20/2009...

  • Page 18: Assembly Instructions

    Attach the base pad clamps to the base pads with 3/8” stainless steel carriage bolts. Secure with 3/8” brass lock nuts with nylon inserts. Tighten. Repeat on all four base pads. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 18 of 44 12/20/2009...
  • Page 19 1/2” hairpin cotter keys. • Slide a plastic handle grip on the remaining end of the leg adjusting rod Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 19 of 44 12/20/2009...
  • Page 20 3/8” x 5” stainless steel hex bolt, stainless steel flat washers on both sides of the tube and brass lock nut with nylon insert as shown. Do Not Tighten any of the bolts until instructed later. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 20 of 44 12/20/2009...
  • Page 21 Secure using the 3/8” x 5 1/2” stainless steel hex bolts, stainless steel flat washers on the both sides, and brass lock nuts with nylon inserts. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 21 of 44 12/20/2009...
  • Page 22 Once all the bolts are installed attaching the upright corner posts to the lower frame, square the frame and tighten all nuts and bolts installed at this time. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 22 of 44 12/20/2009...
  • Page 23 Place on a 1/2” flat washer and two 1/2” brass nuts. Lock the two nuts together on the threads by placing wrenches on both nuts and then tightening them into each other. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 23 of 44 12/20/2009...
  • Page 24 5/16 x 2” stainless steel bolts washers and brass locknuts with nylon inserts. Slide the I-beams and mounting brackets to within a ½” of the pulley pin and secured to the platforms. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 24 of 44 12/20/2009...
  • Page 25 Center the platform on the lower frame by spacing it evenly between all upright posts. Position the plastic platform guides so they are ¼” from the posts and secure. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 25 of 44 12/20/2009...
  • Page 26 Secure with 3/8” stainless steel flat washer and 3/8” brass lock nut with nylon inserts. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 26 of 44 12/20/2009...
  • Page 27 They may require further adjustment later. • Repeat on the other platform level cable. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 27 of 44 12/20/2009...
  • Page 28 Raise the winch tube into position and set it on the first clamps just installed and between the legs of the second. Slide the second clamp up into position and insert bolts from the inside out and secure. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 28 of 44 12/20/2009...
  • Page 29 Now that the winch tube is located and secure, remove the two nuts and washers on the clamps around the winch post. Attach the wheel stop assembly using the exposed bolts. Replace the washers and nuts just removed. Tighten. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 29 of 44 12/20/2009...
  • Page 30 Place on a second 5/8” brass nut and thread it against the first nut. Using two wrenches turn the two nuts into each other locking them together. • Repeat this process on the other lift cable by Post No. 3. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 30 of 44 12/20/2009...
  • Page 31 Raise the platform approximately 30 inches from the bottom. Note the adjustable bunk brackets will be installed on the inside of the platforms as shown. • • Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 31 of 44 12/20/2009...
  • Page 32 Repeat on the second motor stop mounting tube. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 32 of 44 12/20/2009...
  • Page 33 Insert the plastic caps in Posts No. 1, 2, & 3 if a canopy is not going to be installed. YOUR HOIST IS NOW FULLY ASSEMBLED AND READY FOR INSTALLATION. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 33 of 44 12/20/2009...
  • Page 34 It is for that reason the ShoreStation recommends that a 24 volt system be used to power your winch system. A 24 volt system will increase the lifting considerably.
  • Page 35 Figure B – 24Volt Battery Configuration Figure C – Optional 24Volt Battery Configuration Figure D – Optional 24Volt Battery Configuration Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 35 of 44 12/20/2009...
  • Page 36 The UPPER AND LOWER LIMIT SWITCHES will override both the keypad and the remote control functions and stop the lift when triggered protecting the hoist from damage that can be created by either over cranking or back winding Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 36 of 44 12/20/2009...
  • Page 37 DO NOT REVERSE THE POLARITY AS THIS WILL DRAIN THE BATTERY VERY QUICKLY. The ShoreStation solar panel with the solar regulator is designed to charge only one 12 volt battery at a time. If you have a 24 volt system on your hoist with two-12 volt batteries connected in series, you must charge first one Midwest Industries, Inc.
  • Page 38 The electrical components in the electrical system are designed to provide many years of trouble-free service. No in-field servicing can be performed on this unit other than full replacement of the complete electrical system. Should you experience an electrical problem, it is recommended that you contact your local ShoreStation dealer for service.
  • Page 39 In the event that you are experiencing a problem and do not have a ShoreStation dealer available to assist you, contact ShoreStation at www.shorestation.com...
  • Page 40 MAINTENANCE REFER TO THE PARTS MANUAL FOR YOUR PARTICULAR HOIST WHEN ORDERING REPAIR PARTS FROM YOUR DEALER. It is recommended that your ShoreStation hoist be thoroughly inspected at the start of each season. Check all fasteners for tightness. Check the frame thoroughly for bent members and signs of fatigue.

  • Page 41: Platform

    Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 41 of 44 12/20/2009...

  • Page 42: Winch Tube

    Should you have any questions regarding the cables and pulleys, contact your local ShoreStation dealer. SHORESTATION OPERATOR’S MANUAL ADJUSTING THE WINCH TUBE • The winch tube can be lowered to improve the access to your boat. Lowering the winch tube will reduce the lift height of the hoist.

  • Page 43: Winch

    If for any reason your winch mechanism does not function as described, DO NOT tamper with the winch mechanism. Call your authorized ShoreStation dealer for assistance. DO NOT OPERATE THIS HOIST WITHOUT FIRST STUDYING AND UNDERSTANDING THE INFORMATION IN THIS OWNER’S MANUAL •...
  • Page 44 Inspect all cables for fraying, wearing, and deteriorating. If any signs appear, replace cables. • Check all pulleys and make sure they are turning freely and are not damaged. Midwest Industries, Inc. Ida Grove, IA 51445 800-859-3028 www.shorestation.com 0004115 Page 44 of 44 12/20/2009...
