SSV20100
Hoist Alum SS V-Frame
6243601
Big Wheel - Lift ShoreStation
69423
Hardware Box - SSV20100 Hoist
62421
Lower Frame Bundle - V20100
62423
Platform Bundle - V20100
6942801
Winch Bundle - Hoist V20/V40
65582
Winch Tube Bundle - V15/V20
62927
Leg Bundle - V20100
HA0020
Bunk Poly V15/V20100
69583
Lit Packet, V20100/DW
Midwest Industries, Inc.
Page 1
SSV20100 & SSV20100 DW
Ida Grove, IA 51445
SSV20100 DW Hoist Alum SS V-Frame
6243601
Big Wheel - Lift ShoreStation
69423
Hardware Box - SSV20100 Hoist
62421
Lower Frame Bundle - V20100
62423
Platform Bundle - V20100
6942801
Winch Bundle - Hoist V20/V40
65582
Winch Tube Bundle - V15/V20
67228
Leg Bundle - V20100 DW
HA0020
Bunk Poly V15/V20100
69583
Lit Packet, V20100/DW
800.859.3028
www.shorestation.com

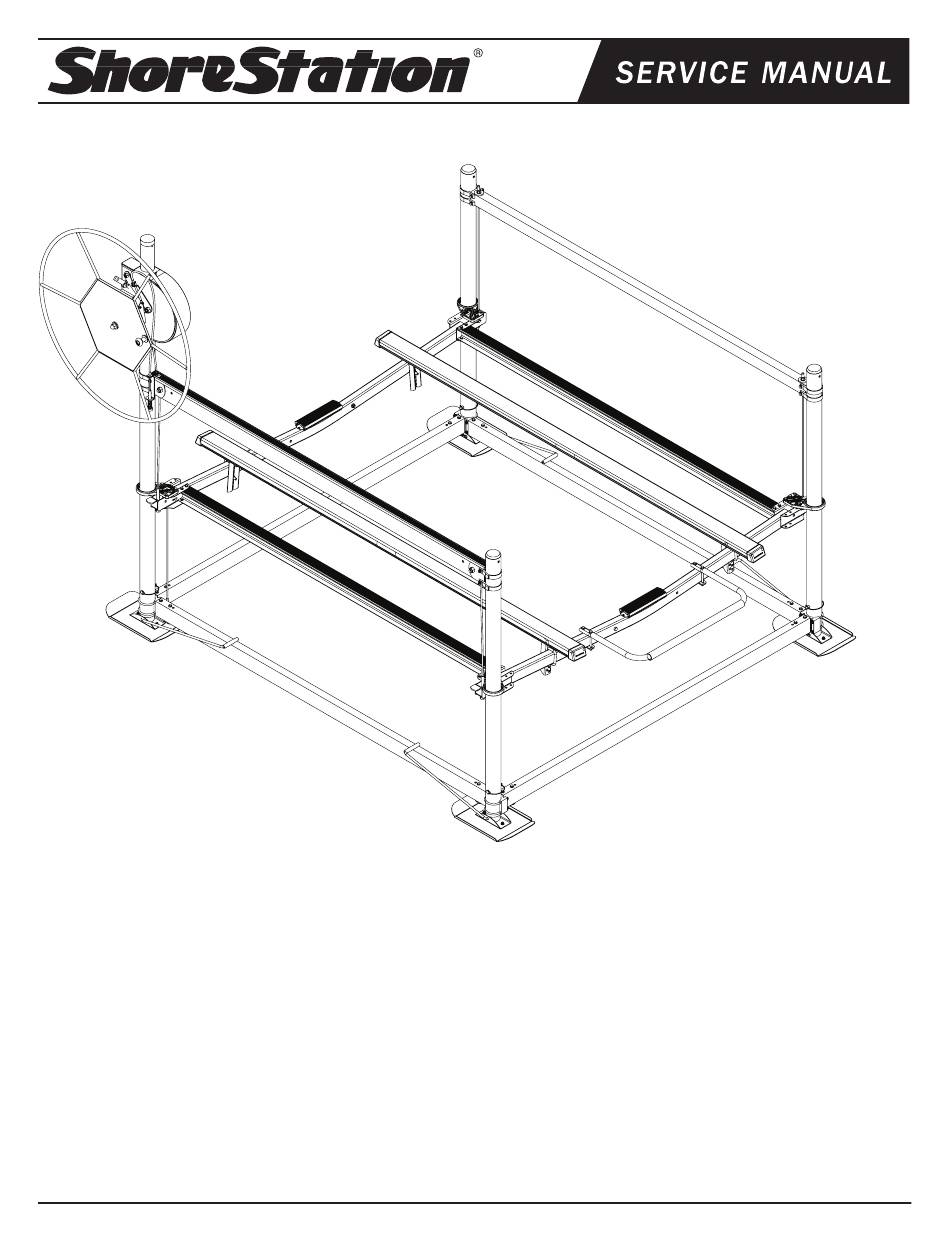

SSV20100 Shown in Drawing
REV B 03 /09/2009
0003785

Advertisement

loading
Need help?

Need help?

Do you have a question about the SSV20100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ShoreStation SSV20100

  • Page 1 SSV20100 & SSV20100 DW SSV20100 Shown in Drawing SSV20100 Hoist Alum SS V-Frame SSV20100 DW Hoist Alum SS V-Frame 6243601 Big Wheel - Lift ShoreStation 6243601 Big Wheel - Lift ShoreStation 69423 Hardware Box - SSV20100 Hoist 69423 Hardware Box - SSV20100 Hoist...
  • Page 2 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 2 REV B 03/09/2009...
  • Page 3 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 3 REV B 03 /09/2009...
  • Page 4 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 4 REV B 03/09/2009...
  • Page 5 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 5 REV B 03 /09/2009...
  • Page 6 Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 6 REV B 03/09/2009...
  • Page 7: Lower Frame Assembly

    Lower Frame Assembly Winch Post Guide Post Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 7 REV B 03 /09/2009...
  • Page 8: Platform Assembly

    Platform Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 8 REV B 03/09/2009...
  • Page 9 Winch Tube Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 9 REV B 03 /09/2009...
  • Page 10: Winch Assembly

    Winch Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 10 REV B 03/09/2009...
  • Page 11: Wheel Assembly

    Wheel Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 11 REV B 03 /09/2009...
  • Page 12 Bunk Assembly Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 12 REV B 03/09/2009...
  • Page 13 The water depth where your hoist is going to be installed will adjustment. determine whether you should use the deep water version of this hoist. • The deep water legs have 55” of adjustment. Midwest Industries, Inc. Ida Grove, IA 51445 800.859.3028 www.shorestation.com 0003785 Page 13 REV B 03 /09/2009...
  • Page 14 SSV20100 Decal Placement 4850206 Lube Tube 4850359 Decal Caution Arrow - Raise 4811504 Clockwise Weight Capacity Decal Decal 4810700 SS Big Wheel Embossed Decal 4850351 4850224 Warning Caution Inspect UP/DOWN Cable Decal Spin Wheel 4811312 Decal Clamp Arrow Decal 4850408...
