20V MAX VARIABLE SPEED
RECIP
RECIPROCATING SAW
JD522020
WEAR CSA APPROVED
EYE PROTECTION
READ ALL INSTRUCTIONS BEFORE FIRST USE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
KEEP AWAY FROM CHILDREN.
Maximum initial battery voltage (measured without a load)
is 20 volts. Normal voltage is 18 volts.
5 Year Limited
5 Year Limited Warranty on tool
Y
Year Limited
battery and charger not included
battery and charger not included
WEAR EAR
PROTECTION
Warranty on tool
WEAR A
FACE MASK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1270-204 and is the answer not in the manual?

Questions and answers

Related Manuals for Benchmark 1270-204

Summary of Contents for Benchmark 1270-204

  • Page 1 20V MAX VARIABLE SPEED RECIPROCATING SAW RECIP 5 Year Limited Warranty on tool 5 Year Limited Year Limited Warranty on tool battery and charger not included battery and charger not included READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN.

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS 20V MAX VARIABLE SPEED RECIPROCATING SAW Voltage 20V MAX* Variable Speed 0-3,000 SPM Length of Stroke 1” (25.4 mm) Max. Cutting Capacity - Wood (w/12” blade) 3-1/8” (80 mm) Max. Cutting Capacity - Pipe 3/4” (20 mm) Max. Cutting Capacity - Steel 3/8”...

  • Page 3: Table Of Contents

    1270-204 20V MAX VARIABLE SPEED RECIPROCATING SAW TABLE OF CONTENTS Product Specifications ................... 1 Table of Contents ................... 2 General Safety Warnings ................3 Specific Reciprocating Saw Safety ..............6 Safety Symbols ....................7 Know your 20v Max VS Reciprocating Saw ............. 8 Operation and Assembly ................

  • Page 4: General Safety Warnings

    GENERAL SAFETY WARNINGS WARNING: Before using this tool or any of its accessories, read this manual and follow all Safety Rules and Operating Instructions. The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible situations.
  • Page 5 1270-204 20V MAX VARIABLE SPEED RECIPROCATING SAW POWER TOOL SAFETY WARNING WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 6 Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

  • Page 7: Specific Reciprocating Saw Safety

    1270-204 20V MAX VARIABLE SPEED RECIPROCATING SAW BATTERY TOOL USE AND CARE Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

  • Page 8: Safety Symbols

    SYMBOLS WARNING: Some of the following symbols may appear on the reciprocating saw. Study these symbols and learn their meaning. Proper interpretation of these Three-phase alternating Volts current with neutral Amperes Direct current Hertz No load speed Watts Alternating or direct current Kilowatts Class II Construction Microfarads...

  • Page 9: Know Your 20V Max Vs Reciprocating Saw

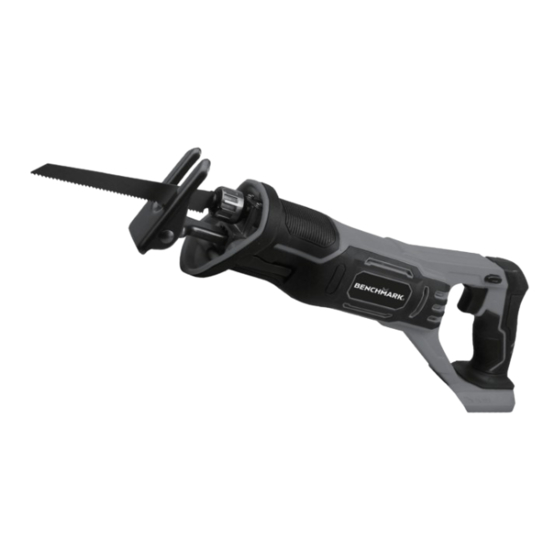

    1270-204 20V MAX VARIABLE SPEED RECIPROCATING SAW KNOW YOUR 20V MAX VS RECIPROCATION SAW Tool Free blade release Pivoting Shoe Tool-less Adjustable shoe VS trigger Battery (sold separately)

  • Page 10: Operation And Assembly

    2. Wear approved safety eye/face shield, ear defenders and hand protection. DISPOSAL At the end of the useful life of the Tools by Benchmark 20V MAX* Li-ion Reciprocating Saw, dispose of the components according to all state, federal and local regulations.
  • Page 11 1270-204 20V MAX VARIABLE SPEED RECIPROCATING SAW PURPOSE 20V Max* Li-ion Reciprocating Saw is ideal for demolition and remodeling. Designed to cut through many types of materials such as wood, metal, PVC and nails. Always wear safety goggles and gloves.
  • Page 12 LOCK-OUT SWITCH 1. The lock-out switch (1) is a safety device designed to reduce the possibility of a user accidentally starting the saw. (Figure 2) 2. This switch must be pressed before the trigger (2) switch can be squeezed. NOTE: The lock-out switch can be pressed from either the left or right side of the handle.
  • Page 13 1270-204 20V MAX VARIABLE SPEED RECIPROCATING SAW MATERIALS YOU CAN CUT of materials. Some of these materials include: • Wood products such as lumber, hardwood, plywood, composite board, and paneling NOTE: metal cutting blades (fine teeth) and wood cutting blades (coarse teeth). Use the correct blade for your application.
  • Page 14 PLUNGE CUTTING 1. Clearly mark the workpiece to locate the position of the cut. 2. Clamp the workpiece to a workbench or table. NOTE: Make sure the area to be cut is clear under the workpiece so that the blade will not come into contact with anything other than the workpiece.

  • Page 15: Maintenance

    1270-204 20V MAX VARIABLE SPEED RECIPROCATING SAW MAINTENANCE WARNING : When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.
  • Page 16 MAINTENANCE WARNING: When servicing, use only identical replacement parts. The use of any other part may create a hazard or cause product damage. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use.

  • Page 17: Exploded View

    1270-204 20V MAX VARIABLE SPEED RECIPROCATING SAW EXPLODED VIEW...

  • Page 18: Parts List

    PARTS LIST WARNING: When servicing, use only original equipment replacement parts. The use of any other parts may create a safety hazard or cause damage to the reciprocating saw . Any attempt to repair or replace electrical parts on this eciprocating saw may create a safety hazard unless repairs are performed by a qualified technician.

  • Page 19: Warranty

    WARRANTY 20V MAX VARIABLE SPEED RECIPROCATING SAW If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. 3-year warranty for the battery and charger. This warranty does not include expendable parts including but not limited to blades, brushes, belts, light bulbs.
  • Page 20 20V MAX VARIABLE SPEED RECIPROCATING SAW RECIP 5 Year Limited Warranty on tool 1270-204 READ ALL INSTRUCTIONS BEFORE FIRST USE. KEEP THIS MANUAL FOR FUTURE REFERENCE. KEEP AWAY FROM CHILDREN. Maximum initial battery voltage (measured without a load) JD522020 is 20 volts. Normal voltage is 18 volts.
