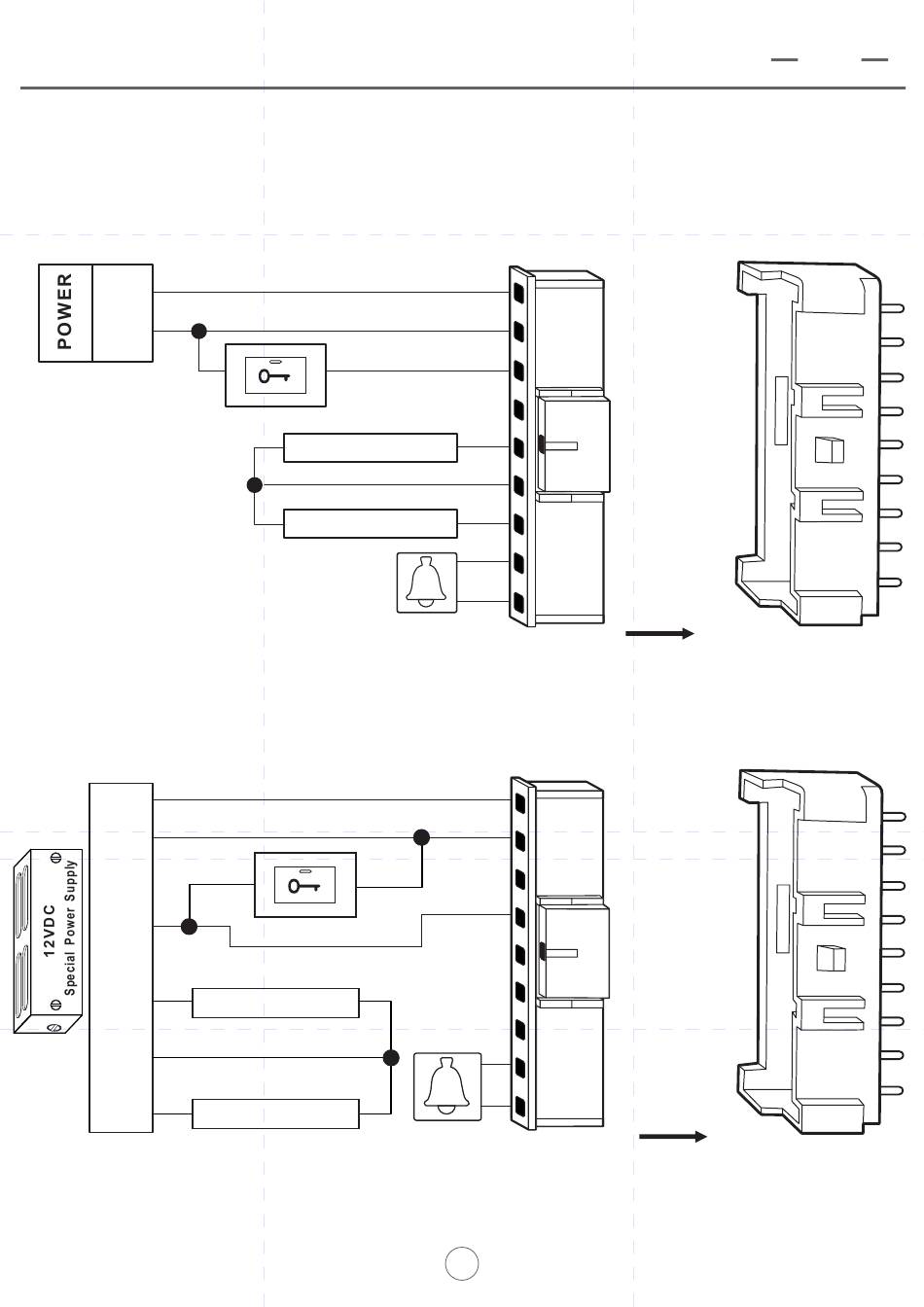

6 Wiring Diagram
+12V
GND
+12V
GND
PUSH
+
NO
COM
+
NC
Common Power Supply Diagram
EXIT BUTTON
-
Fail-secure lock
-
Fail-safe lock
Special Power Supply Diagram
EXIT BUTTON
-
Fail-secure lock
-
Fail-safe lock
+
+
BELL
BELL
3
+12V (RED)
GND (BLACK)
OPEN (YELLOW)
PUSH (GREEN)
NO (BLUE)
COM (WHITE)
NC (BROWN)
BELL (PINK)
BELL (PINK)
Connect
+12V (RED)
GND (BLACK)
OPEN (YELLOW)
PUSH (GREEN)
NO (BLUE)
COM (WHITE)
NC (BROWN)
BELL (PINK)
BELL (PINK)
Connect
EN
