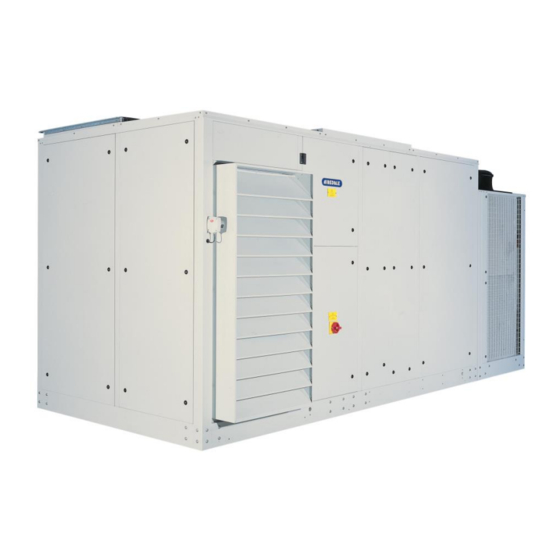

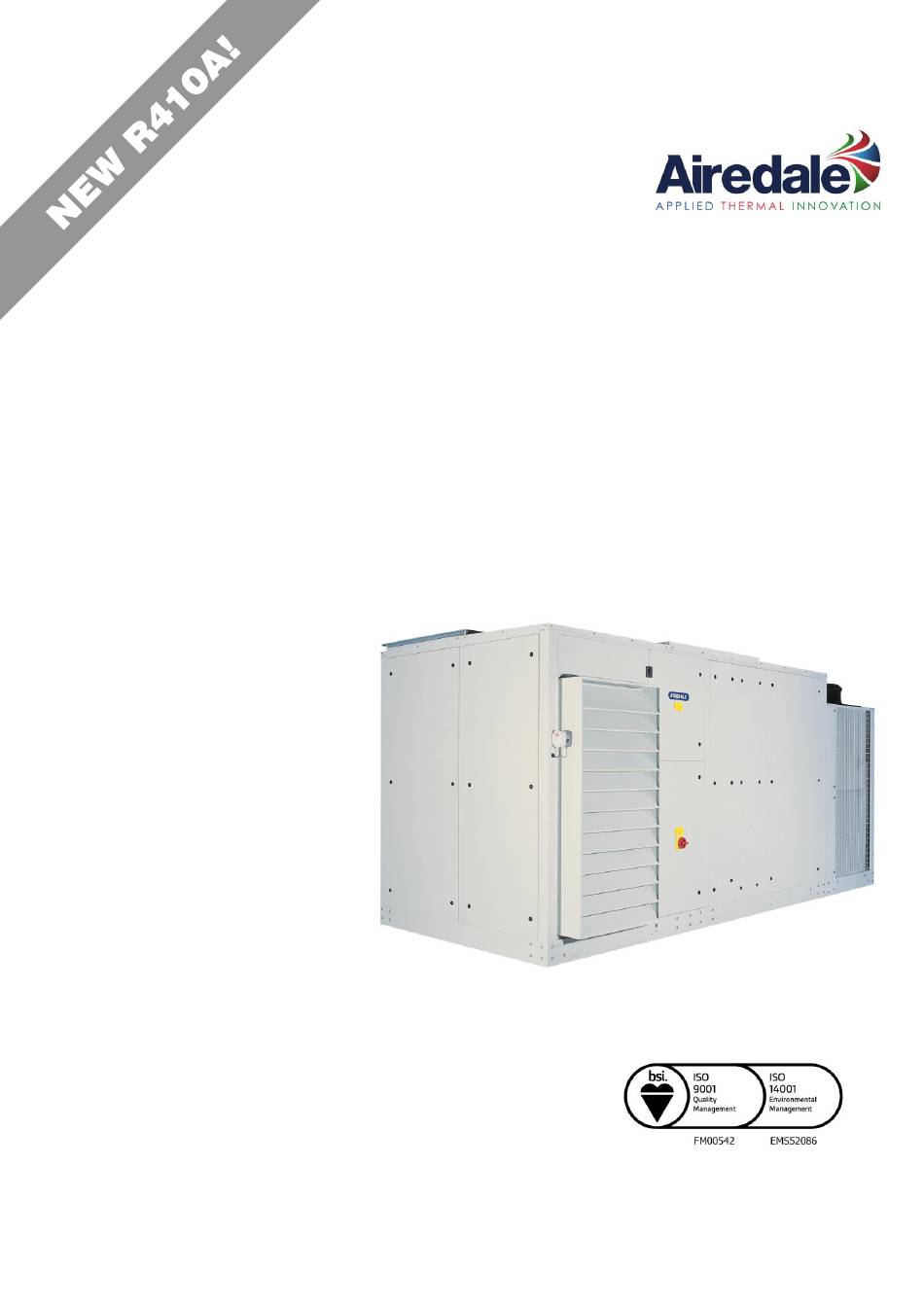

- Page 1 COVER StoreMaster™ Air Handling Unit - Free Cooling, Cooling & Heat Pump 50 kW - 77 kW R410A TECHNICAL MANUAL...
- Page 2 (excluding costs for any specialist access or lifting equipment that must be ordered by the customer). Any spare part supplied by Airedale under warranty shall be warranted for the unexpired period of the warranty or 3 months from delivery, whichever period is the longer.
-
Page 3: Table Of Contents
Comfort STOREMASTER™ Contents Contents GENERAL DESCRIPTION Unit Identification ........................4 Introduction ..........................4 Features ..........................5 Standard Features - General ....................6 Standard Features - General - Energy Saving Standard Features - Evaporator Section ................8 Standard Features - Evaporator Section - Energy Saving Standard Features - Condenser Section ................ -
Page 4: General Description
Evaporator Section Condenser Section INTRODUCTION The Airedale range of StoreMaster fully packaged air cooled air conditioners covers the nominal capacity range 50kW and 77kW in 2 model sizes. Attention has been placed on maximising the unit’s performance while keeping the sound and footprint to an absolute minimum. -
Page 5: Features
FEATURES COOLING ONLY COOLING & HEAT PUMP ● Standard ○ Optional Extra - Not available Construction ● ● Weatherproof Louvre To Fresh Air Intake And Exhaust Air (Packaged Unit Only) ● ● Fresh Air Free Cooling Economiser - Outside Air Damper Split Delivery - Condensing Section And Evaporator Section ●... -
Page 6: Standard Features - General
STOREMASTER™ Comfort General Description STANDARD FEATURES - GENERAL Construction The base is fabricated from galvanised steel to ensure a tough, durable, weatherproof construction. Unit support can be provided by concrete/steel pillars to each corner of the rigid steel base. The superstructure is manufactured from galvanised sheet steel coated with epoxy baked powder paint to provide a durable and weatherproof finish. -
Page 7: Standard Features - General - Energy Saving
Comfort STOREMASTER™ General Description STANDARD FEATURES - GENERAL - ENERGY SAVING Refrigeration Heat Pump Unit EVAPORATOR SECTION INCLUDES: Electronic expansion valve (EEV) Liquid line sight glass Discharge line ball valve Large capacity filter drier Low pressure switch with manual reset via microprocessor controller ... -
Page 8: Standard Features - Evaporator Section
STOREMASTER™ Comfort General Description STANDARD FEATURES - EVAPORATOR SECTION Coil Large surface area coil(s) ideally positioned to optimise airflow and heat transfer, manufactured from refrigeration quality copper cross hatched tubes with mechanically bonded aluminium fins. Coils are suitably positioned over a purpose made stainless steel drain tray. Fins are coated with a non-stick acrylic film (hydrophilic) which provides additional corrosion protection and efficient surface water removal for improved performance. - Page 9 Comfort STOREMASTER™ General Description STANDARD FEATURES - EVAPORATOR SECTION Compressor Suction gas cooled scroll compressors comprising: Internal motor protection Internal pressure relief Non return valve External discharge temperature protection Oil sight glass Oil heater The compressors are mounted to the rigid galvanised heavy duty sub-frame with the use of vibration reducing isolation.
- Page 10 STOREMASTER™ Comfort General Description STANDARD FEATURES - EVAPORATOR SECTION Electrical Dedicated weatherproof electrical power and controls panels are situated at the side of the unit and contain: Door locking electrical isolation for mains compartment Separate, fully accessible, controls compartment, allowing adjustment of control set points whilst the unit is operational ...
-
Page 11: Standard Features - Evaporator Section - Energy Saving
Comfort STOREMASTER™ General Description STANDARD FEATURES - EVAPORATOR SECTION - ENERGY SAVING Expansion Valves IN COOLING MODE, ELECTRONIC EXPANSION VALVES (EEV): Cooling Only Unit Electronic expansion valves differ to the normal thermostatic expansion valves in their ability to maintain control of the suction superheat at reduced head pressures. -
Page 12: Standard Features - Condenser Section
STOREMASTER™ Comfort General Description STANDARD FEATURES - CONDENSER SECTION Coil Large surface area coil(s) ideally positioned to optimise airflow and heat transfer, manufactured from refrigeration quality copper cross hatched tubes with mechanically bonded aluminium fins. Fins are coated with a non-stick acrylic film (hydrophilic) which provides additional corrosion protection and efficient surface water removal for improved performance. -
Page 13: Optional Extras - General
Comfort STOREMASTER™ General Description OPTIONAL EXTRAS - GENERAL Split Delivery The evaporator section and condensing section can be delivered as a split system. EVAPORATOR SECTION INCLUDES: Cooling Only Unit Holding Charge of Inert Gas Sub Fusing for Condenser ... - Page 14 STOREMASTER™ Comfort General Description OPTIONAL EXTRAS - GENERAL Coil Guards Guards can be fitted to each of the outer condenser coils to protect against damage. Electronic Soft Start The electronic soft start enables the unit compressor motor to be ramped to speed with the minimum full load current.
- Page 15 Comfort STOREMASTER™ General Description OPTIONAL EXTRAS - GENERAL Maintenance 13A Double 13A three pin plug socket for unit maintenance only. Socket Heating Options Electric Heating Multi-stage finned electric heating elements complete with auto and manual reset overheat cut-out protection, phase balanced for increased efficiency. A separate mains incoming power supply is required with the electric IMPORTANT heating option.
-
Page 16: Optional Extras - Energy Saving
ON / OFF control as standard. The split system Evaporator section is suitable for both externally and internally located unit applications. For sealed plant room applications please refer to Airedale. Configured as standard suitable for outdoor application only, UNLESS IMPORTANT otherwise stated at time of order. -
Page 17: Design Features & Information
Comfort STOREMASTER™ Design Features & Information ENERGY SAVING FEATURES Free Cooling The StoreMaster packaged unit has been designed to provide the cooling load required whilst optimising energy efficiency at all times and as such will take advantage of free cooling whenever available. If the free cooling available cannot satisfy the required full cooling load, DX (mechanical) cooling is used to supplement the output. - Page 18 STOREMASTER™ Comfort Design Features & Information ENERGY SAVING FEATURES Electronic Expansion Using an EEV allows for good refrigeration control whilst operating at part load and lower ambient conditions with a reduced condensing pressure. By fitting an Valves (EEV) EEV and adjusting the head pressure control setting an increase in the system EER (Energy Efficiency Ratio) of up to 30% can typically be seen.
-
Page 19: Low Pressure Hot Water (Optional Extra)
Comfort STOREMASTER™ Design Features & Information LOW PRESSURE HOT WATER (OPTIONAL EXTRA) Cooling Only Waterflow (l/s) Includes valve and pipework. Comfort Range Technical Manual : 6678403 V1.7.0_ 11_2015... -
Page 20: System Pipework Schematic
STOREMASTER™ Comfort Design Features & Information SYSTEM PIPEWORK SCHEMATIC Cooling Only Evaporator Section (refer to Footnote 1, on page 4 ) Condenser Section (refer to Footnote 1, on page 4 ) Scroll Compressor - Tandem Set Temperature Sensor High Pressure Switch Ball Valve Ball Valve - Split Delivery Only Condenser Section Coil &... - Page 21 Comfort STOREMASTER™ Design Features & Information SYSTEM PIPEWORK SCHEMATIC Cooling & Heat Pump Unit 50RHP Evaporator Section in Cooling Mode High Pressure Switch Evaporator Section in Heat Pump Mode (refer to Footnote Scroll Compressor - Tandem Set Condenser Section in Cooling Mode on page 4 ) Low Pressure Switch Condenser Section in Heat Pump Mode...
- Page 22 STOREMASTER™ Comfort Design Features & Information SYSTEM PIPEWORK SCHEMATIC Cooling & Heat Pump Unit 77RHP Evaporator Section in Cooling Mode High Pressure Switch Evaporator Section in Heat Pump Mode (refer to Footnote Scroll Compressor - Tandem Set Condenser Section in Cooling Mode on page 4 ) Low Pressure Switch Condenser Section in Heat Pump Mode...
-
Page 23: Controls
Comfort STOREMASTER™ Controls GENERAL The microprocessor controller offers powerful analogue and digital control to meet a wide range of monitoring and control features including a real time clock and Industry standard DESCRIPTION communication port and network connections. The controller’s inbuilt display is used for viewing the unit operating status and making adjustments to control parameters by allowing the operator access to a series of display pages. -
Page 24: Operation
STOREMASTER™ Comfort Controls OPERATION In DX cooling, if supply air temperature falls below 12°C, DX COOLING ONLY demand is reduced proportionally over a 2°C dead band (down HIGH to 10°C) & prevents low supply air temperatures. STAGE 2 Free Cooling damper 100%, if outside air temp. is 1°C COOLING below return air temp. - Page 25 Comfort STOREMASTER™ Controls OPERATION COOLING & HEAT PUMP HIGH In DX cooling, if supply air temperature falls below 12°C, DX demand is reduced proportionally over a 2°C dead band (down to 10°C) & prevents low supply air temperatures. STAGE 2 Free Cooling damper 100%, if outside air temp.
-
Page 26: Monitoring
STOREMASTER™ Comfort Controls MONITORING The microprocessor also monitors and displays the following measured parameters: Return Air Humidity (Enthalpy Option Only) Supply Fan Differential Air Pressure (Constant Air Volume Option Only) Condensing Pressure Return Air Temperature Supply Air Temperature ... -
Page 27: Standard Features
The control system integrity can be maintained by restricting access with a password PIN number. CAUTION IMPORTANT: To change the PIN number; please contact Airedale at time of order with the preferred 4 digit number. Comfort Range Technical Manual : 6678403 V1.7.0_ 11_2015... -
Page 28: Optional Features
A wide range of protocols can be accommodated through the use of interface devices. Available as a standard option are: ModBus/Jbus, Carel and Trend. For interfaces such as SNMP, LonWorks, Metasys and BACnet, please contact Airedale. Also available is Airedale’s own supervisory plug-in BMS card pCOWEB. -
Page 29: Performance Data
Energy Efficiency Ratio (EER) is Total Cooling duty ÷ Unit Input Power, where input power includes compressor and supply fan. OPERATING LIMITS Unit with Electronic Fan Speed HP Control (-20°C) Minimum Ambient Air DB°C -20°C Maximum Ambient Air DB°C +40°C For applications outside of these conditions, please refer to Airedale. Comfort Range Technical Manual : 6678403 V1.7.0_ 11_2015... -
Page 30: Capacity Data - Cooling & Heat Pump Unit
STOREMASTER™ Comfort Performance Data CAPACITY DATA - COOLING & HEAT PUMP UNIT DX (Mechanical) Cooling - (Heat Pump) Ambient 20°C 25°C 30°C 35°C 40°C Air On °C DB / %RH 20 / 50 54.2 51.2 52.4 49.6 50.4 47.8 48.2 45.9 45.9 43.8... - Page 31 Comfort STOREMASTER™ Performance Data FAN PERFORMANCE - SUPPLY AIR Input voltage signal The input voltage signal to the fan speed controller from the unit microprocessor (Vdc) sets the fan speed for design performance. The voltage can be determined from the graphs at design air volume using the Total Static Pressure: ...
- Page 32 STOREMASTER™ Comfort Performance Data FAN PERFORMANCE - SUPPLY AIR Minimum Air Minimum Air Volume Maximum Air STM50 Volume with Gas Heating Volume Air Volume m³/s Key: 0 Pa ESP - Gas Fired Heating 0 Pa ESP - LPHW/Electric Heating 0 Pa ESP - Cooling Only Comfort Range Technical Manual : 6678403 V1.7.0_ 11_2015...
- Page 33 Comfort STOREMASTER™ Performance Data FAN PERFORMANCE - SUPPLY AIR Minimum Air Minimum Air Volume Maximum Air STM77 Volume with Gas Heating Volume Air Volume m³/s Key: 0 Pa ESP - Gas Fired Heating 0 Pa ESP - LPHW/Electric Heating 0 Pa ESP - Cooling Only Comfort Range Technical Manual : 6678403 V1.7.0_ 11_2015...
-
Page 34: Fan Performance - Return Air
STOREMASTER™ Comfort Performance Data FAN PERFORMANCE - RETURN AIR Input voltage signal The input voltage signal to the fan speed controller from the unit microprocessor (Vdc) sets the fan speed for design performance. The voltage can be determined from the graphs at design air volume using the Total Static Pressure: ... - Page 35 Comfort STOREMASTER™ Performance Data FAN PERFORMANCE - RETURN AIR STM50 1.50 1.75 2.00 2.25 2.50 2.75 3.00 3.25 Air Volume m³/s STM77 Air Volume m³/s Key: 0 Pa ESP - 100% Free Cooling 0 Pa ESP - 0% Free Cooling Comfort Range Technical Manual : 6678403 V1.7.0_ 11_2015...
-
Page 36: Sound Data
STOREMASTER™ Comfort Sound Data MEASUREMENT OF All sound data quoted has been measured in the third-octave band limited values, using a Real Time Analyser calibrated sound intensity meter in accordance with BS EN ISO9614 SOUND DATA Part 1 : 1995. All Sound Power Levels quoted are calculated from measured sound intensity according to BS EN ISO9614 Part 1 : 2009. -
Page 37: General Specification
Comfort STOREMASTER™ General Specification MECHANICAL DATA - COOLING ONLY STM50R STM77R Duty - Cooling Nom Cooling (Gross) Total (1) kW 53.0 77.5 Nom Cooling (Gross) Sensible (1) kW 47.2 71.1 Fan Gains - Supply per unit (1) kW 1.52 2.88 EER - DX (Mechanical) Cooling 2.99 2.79... -
Page 38: Mechanical Data - Cooling & Heat Pump
STOREMASTER™ Comfort General Specification MECHANICAL DATA - COOLING & HEAT PUMP STM50RHP STM77RHP Duty - Cooling Nom Cooling (Gross) Total 52.8 76.5 Nom Cooling (Gross) Sensible 46.5 69.9 EER - DX (Mechanical) Cooling 2.99 2.74 EER - Free Cooling 12.8 14.3 Fan Gains - Supply per unit 1.52... -
Page 39: Electrical Data - Cooling Only
Comfort STOREMASTER™ General Specification ELECTRICAL DATA - COOLING ONLY STM50R STM77R Electrical Supply Data Mains supply 400V / 3 PH / 50Hz Permanent supply 230V / 1 PH + N / 50Hz Control circuit 24vac/230vac Recommended mains fuse Recommended permanent mains fuse (3) Max mains incoming cable size 35mm²... -
Page 40: Electrical Data - Heat Pump
STOREMASTER™ Comfort General Specification ELECTRICAL DATA - HEAT PUMP STM50RHP STM77RHP Electrical Supply Data Mains supply 400V / 3 PH / 50HZ Permanent supply 230V / 1 PH + N / 50Hz Control circuit 24vac/230vac Recommended mains fuse Recommended permanent mains fuse (3) Max mains incoming cable size 35mm²... -
Page 41: Dimensional Data
Dimensional Data Top Flange(s) Flange Detail PACKAGED UNIT Condenser Section Height: (MM) Cooling Only Unit SM**R-P unit = 2056 mm Cooling & Heat Pump SM**RHP-P unit = 2126 mm 1430 1035 Gas Supply Inlet (Heating Option): Cooling Only Unit SM**R-P unit = 275 mm Cooling &... -
Page 42: Split System
Condenser Section Height: SPLIT SYSTEM Cooling Only Unit SM**R-C unit = 2056 mm Cooling & Heat Pump SM**RHP-C unit = 2126 mm Condenser Section (mm) Gas Supply Inlet (Heating Option): Cooling Only Unit SM**R-E unit = 243 mm Cooling & Heat Pump SM**RHP-E unit = 420 mm Condenser Mains Incoming Cable Entry (Split System): Cooling Only Unit SM**R-C unit... -
Page 43: Installation Data
Comfort STOREMASTER™ Installation Data POSITIONING The installation position should be selected with the following points in mind: Position on a stable and even base, levelled to ensure that the compressor operates correctly The minimum unit support can be provided by concrete/steel blocks of 300 x 300 wide by 150mm deep to each corner of the rigid steel base ... -
Page 44: Unit Lifting
Chains/slings MUST NOT interfere with the casing or fan assembly to avoid damage Lift the unit slowly and evenly IMPORTANT If the unit is dropped, it should immediately be checked for damage and reported to Airedale. LIFTING DIMENSIONS Packaged Unit (mm) 2100 A = 3.5m Minimum... -
Page 45: Split System
Comfort STOREMASTER™ Installation Data SPLIT SYSTEM Connecting Refrigerant Pipework Sizing Guide Evaporator Condenser Equivalent Pipe Lengths with R410A Section Section In Cooling or Heat Pump Mode Equivalent Length Liquid Discharge 3/4” 1 1/8” 0-15m SM50R-E SM50R-C 7/8” 1 3/8” 15-40m 7/8”... -
Page 46: Electrical
STOREMASTER™ Comfort Installation Data ELECTRICAL General As standard the equipment is designed for 400V, 3 phase, 3 wire 50Hz and a separate permanent 230V, 1 phase, 50Hz supply, to all relevant IEE regulations, British standards and IEC requirements The control voltage to the interlocks is 24V, always size the low voltage interlock and protection cabling for a maximum voltage drop of 2V ... -
Page 47: Interconnecting Wiring
Comfort STOREMASTER™ Installation Data INTERCONNECTING WIRING Cooling Only - Typical Example Packaged Unit & Mains incoming supply 400V / 3 PH / 50Hz Split System Evaporator Section Separate Permanent Supply 230V / 1 PH +N / 50Hz (Option) ... - Page 48 STOREMASTER™ Comfort Installation Data INTERCONNECTING WIRING Heat Pump - Typical Example Packaged Unit & Split System Evaporator Mains incoming supply 400V / 3 PH / 50Hz Section Separate Permanent Supply 230V / 1 PH +N / 50Hz (Option) ...
- Page 49 Comfort STOREMASTER™ pLAN Termination Note: The plugged termination ensures that the connections are made simultaneously. Failure to attach the cables this way may cause damage to the controller. Comfort Range Technical Manual : 6678403 V1.7.0_ 11_2015...
- Page 50 STOREMASTER™ Comfort NOTES: Comfort Range Technical Manual : 6678403 V1.7.0_ 11_2015...
- Page 51 Comfort STOREMASTER™ W here to Fin d U s Head Office: Airedale International Air Conditioning Ltd Leeds Road Rawdon Leeds LS19 6JY United Kingdom Tel: +44 (0) 113 239 1000 Fax: +44 (0) 113 250 7219 e-mail: enquiries@airedale.com website: www.airedale.com...
