RADLEY 1346-801 Owner's Manual

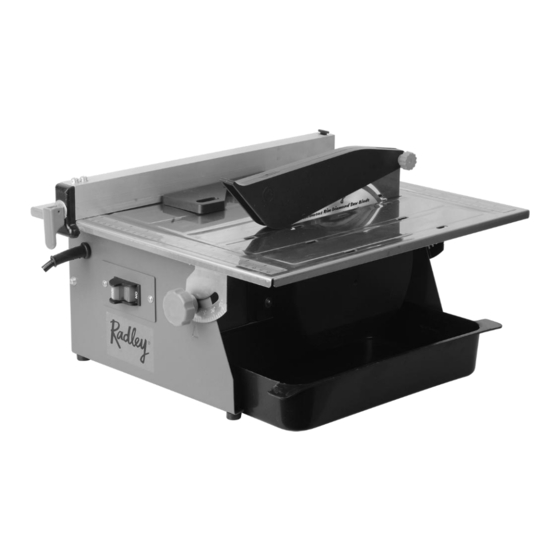

7" wet tile saw
Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1346-801 and is the answer not in the manual?

Questions and answers

Related Manuals for RADLEY 1346-801

Summary of Contents for RADLEY 1346-801

  • Page 1 OWNER’S MANUAL...

  • Page 2: Need Assistance

    7” WET TILE SAW Rating 120V~ 60 Hz, 5.8 Amp Brushless induction motor Wheel Diameter No Load Speed 3450 RPM Wheel Arbor 5/8” Maximum Depth of Cut 1-1/4” (3.2cm) @ 90° & 11/16” (1.7cm) @ 45° Maximum Cutting Angle ° Table Dimensions 15.5”...
  • Page 3 Product Specifications ..................1 Table of Contents ....................2 General Safety Warnings ................. 3-6 Specific Safety Rules ................... 6 Safety Symbols ..................... 7 Know your tile saw ....................9 Assembly and Operation ................10-11 Maintenance ......................12 Trouble shooting ....................12 Exploded view ....................
  • Page 4 WARNING: SYMBOL MEANING ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA Z94.3 or ANSI SAFETY STANDARD Z87.1 FLYING DEBRIS can cause permanent eye damage. Prescription eyeglasses ARE NOT a replacement for proper eye protection. Non-compliant eyewear can cause serious injury if broken during the operation of a power tool.
  • Page 5 KNOW YOUR POWER TOOL. Read the operator’s manual carefully. Learn the saw’s applications and limitations as well as the specific potential hazards related to this tool. GUARD AGAINST ELECTRICAL SHOCK BY PREVENTING BODY CONTACT WITH GROUNDED SURFACES. For example, pipes, radiators, ranges, refrigerator enclosures. KEEP GUARDS IN PLACE and in good working order.
  • Page 7 NEVER TOUCH BLADE or other moving parts during use. NEVER START A TOOL WHEN ANY ROTATING COMPONENT IS IN CONTACT WITH THE WORKPIECE. DO NOT OPERATE A TOOL WHILE UNDER THE INFLUENCE OF DRUGS, ALCOHOL, OR ANY MEDICATION. WHEN SERVICING use only identical replacement parts. Use of any other parts may create a hazard or cause product damage.
  • Page 8 The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use. WARNING: Please read all the safety and operating instructions carefully before using this tool. Please pay particular attention to all sections of this User Guide that carry warning symbols and notices. Some of the following symbols may be used on this tool.

  • Page 9: Electrical Connection

    MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. MINIMUM GAUGE (AWG) EXTENSION CORD (120 V use only) Amperage rate Total length More than Not more 25' (7.5 m) 50' (15 m) 100' (30 m) 150' (45m) than...
  • Page 10 POSITION OF THE TILE SAW To avoid the possibility of the tool plug or outlet getting wet, position tile saw to one side of a wall-mounted outlet to prevent water from dripping onto the outlet or plug. The operator should arrange a “drip loop” in the cord connecting the saw to the outlet.

  • Page 12: Making A Mitre Cut

    WARNING: The scale rules are for reference only. For improved Fig.4 accuracy it is advised that a secondary rule should be used. Position the tile firmly against the rip fence and pass through the blade in a smooth action. Do not force the tile to be cut too quickly. MAKING A MITRE CUT Follow the same procedure for a straight cut but employ the mitre guide in conjunction with parallel guide fence (fig.5).
  • Page 15 Any attempt to repair or replace electrical parts on this saw may create a safety hazard unless repairs are performed by a qualified technician. For more information, call the Toll-free Helpline, at 1-866-349-8665. Always order by PART NUMBER, not by key number. 1346-801-001 Screw M4×25 1346-801-002 Washer...
  • Page 16 1346-801-030 Washer 1346-801-031 Washer 1346-801-032 Tightening Lever 1346-801-033 Cylindrical pin 3×16 1346-801-034 Spring Washer 1346-801-035 Ground Terminal 1346-801-036 Washer 1346-801-037 Cord 1346-801-038 Motor 1346-801-039 Cable Clamp 1346-801-040 Screw ST2.9×10 1346-801-041 Cord clamping 1346-801-042 Self-locking switch 1346-801-043 Screw M4×6 1346-801-044 Tightening knob...
  • Page 17 Wet Tile Saw If this Radley tool fails due to a defect in material or workmanship within three years from the date of purchase, return it to any Home Hardware store with the original bill of sale for exchange. Two years for battery and charger. This warranty does not include expendable parts including but not limited to blades, brushes, belts, and light bulbs.
  • Page 18 Owner’s Manual...
