Summary of Contents for Subaru CROSSTREK 2019

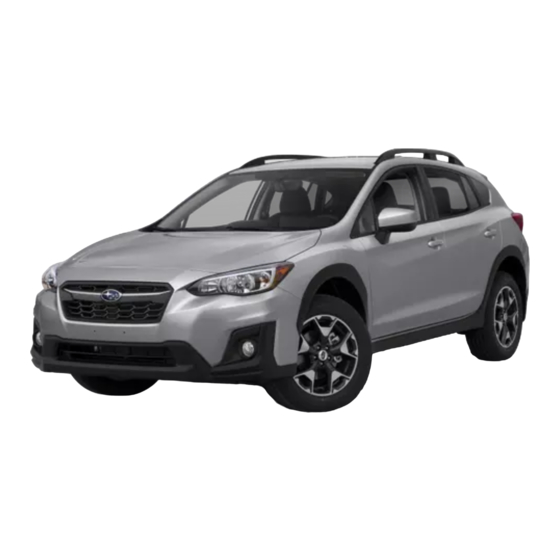

- Page 1 Quick Guide CROSSTREK 2019 Love. It’s what makes a Subaru, a Subaru.
- Page 2 Guide is optional at extra cost. Specific options may be available only in combination with other options. Specific combinations of equipment or features may vary from time to time, and by geographic area. Subaru of America, Inc. reserves the right to change or discontinue at any time, without notice: Prices,...
-
Page 3: Table Of Contents
Table of Contents Getting Started Instrument Panel Gauges 8-11 Personalize 12-13 14-19 Controls 20-21 While Operating Safety/In Case of Emergency 22-23 Additional Information 24-26... - Page 4 Remote Keyless Entry Lock/Arm Unlocking the Rear Gate • Press to lock all doors and the rear • Press to unlock the rear gate. An gate and activate the security alarm. electronic chirp will sound twice and the hazard lights will flash twice. •...
- Page 5 Seating Seat Controls Forward/Backward Pull up on the lever below the front of the driver’s seat to move the seat forward or backward. Raise/Lower Seat Cushion To adjust the height of the driver’s seat, pull up or push down the seat height adjustment lever, located on the lower left side front of the seat.
- Page 6 Seating Power Driver’s Seat (if equipped) Forward/Backward, Angle and Height Move the switch toward the front or rear to move the seat forward or backward. Pull the switch up or push down on the front of the switch to adjust the angle of the seat cushion. Pulling the switch straight up or pushing the switch straight down will adjust the height of the entire seat cushion.
- Page 7 Folding the Rear Seat Lower the headrests. Pull up on the release knob on the seat side that you want to fold down. To return the seatback to its original position, raise the seatback until it locks into place, making sure that it is securely locked.
-
Page 8: Instrument Panel
Instrument Panel PAGE 14, 20 8-11 NUMBER... - Page 9 16-17 Clock Press the “+” button to advance the time or the “–” button to reverse the time. Vehicles with a navigation system, please refer to the separate “Operating Instructions for Navigation System.”...
- Page 10 Gauges - Vehicles without EyeSight Select lever/Gear position indicator Immediate Attention Caution Informational Tachometer Brake system Seatbelt warning Hot coolant temperature/ Front passenger Cold coolant temperature seatbelt warning High beam indicator light SRS airbag system AT OIL TEMP Security indicator light (Automatic Transmission) ABS warning Door open...
- Page 11 Trip meter and odometer Speedometer Fuel gauge ECO gauge Keyless Access with Push Button Start System Vehicle Dynamics Control OFF (if equipped) CHECK ENGINE/ Turn signals Malfunction indicator Front fog light indicator Tire pressure warning light light (if equipped) Front passenger frontal airbag ON Hill descent control (Located on overhead console) (if equipped)
- Page 12 Gauges - Vehicles with EyeSight Tachometer Combination meter display Immediate Attention Caution Informational Select lever/Gear position indicator Brake system Seatbelt warning Hot coolant temperature/ Front passenger Cold coolant temperature seatbelt warning High beam indicator light SRS airbag system AT OIL TEMP Security indicator light (Automatic Transmission) ABS warning...
- Page 13 Trip meter and odometer Fuel gauge Speedometer Pre-Collision Braking Vehicle Dynamics Control OFF System OFF light CHECK ENGINE/ Lane Departure Warning Malfunction indicator OFF light Keyless Access with Tire pressure warning light Push Button Start System (if equipped) Front passenger frontal airbag ON Turn signals (Located on overhead console) Front fog light indicator...
-
Page 14: Personalize
Personalize Tilt and Telescopic Steering Column Pull the lever down firmly to adjust the height and lengthwise position of the column; firmly push the lever back up to lock the column in place. Do not adjust while driving. Power Exterior Mirrors Turn the knob to the “L”... - Page 15 The HomeLink 5 accessory mirror provides three buttons to replace up to three hand-held radio frequency remotes used to activate devices such as garage door openers, gate openers, entry door locks, security systems and home lighting. Please see your Owner’s Manual for programming instructions or visit www.subaru.com/homelink to view a how-to video.
-
Page 16: Controls
Controls Light Controls Push forward to change from low Turns on headlights, instrument beam to high beam. Pull the lever panel illumination, parking lights, back to center to return to low beam. tail lights and license plate lights. Push slightly up for lane change or fully up for right turn signal. - Page 17 INT. HIGH Windshield Wipers To turn on the wipers, press the wiper control lever down one level for intermittent, two levels for low, or three levels for high speed. Return the lever to the “OFF” position to stop the wipers. For a single wipe, move the lever up. To spray washer fluid, pull and hold the lever toward you.
- Page 18 Controls Manual Climate Control System (if equipped) Air Flow Control Dial Fan Speed Control Dial The air flow control dial allows you to Rotate the fan speed control dial to select choose the direction of air flow. Rotate one of four fan speeds. the dial for the desired air flow position.
- Page 19 Automatic Climate Located in the multi-function Control System display; top center of dash (if equipped) Automatic On and Off This system automatically controls knob to select one of seven outlet air temperature, fan speed, different fan speed positions. air flow distribution, air inlet control, Air Flow Mode Selection Dial and air conditioner compressor Turn the “MODE”...
- Page 20 Controls Controls Steering Wheel Audio Controls (if equipped) With any of the radio modes selected, press the left or right arrow button to toggle through your presets. In CD mode, press the buttons to skip forward or back a track. Push the switch up (+) to increase volume or down (–)
- Page 21 Cruise Control To activate the cruise control, press the “ ” button. The indicator light on the To resume your speed after instrument panel will turn on. canceling, push the switch To deactivate cruise control, to the “RES” side. press the “ ”...
-
Page 22: While Operating
While Operating Instrument Panel Switches (lower left) Please refer to your Owner’s Manual for details on these switches. Steering Responsive Headlights OFF switch (if equipped) Traction Mode/Vehicle Dynamics Control OFF switch Blind Spot Detection/Rear Cross Traffic Alert OFF switch (if equipped) Paddle Shift Control Switches (if equipped) •... - Page 23 Automatic Transmission Shift Mode The automatic transmission gives you ultimate control with two different driving modes: Normal Mode and Manual Mode. Normal Mode When the selector lever is in the “D” (Drive) position, the transmission is in Normal shift mode. The shift position indicator on the instrument panel shows “D”, and the transmission automatically shifts into a suitable forward gear.
-
Page 24: Safety/In Case Of Emergency
Safety/In Case of Emergency Child Restraint System Your vehicle is equipped with Lower Anchors and Tethers for Children (LATCH). For maximum safety, first carefully read the LATCH system instructions from the device manufacturer, as well as the installation instructions in your Owner’s Manual, to properly install the LATCH compatible restraint system. - Page 25 AWD vehicle. If service requests or claims resulting towing is necessary, it is best from: accidents, vandalism, acts of done by your Subaru Retailer or a God, violation of any laws, misuse and commercial towing service. abuse, or vehicle modifications not recommended by the manufacturer.
-
Page 26: Additional Information
Additional Information Fuel • Use regular unleaded gasoline with an octane rating of 87 AKI or higher. Consult the Owner’s Manual for more detailed information. Fuel Capacity • 16.6 US gal (63 liters, 13.9 Imp gal) • When the low fuel indicator light is displayed on the instrument panel, approximately 2.5 US gal (9.5 liters, 2.1 Imp gal) of fuel remain. - Page 27 Engine Oil Use only the following oils: • ILSAC GF-5, which can be identified with the ILSAC certification mark (Starburst mark). • Or API classification SN with the words “RESOURCE CONSERVING.” - Use 0W-20 synthetic, replacement interval 6,000 miles under normal driving conditions.
- Page 28 Engine Compartment Please refer to your Owner’s Manual for more information. 2.0i Engine Brake Fluid Reservoir Engine Oil Filler Cap Main Fuse Box Engine Coolant Reservoir Battery Engine Oil Filter Windshield Washer Tank Engine Oil Dipstick Radiator Cap Air Cleaner Element...
- Page 29 Notes...
- Page 30 Notes...
- Page 31 One Subaru Drive Camden, NJ 08103-9800 MSA5B1907A Issued May 2018 Printed in USA 05/18...
