GV-AS8111 Kit

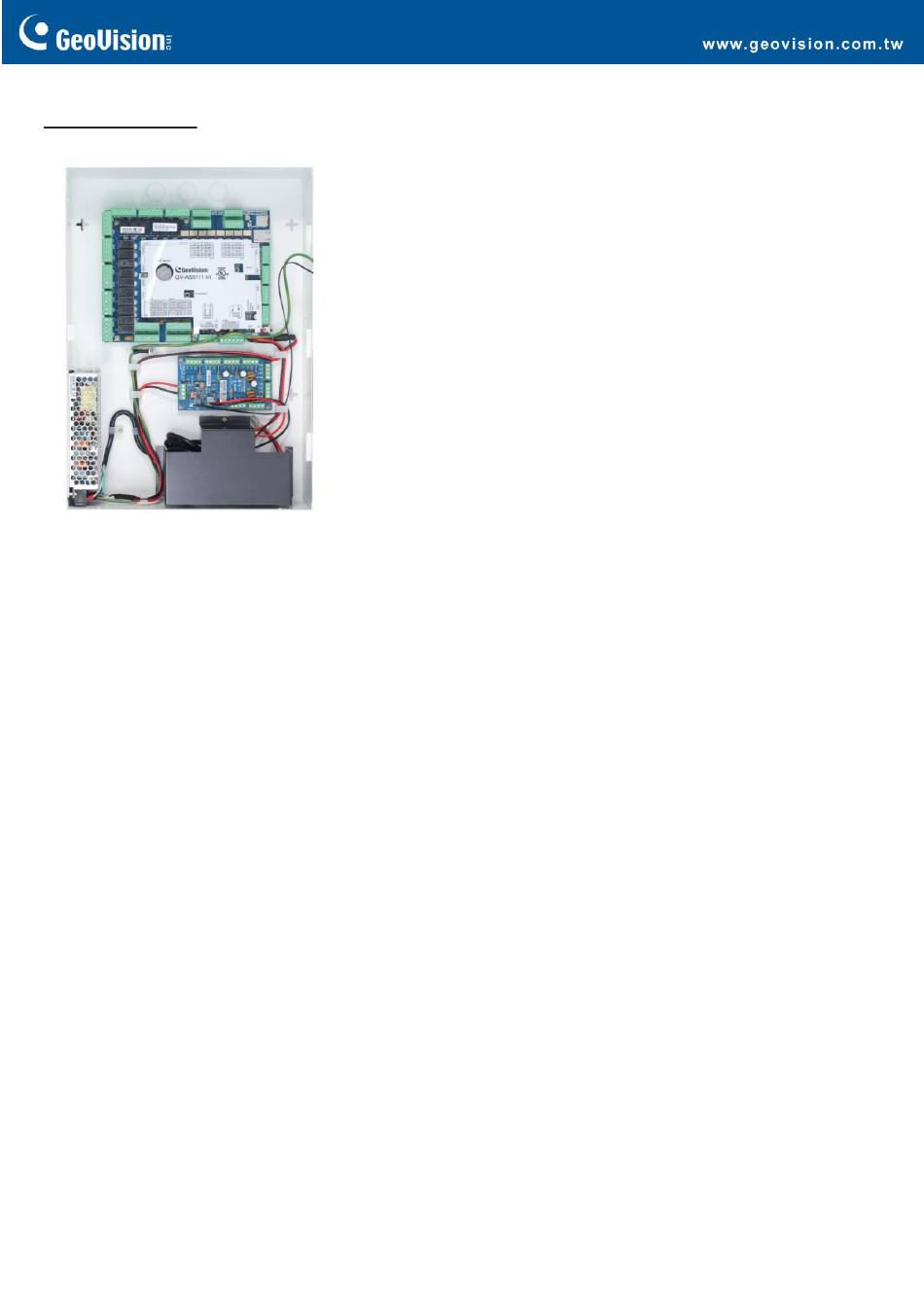

The GV‐AS8111 Kit is a cabinet that contains a GV-AS8111 control panel, a power adapter board, a power supply and a backup battery
case. The power supply powers the GV-AS8111 Kit as well as up to 8 output devices (12V, 0.5A per device).

Key Features

•
One-way control: 8 doors
•
Two-way control:
- 4 doors by Wiegand only;
- 8 doors by RS-485 or network;
- 8 doors with max 4 doors by Wiegand and other doors by RS-485 or network
•
8 Wiegand card readers of 26 to 64 bits
•
16 GV-Readers and GV-GF Fingerprint Readers through RS-485 or network
•
Built-in 16 digital inputs and 24 relay outputs
•
Suitable for doors, parking gates ,and elevator call buttons
•
Tampering alarm
•
UL 294 compliance

Packing List

•
GV-AS 8111 Kit (US standard or EU standard)
•
Iron box key
•
Iron box screw x 6
•
Self-adhesive cable tie mounts x 6
•
Battery wiring
•
Micro SD Card 2 GB
•
Software CD
•
Warranty Card
GV-AS8111 Kit
