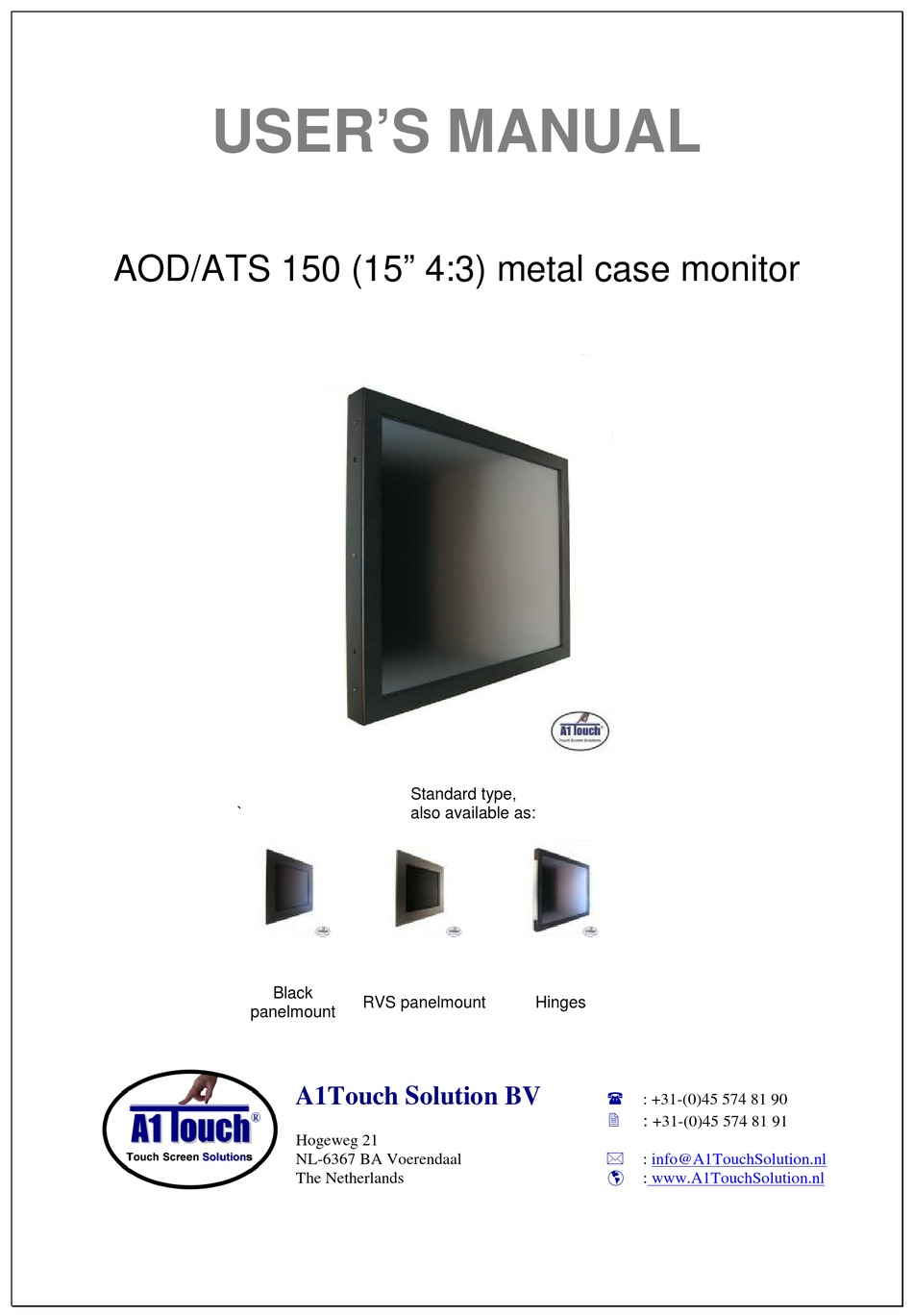

USER'S MANUAL
AOD/ATS 150 (15" 4:3) metal case monitor
`
Black
panelmount
Standard type,
also available as:
RVS panelmount
A1Touch Solution BV
Hogeweg 21
NL-6367 BA Voerendaal
The Netherlands
Hinges
: +31-(0)45 574 81 90
:
+31-(0)45 574 81 91
:
info@A1TouchSolution.nl
:
www.A1TouchSolution.nl
Advertisement
Table of Contents
Related Manuals for A1 Touch ATS 150
Summary of Contents for A1 Touch ATS 150
- Page 1 USER’S MANUAL AOD/ATS 150 (15” 4:3) metal case monitor Standard type, also available as: Black RVS panelmount Hinges panelmount A1Touch Solution BV : +31-(0)45 574 81 90 +31-(0)45 574 81 91 Hogeweg 21 NL-6367 BA Voerendaal info@A1TouchSolution.nl ...
-
Page 2: Table Of Contents
Contents: 1. Monitor User’s Manual 1.0. Connection to the monitor 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting 1.10. Drawing 2. -
Page 3: Monitor User's Manual
Plug and Play Function AOD/ATS 150 can be installed and connected automatically to any computer systems without driver CD or software programs. Monitor will recognize the optimized value of video mode by DDC(Display Data Channel) method that makes the graphic card of computer to communicate with the monitor. -
Page 4: Safety Precaution
Safety Precaution We strongly recommend that you carefully read this User’s Manual before operating your LCD monitor. FOLLOW INSTRUCTIONS in this manual. Please read and comprehend all using directives before use this machine. • Power Use the type of power indicated on the marking label. •... -
Page 5: Osd Menu
1.6 OSD Menu OSD STRUCTURE ITEM Sub Menu Description Value Brightness Adjust the backlight level of screen 50(0~100) Contrast Increase/ decrease picture contrast 50(0~100) Sharpness Control the clarity of details of pictures 2(0 ~ 4) H Position Adjust picture horizontal position 50(0~100) Picture V Position... -
Page 6: Specifications
1.7 Specifications Color panel: Black powder Coated (other colors on request) Model: 15 inch XGA TFT LCD Monitor 15" Color Active Matrix TFT LCD Type: (AUO G150XG03 V5) Resolution (max): 1024 x 768 (XGA) Color: 16,2 miljoen Pixel: 0.297 x 0.297 mm Brightness: 350 cd/m²... -
Page 7: Contents Of The Retail Package
Contents of the Retail Package Monitor AC/DC Adapter (not 24V) Power cord VGA Cable (option) DVI Cable Touch Driver (option) Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. •... -
Page 8: Drawing
1.10 Drawing Page 8... -
Page 9: Touch Options
2. Touch Options Touch-options related to monitor size Resistive PROJ. Optical Touch 4Wire 5Wire Dual protected Touch 185” Aviable Not aviable On demand Option: 5-Wire-touchscreen 5 wire-touchscreen non glare is standard, glare is option Chemical resistance Acetone, ammonia-based glass cleaners, hexane, isopropyl alcohol, methylene chloride, mineral spirits, turpentine, methyl ethyl ketone Vibration... -
Page 10: Cap Touchscreen
vinegar. Electrostatic discharge protection pr EN 61000-4-2, 1995: meets level 4 (15 kV air /8kV contact discharges) Activation force less then 85gr Position accuracy Standard deviation of error is less then ±1% Life performance >50.000.000 (finger) Input modus Finger or glove hand (rubber, cloth, leather) Surface durability Optical glass surface, Mohs' hardness rating : 7 Light transmission... -
Page 11: Projected Capacitive
Option: 10 pts Projected-capacitive-touchscreen Projected capacitive sensor Float laminated glass, glare is standard, tempered is option. Glass Glass with black borders on back surface. Chemical resistance Acetone, ammonia-based glass cleaners, hexane, isopropyl alcohol, methylene chloride, mineral spirits, turpentine, methyl ethyl ketone, gasoline, kerosene, vinegar. Contact bounce Around 5 ms for finger contact Activation force... -
Page 12: Touchkit
3. Touch Options Touchkit Features for Touchkit software Calibration Fast full oriental 4 points position Compensation Accuracy 25 points linearity compensation. Draw Test Position and linearity verification Extend Feature 1. Support monitor / display rotation 2. Support multiple monitor / display 3. -
Page 13: Mounting
4. Mounting overzicht 4.1. Plain 4.2. Brackets 4.3. Panel mounting 4.4. Wall mounting Plain Metal case monitor Brackets Metal case monitor + 2x brackets Panel-mounting Metal case monitor + bezel + 2x brackets Page 13... -
Page 14: On-Wall Mounting
On-Wall mounting Metal case monitor + New Star TV Wallmount (FPMA-W115) In-Wall mounting 19 inch Rack mounting Page 14...
