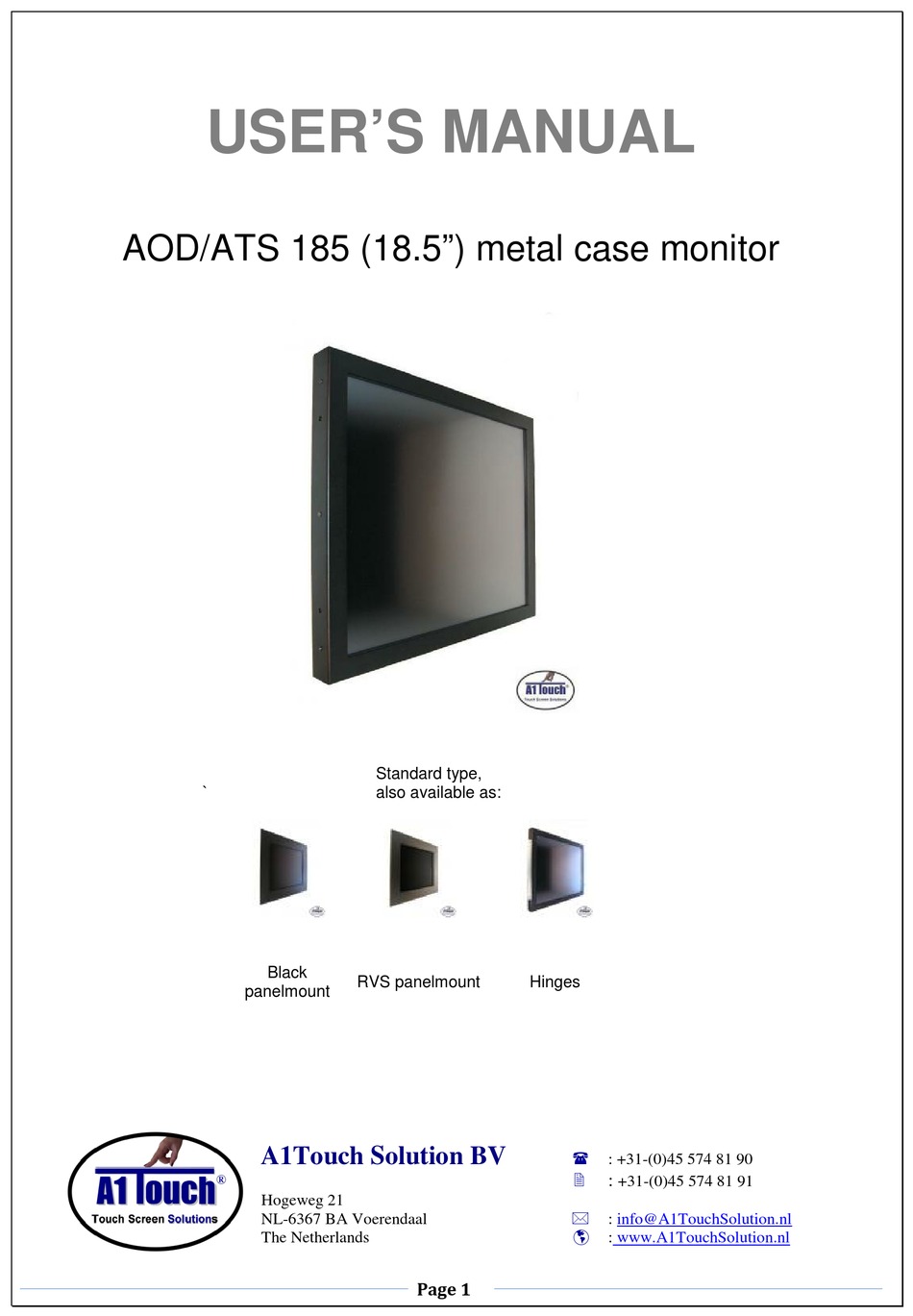

USER'S MANUAL
AOD/ATS 185 (18.5") metal case monitor
`
Black
panelmount
A1Touch Solution BV
Hogeweg 21
NL-6367 BA Voerendaal
The Netherlands
Standard type,
also available as:
RVS panelmount
Hinges
Page 1
: +31-(0)45 574 81 90
:
+31-(0)45 574 81 91
:
info@A1TouchSolution.nl
:
www.A1TouchSolution.nl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AOD 185 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for A1 Touch AOD 185

Summary of Contents for A1 Touch AOD 185

  • Page 1 USER’S MANUAL AOD/ATS 185 (18.5”) metal case monitor Standard type, also available as: Black RVS panelmount Hinges panelmount A1Touch Solution BV  : +31-(0)45 574 81 90  +31-(0)45 574 81 91 Hogeweg 21  NL-6367 BA Voerendaal info@A1TouchSolution.nl  The Netherlands www.A1TouchSolution.nl Page 1...

  • Page 2: Table Of Contents

    Contents: 1. Monitor User’s Manual 1.0. Connection to the monitor 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting 1.10. Drawing 2.

  • Page 3: Monitor User's Manual

    1. Monitor User’s Manual Connection To the Monitor Installation • Connect the signal(VGA) cable to the VGA port of computer. Tighten the two thumbscrews by turning clockwise. • You can adjust the connection for your PC environment. • Plug the DC cord of the AC adapter to the power connector and the plug the end of AC adapter to and electrical outlet socket(110V/220V) •...

  • Page 4: Osd (On-Screen-Menu)

    • Adapter Only use an adapter designed of the LCD monitor. • Plug Do not remove any of the prongs of the monitor's three-pronged power plug. Disconnect the power plug from the AC outlet if you will not use it for an indefinite period of time. •...

  • Page 5: Osd Menu

    OSD Menu OSD Menu Description Remarks Brightness Adjust the brightness of the screen Contrast Adjust the contrast of the screen Adjust the horizontal position of the H.Position screen’s image Adjust the vertical position of the screen’s Picture V.Position image Only Phase Adjust the focus of the screen’s image usable on...

  • Page 6: Specifications

    Specifications AOD185W VGA+DVI, 18.5 inch metal case monitor with 5 wire non glare resistive touch Black powdered cover. Model: M185XTN01.2 (AUO) Type: 18.5 inch, 16:9 Color Active Matrix TFT LCD Resolution (max): 1366 x 768 Color: 16,7 million Pixel: 0.248mm x 0.248mm X RGB Brightness: 250 cd/m²...

  • Page 7: Troubleshooting

    Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. • The monitor does not respond after you turn on the system. • Make sure that the monitor is turned on. •...

  • Page 8: Drawing

    Drawing Page 8...

  • Page 9: Touch Options

    2. Touch Options Touch-options related to monitor size Resistive PROJ. Optical Touch 4Wire 5Wire Dual protected Touch 185” Aviable Not aviable On demand Option: 5-Wire-touchscreen 5 wire-touchscreen non glare is standard, glare is option Chemical resistance Acetone, ammonia-based glass cleaners, hexane, isopropyl alcohol, methylene chloride, mineral spirits, turpentine, methyl ethyl ketone Vibration...

  • Page 10: Cap Touchscreen

    Electrostatic discharge protection pr EN 61000-4-2, 1995: meets level 4 (15 kV air /8kV contact discharges) Activation force less then 85gr Position accuracy Standard deviation of error is less then ±1% Life performance >50.000.000 (finger) Input modus Finger or glove hand (rubber, cloth, leather) Surface durability Optical glass surface, Mohs' hardness rating : 7 Light transmission...

  • Page 11: Projected Capacitive

    Option: Projected-capacitive-touchscreen Projected capacitive sensor Heat tempered glas, glare is standard, non glare is option Glass Tempered glass with ceramic black borders, C-grinded, r=2mm Chemical resistance Acetone, ammonia-based glass cleaners, hexane, isopropyl alcohol, methylene chloride, mineral spirits, turpentine, methyl ethyl ketone, gasoline, kerosene, vinegar. Contact bounce Around 5 ms for finger contact Break resistance...

  • Page 12: Touchkit

    3. Touch Options Touchkit Features for Touchkit software Calibration Fast full oriental 4 points position Compensation Accuracy 25 points linearity compensation. Draw Test Position and linearity verification Extend Feature 1. Support monitor / display rotation 2. Support multiple monitor / display 3.

  • Page 13: Mounting

    4. Mounting overzicht 4.1. Plain 4.2. Brackets 4.3. Panel mounting 4.4. Wall mounting Plain Metal case monitor Brackets Metal case monitor + 2x brackets Panel-mounting Metal case monitor + bezel + 2x brackets Page 13...

  • Page 14: Wall Mounting

    Wall mounting Metal case monitor + New Star TV Wallmount (FPMA-W115) Page 14...
