Dometic CoolFreeze CFX40 Operating Manual

Compressor cooler
Hide thumbs Also See for CoolFreeze CFX40:
Table of Contents

Advertisement

Quick Links

Download this manual
Compressor Cooler
EN
Operating manual . . . . . . . . . . . . . . . 5
Glacière à compression
FR
Notice d'utilisation . . . . . . . . . . . . . . 26
Nevera por compresor
ES
Instrucciones de uso . . . . . . . . . . . . 47

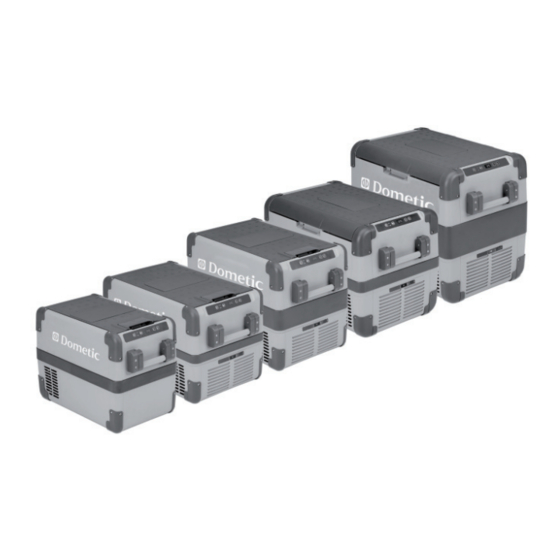

CFX 35
CFX 28
CoolFreeze CFX28,
CFX35, CFX40,
CFX50, CFX65,
CFX65DZ
CFX 65, CFX 65 DZ
CFX 50
CFX 40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoolFreeze CFX40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dometic CoolFreeze CFX40

Summary of Contents for Dometic CoolFreeze CFX40

  • Page 1 Compressor Cooler Operating manual ....5 Glacière à compression Notice d’utilisation ....26 CFX 65, CFX 65 DZ Nevera por compresor CFX 50...
  • Page 2 CFX28 – CFX65DZ CFX28, CFX35, CFX40 CFX50, CFX65, CFX65DZ – °...
  • Page 3 CFX28 – CFX65DZ 100-240V~AC 12/24V DC NORMAL EMERGENCY OVERRIDE CFX50, CFX65, CFX65DZ...
  • Page 4 CFX28 – CFX65DZ...

  • Page 5: Table Of Contents

    CFX28 – CFX65DZ Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.

  • Page 6: Explanation Of Symbols

    Explanation of symbols CFX28 – CFX65DZ Troubleshooting........23 Disposal .

  • Page 7: Safety Instructions

    CFX28 – CFX65DZ Safety instructions Safety instructions General safety WARNING!  Do not operate the device if it is visibly damaged.  If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.

  • Page 8: Operating The Device Safely

    Safety instructions CFX28 – CFX65DZ  Only connect the device as follows: – With the DC cable to a DC plug socket in the vehicle (e. g. cigarette lighter) – Or with the 120 V connection cable to the 120 V AC mains supply ...

  • Page 9: Scope Of Delivery

    CFX28 – CFX65DZ Scope of delivery Scope of delivery The scope of delivery is shown in fig. 1, page 2. Item Quantity Description Cooler Connection cable for 12/24 Vg connection Connection cable for 120 V connection – Operating manual Accessories Available as accessory (not included in scope of delivery): Designation Item no.

  • Page 10: Intended Use

    Intended use CFX28 – CFX65DZ Intended use The cooler is suitable for cooling and freezing foods. The device is also suitable for use on boats. The device is designed to be operated from a 12 V or 24 V on-board supply socket of a vehicle (e. g. cigarette lighter), boat or RV as well as from a 120 V AC mains.

  • Page 11: Function Description

    CFX28 – CFX65DZ Function description Function description The cooler can chill products, keep them cool as well as freeze them. A low maintenance refrigerant circuit with compressor provides the cooling. The generous insulation and powerful compressor ensure efficient and fast cooling.

  • Page 12: Operating And Display Elements

    Function description CFX28 – CFX65DZ Operating and display elements Latch for lid: fig. 2 1, page 2 Operating panel (fig. 3, page 2) Item Description Explanation Switches the cooler on or off when the button is pressed for between one and two seconds “P Status indication POWER...

  • Page 13: Operation

    CFX28 – CFX65DZ Operation Emergency switch (when fitted) and USB port (fig. 5, page 3) Item Description Emergency switch USB port for power supply Operation Before initial use NOTE Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance”...

  • Page 14: Energy Saving Tips

    Operation CFX28 – CFX65DZ Selecting the temperature units Temperature display units can be switched between Celsius and Fahrenheit as follows: ➤ Switch on the cooler. ➤ Press the “SET” button (fig. 3 4, page 2) twice. ➤ Use the “+” (fig. 3 7, page 2) or “–” (fig. 3 6, page 2) buttons to select Celsius or Fahrenheit.

  • Page 15: Using The Battery Monitor

    CFX28 – CFX65DZ Operation Connecting to a 120 V AC mains (e.g. in the home or office) DANGER! Danger of electrocution!  Never handle plugs and switches with wet hands or if you are standing on a wet surface.  If you are operating your cooler on board a boat from a mains connection of 120 Vw, you must install a residual current circuit breaker between the 120 Vw mains and the cooler.
  • Page 16 Operation CFX28 – CFX65DZ In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and “MED” (see the following table). Battery monitor mode HIGH 10.1 V 11.4 V 11.8 V Switch-off voltage at 12 V 11.1 V 12.2 V 12.6 V Restartvoltage at 12 V...

  • Page 17: Using The Cooler

    CFX28 – CFX65DZ Operation Using the cooler NOTICE! Danger of overheating! Ensure at all times that there is sufficient ventilation so that the heat that is generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

  • Page 18: Setting The Temperature

    Operation CFX28 – CFX65DZ NOTE Displayed temperature  CFX28, CFX35, CFX40, CFX50, CFX65: The temperature displayed is that of the large interior compartment (e.g. CFX50, CFX65: fig. 7 1, page 4).  CFX65DZ: – With fridge/freezer divider in: The temperature displayed is that of the freezer compartment (fig.

  • Page 19: Using The Emergency Switch (Where Fitted)

    CFX28 – CFX65DZ Operation Using the emergency switch (where fitted) The emergency switch (fig. 5 1, page 3) is located below the control panel on all models except CFX28 where it is located above the power inlet sockets. For normal operation the switch is in the “NORMAL USE” position. ➤...

  • Page 20: Defrosting The Cooler

    Operation CFX28 – CFX65DZ 7.10 Defrosting the cooler Humidity can form frost in the interior of the cooling device or on the evapo- rator. This reduces the cooling capacity. Defrost the device in good time to avoid this. NOTICE! Danger of damage! Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

  • Page 21: Replacing The Plug Fuse (12/24 V)

    CFX28 – CFX65DZ Operation 7.12 Replacing the plug fuse (12/24 V) ➤ Pull the adapter sleeve (fig. 9 4, page 4) off of the plug. ➤ Unscrew the screw (fig. 9 5, page 4) out of the upper half of the housing (fig.

  • Page 22: Cleaning And Maintenance

    Cleaning and maintenance CFX28 – CFX65DZ Cleaning and maintenance WARNING! Always disconnect the device from the power supply before you clean and service it. NOTICE! Risk of damage  Never clean the cooler under running water or in dish water. ...
  • Page 23 CFX28 – CFX65DZ Troubleshooting Troubleshooting Fault Possible cause Suggested remedy Device does not func- There is no voltage pres- The ignition must be switched on in most tion, LED does ent in the 12/24 V socket vehicles to apply current to the cigarette not glow.
  • Page 24 Disposal CFX28 – CFX65DZ Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
  • Page 25 CFX28 – CFX65DZ Technical data CFX50 CFX65 CFX65DZ Item no.: 9105306244 9105304050 9105305699 Connection voltage: 12/24 Vg and 120 Vw Rated current: 12 Vg: 7.8 A 12 Vg: 8.2 A 12 Vg: 5.5 A 24 Vg: 3.6 A 24 Vg: 3.8 A 24 Vg: 2.6 A 120 Vw: 0.79 A 120 Vw: 0.83 A...
  • Page 26 Technical data CFX28 – CFX65DZ Test/certificates: 4ZF8 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 27 Dometic (Pty) Ltd. Dometic Branch Office Belgium MEXICO Regional Office Zincstraat 3 Dometic Mx, S. de R. L. de C. V. South Africa & Sub-Saharan Africa B-1500 Halle Circuito Médicos No. 6 Local 1 Unit 6-7 on Mastiff Linbro Park ...
