OST iConverter Installation Manual

iConverter
® Cable Management Kit for 19-Module Chassis
Installation Guide

Product Overview

The 8095-x iConverter Cable Management Kit organizes the routing of fiber and copper
cables providing a secure, clean and orderly installation. The Cable Management Kit is used
with the iConverter 19-Module Chassis. The 8095-1 is used with 19" racks and the 8095-2
is used with 23" racks.
Cable Management Kit consists of the following items:
• Cable Tray with six double-high cable clips
• Two extended mounting brackets with twelve 1/4" 4-40 flat head machine screws
• Two rack mounting screws 1/2" 10/32 truss head machine screws
• 23" mounting bracket (included with the 8095-2 kit only)

Installation Procedure

1) Install/Remove Cable Clips

2) Install Extended Mounting Brackets

3) Install Cable Management Tray
4) Cable Management Tray Operation
1) INSTALL/REMOVE CABLE CLIPS
To install the Cable Clips on the Cable Management Tray, push the pin located on the bottom
of the Cable Clip into the hole on the Cable Management Tray until the pin is fully inserted.
To remove the Cable Clips, pinch the barbs on the pin located on the bottom of the Cable
Clip and pull up on the Cable Clip.
2) INSTALL EXTENDED MOUNTING BRACKETS
New Installation
Install the extended mounting brackets to the sides of the 19-Module chassis as illustrated
in the Figure 1. Use the screws included in the Cable Management Kit.
Page 1

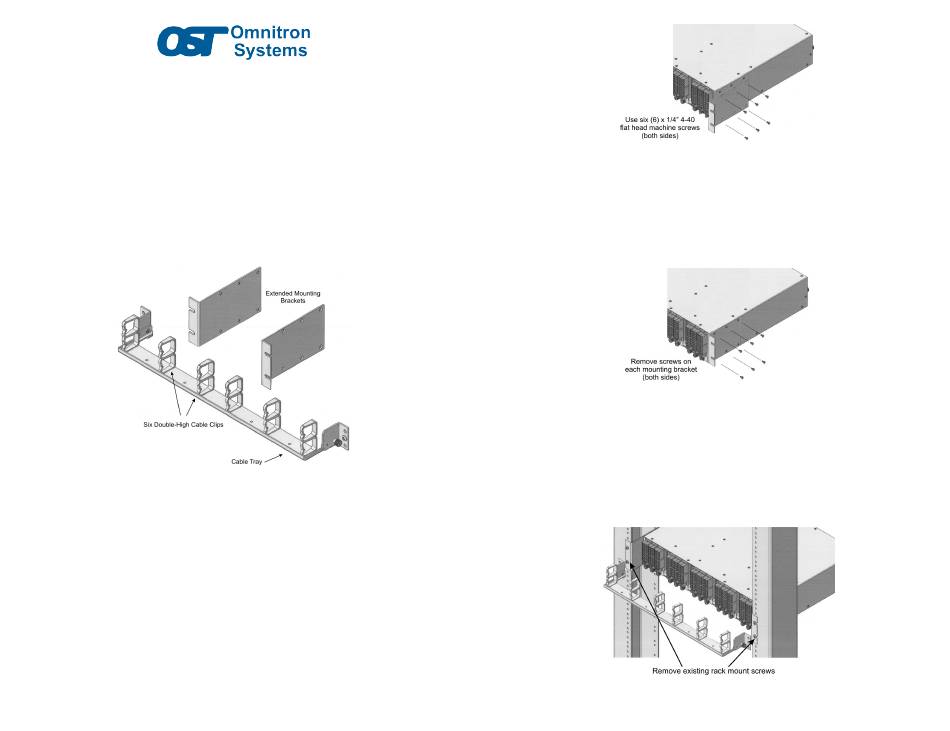

Figure 1: Installation of Extended Mounting Brackets
After the brackets are secured to the chassis, rack-mount the chassis in the equipment rack.
Once the chassis has been secured to the equipment rack, the Cable Management Tray can
be installed per Figure 3.
Upgraded Installation
On an existing 19-Module chassis with standard mounting brackets, remove and replace the
standard mounting brackets with the extended mounting brackets. Remove the six (6) screws
securing the standard mounting bracket to the chassis as illustrated in Figure 2.
Figure 2: Removal of Standard Mounting Brackets
Install the new extended mounting bracket as illustrated in Figure 1. Use the screws included
in the Cable Management Kit.
After the brackets are secured to the chassis, rack-mount the chassis in the equipment rack.
Once the chassis has been secured to the equipment rack, the Cable Management Tray can
be installed per Figure 3.
3) INSTALL CABLE MANAGEMENT TRAY
Remove the lower rack mount screw, if installed, from the extended mounting bracket. It is
important to provide support to the chassis during this operation.
Figure 3: Removal of Rack Mount Screws
