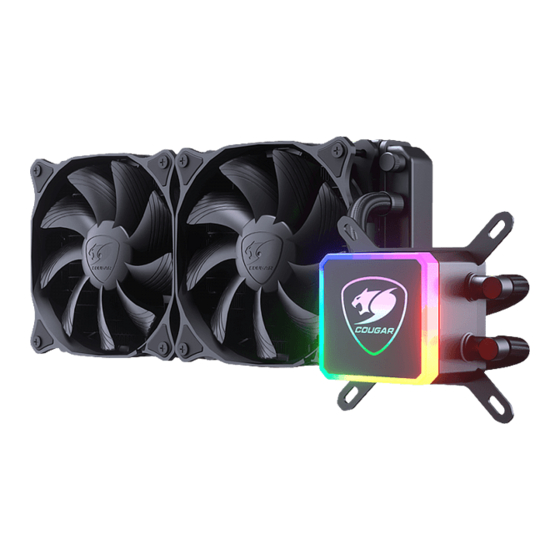

COUGAR POSEIDON LT ARGB 240 User Manual

POSEIDON LT
240
ARGB
SPECIFICATIONS
Product Name POSEIDON LT ARGB 240
Intel Socket LGA 775 / 1155 / 1156 / 1200 / 1366 / 1700 / 2011 / 2066
(Core i3 / i5 / i7 CPU)
CPU Socket
AMD TR4 / AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU
Water Block & Pump
Dimensions (WxDxH) 60 x 60 x 50 mm
Cold Plate Material Copper
Pump Speed 3200 ± 10% R.P.M
Rated Voltage 12 VDC
Rated Current 0.39 A
Power Consumption 4.68 W
Connector SATA & 5V RGB
Radiator
Type 240mm
Dimension (WxDxH) 274 x 120 x 27mm
Material Aluminum
Tubing
Material Durable Rubber with Sleeves
Length 400 mm
Fans
Fan Model VA120 ARGB
Fan Quantity 2
Dimensions (WxDxH) 120 x 120 x 25 mm
Bearing Type Hydraulic bearing
Fan Speed 600-2000 ± 200 R.P.M
Air Flow 74.47 CFM (Max.)
Air Pressure 2.78 mm-H2O (Max.)
Acoustic Noise 39.55 dBA (Max.)
Rated Voltage 12 VDC
Rated Current 0.32 A
Power Consumption 3.36 W ± 10%
Cable Length Fan power: 600 mm
Connector & Control 4 Pin PWM
The above specifications may vary by country or region
PACKAGE CONTAINS
POSEIDON LT ARGB 240 x 1 VA120 ARGB x 2 Wireless Controller x1
Mounting Kit x 1 1 to 2 Fan Splitter x 1 User Manual x 1
INSTALL CONTENTS
A VA120 ARGB x 2 B-1 Backplate x 1 B-2 Backplate x 1
LGA 115X / 1200 / 1366 /
775 / 20XX
D AMD TR4 Bracket x 1 E Backplate Screw x 4 F Fan Screw x 8
H I Spacer x 4 J Standoff x 4
Nut x 4
L Screw x 4 M Screw x 4 N Radiator Screw x 8 O 1 to 2 Fan Splitter x 1
for B-1 Backplate for B-2 Backplate
Intel
LGA20XX
G
PREPARATION
Intel
C AMD Bracket x 1
LGA 1700
G Thermal Paste x 1
K AMD Bracket Screw x 2
P Wireless Controller x1
Intel
LGA1700
H
L
G
LGA115X / 1200 / 1366 / 775
G
1 2
L G A 7 7 5
L G A 11 5 X / 1 2 0 0
L G A 1 3 6 6
E
B-1
AMD
1
H
M
B-2
LGA1700
H
J
I
B-1
INTEL
E
2
C
2
H
K
1
G
