Rockford Fosgate CPC05 Installation And Application Manual

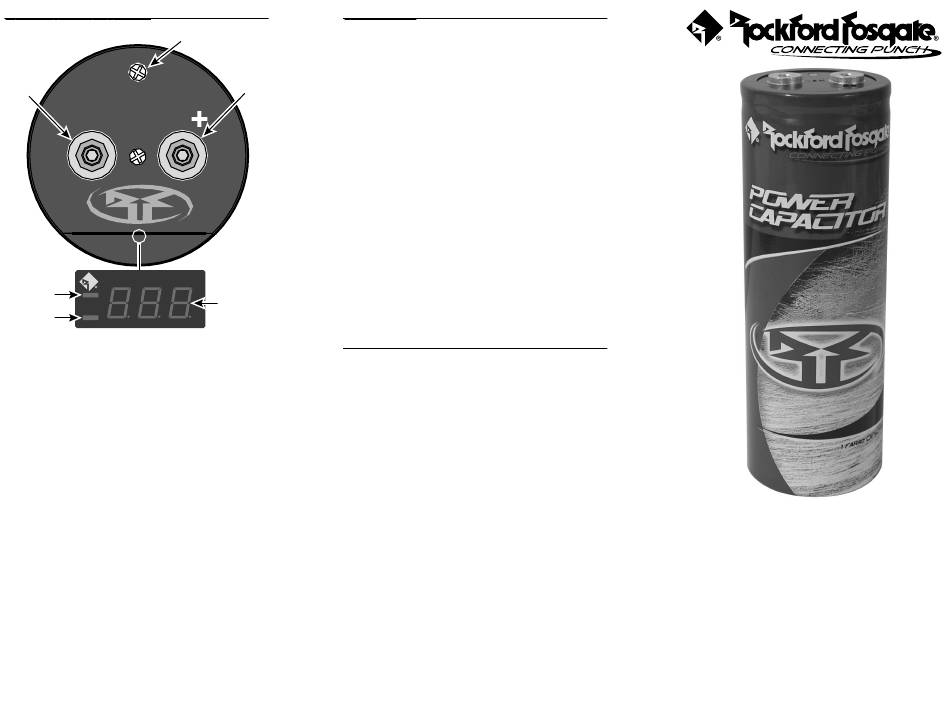

D S C F
IGITAL TATUS AP EATURES
1
REM
6
DIGITAL STATUS
5
ON
4
REV.
1 Remote Turn-On – Attach amp turn-on wire here to
turn capacitor electronics on and off. (The cap is
always charged)
2. Positive Terminal – Connect to Positive (+) side of
vehicle's battery.
3. Voltage Indicator – With the system turned on, the
display will show the DC volts at the capacitor.
4. Reverse Voltage (REV.) Indicator – If it is red,
immediately disconnect the power and check that
positive and negative leads are not reversed. A
buzzer will also sound if this occurs.
5. Power Indicator (ON) – When the LED is green, the
unit is on and functioning properly.
6. Negative Terminal – Connect to chassis ground.
S
PECIFICATIONS
Rating:
2
VDC:
Tolerance:
Dimensions: 1 farad :
ESR:
Terminals:
3 Tools:
W
ARRANTY
Capacitors are nearly indestructible and will provide
years of service if installed and used in accordance
with the instructions in this manual. If this product
should prove to be defective within a period of
ninety (90) days from the date of purchased, contact
your dealer or Rockford Corporation Customer
Service Department at 1-800-669-9899 for
replacement instructions.
In the event the vent is blown or leaking as a result
of switched polarity, the capacitor is not covered by
warranty.
Stripped screws or terminals are not covered by
warranty. Replacements may be obtained at a
resonable cost by contacting Rockford Corporation
Customer Service Department at 1-800-669-9899
Europe, Fax (49) 4207-8101250
12/01
1 farad
(CPC10, CPCM10, CPCD10, CPCD10B)
.5 farad
(CPC05, CPCM05, CPCD05, CPCD05B)
20V surge
-10% + 50%
3" x 8.625"
(76.2mm x 219mm)
.5 farad : 3" x 6.5"
(76.2mm x 165.1mm)
Meter Status Caps add 3/4" (19mm)
to height
Digital Status Caps add 1-1/16" (27mm)
to height
<0.00198Ω @ 120Hz 25°C
1/4" 28 thread
3/16" Allen wrench
I
NFORMATION
Connecting Punch
Rockford Corporation
546 South Rockford Drive
Tempe, AZ 85281 USA
USA, (480) 967-3565
Japan, Fax (81) 559-79-1265
Printed in U.S.A. RFMANTF04

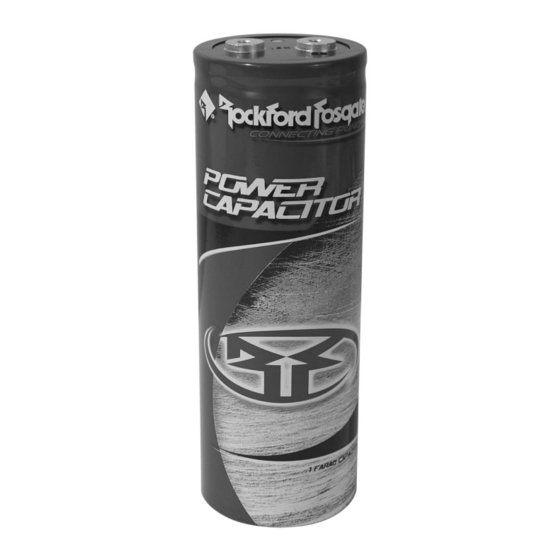

Reinforcement Capacitor
CPC05
CPC10
Installation &
CPCM05
CPCM10
Application
CPCD05
Manual
CPCD10
CPCD05B
CPCD10B
