© Wikora GmbH

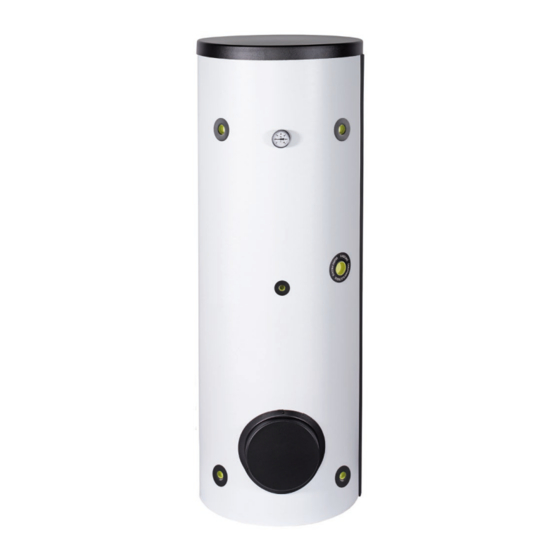

DHW buffer tank
without heat exchanger
WPS 155 / 205 / 306 / 406 / 506
Installation
and
undertaken by a specialist.
General terms and conditions of warranty state that
all installations must be carried out by a suitably
trained and qualified plumber who observes the
local norms and regulations.
The installation and maintenance record must
be entirely completed and the user has to be
instructed accordingly.
Efficient operation can only be guaranteed if the
instructions of this manual are followed.
Warranty does not cover any damage caused due
to non-observance of this manual and the technical
rules in force.
The system is to be checked annually by a
specialized company. In addition, occurring defects
must be repaired immediately.
This document should be handed over to the
client on completion of the installation.
.
Page 1
WIKORA GmbH
Friedrichstr. 9
89568 Hermaringen
Phone: (07322) 9605-0
Fax: (07322) 9605-30
email: contact@wikora.de
commissioning
must
As of February 1, 2019
Errors excepted.
be
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WIKORA WPS 155
Summary of Contents for WIKORA WPS 155
- Page 1 Fax: (07322) 9605-30 email: contact@wikora.de Installation manual DHW buffer tank Operating instructions without heat exchanger WPS 155 / 205 / 306 / 406 / 506 Installation commissioning must undertaken by a specialist. General terms and conditions of warranty state that...
- Page 2 1 General Depending on the type and design, WIKORA tanks are suitable for heating and / or storing DHW and / or heating water. The heating is achieved indirectly via heat generators, if applicable, from different heat sources. The maximum working pressure and working temperature can be found in the technical data.
- Page 3 3 Dimensions and connections Illustration 1 Dimensions: ∅ d ∅ D Type [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] WPS 155 1150 WPS 205 1215 1172 WPS 306 1422 1770 1770 WPS 406 1420 1760 1760 WPS 506 1690...
- Page 4 4 Technical data Description WPS 155 WPS 205 WPS 306 WPS 406 WPS 506 WPS 506/650 Storage volume (real) acc. to DIN EN [Liter] 12897 Max. working temperature [°C] Max. working pressure [bar] 80- Neopor / 80- Neopor / 100 – Neopor/ 120 –...
- Page 5 Content of DHW space Min. valve size Max. heating performance up to 200 l NW 15 (1/2“) 75 kW above 200 to 1000 l NW 20 (3/4“) 150 kW © Wikora GmbH Page 5 As of February 1, 2019 Errors excepted.
- Page 6 It should be examined for the first time after 2 years and afterwards annually in order to check its transmission. The diameter should be at least 1/3 of the original diameter, the surface should be homogenous and without any limescale crust. If necessary, it should be replaced by an original Wikora anode to protect the tank against corrosion.
- Page 7 Under condition that the limits of the valid DHW regulations have been respected, the anode has been examined for the first time after 2 years and afterwards annually and that the anode has been replaced by an original Wikora anode (individual receipts needed) by a specialized company.
- Page 8 In the case of reclamation, the receipts for maintenance must be provided as proof. Please complete the data sheet, including the reason for reclamation, and submit to Wikora. Submitting the maintenance record does not ensure any promise of guarantee or claim.
