USER INSTRUCTION MANUAL
REV. 000

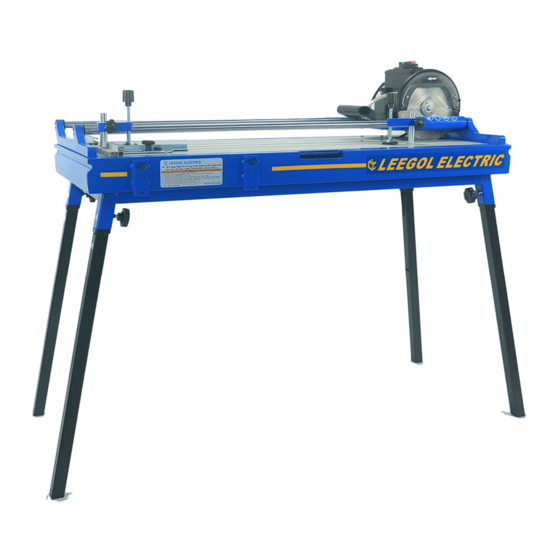

8" DUAL ROUND-RAIL BRIDGE
WET CUTTING TILE SAW WITH STAND
MODEL#: ZE-LG-860A
Save This Manual
Keep this manual for the sagety warnings and precautions assembly,
operating, inspection maintenance and cleaning procedures. Write the product's
serial nmber in the back of the manual near the assembly diagram
(or Month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference)
WARNING
Read this material before using this product. Failure to do so can result
in serious injury.
in serious injury.
SAVE THIS MANUAL
Advertisement
Table of Contents
Related Manuals for LEEGOL ELECTRIC ZE-LG-860A
Summary of Contents for LEEGOL ELECTRIC ZE-LG-860A
- Page 1 USER INSTRUCTION MANUAL REV. 000 8" DUAL ROUND-RAIL BRIDGE WET CUTTING TILE SAW WITH STAND MODEL#: ZE-LG-860A Save This Manual Keep this manual for the sagety warnings and precautions assembly, operating, inspection maintenance and cleaning procedures. Write the product's serial nmber in the back of the manual near the assembly diagram (or Month and year of purchase if product has no number).
-
Page 2: General Safety Rules
GENERAL SAFETY RULES READ THIS OWNER'S MANUAL COMPLETELTY AND MAKE SURE YOU UNDERSTAND ALL OF IT'S SAFETY GUIDELINES. 1. READ and become familiar with this owner's manual. Learn the limitations of the bridges saw and become aware of its possible hazards. 2. -
Page 3: Specific Safety Rules
18. NEVER STAND ON THE SAW. Serious injury could occur if the saw is tipped or if the cutting blade is unintentionally contacted. 19. CHECK DAMAGED PARTS. Before further use of the saw, the safety guard or any other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended funtion. - Page 4 in the Sketch A of Figure 1. A temporary adapter, which looks kike the adapter illustrated in Sketch B and C, may be used to connect to this plug to 2-pole receptacle as shown is Sketch B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly ground outlet can be installed by a qualified electrician.
- Page 5 C EXTENSION CORDS 1. Use only extension cords that are internded for outdoor use. These extension cores are indentified by a making " Acceptable for use with outdoor applicances, store indoors while not in use". Use only recommended extension cords. Do not use damaged extension cords. Examine extension cord before using and replace if damaged.
-
Page 6: Functional Description And Operation
13. Never allow the blade to run dry. Failure to keep the water tray at the recommended level will in possible over-hearing of the diamond blade. SPECIAL SAFETY INSTRUCTIONS BEFORE USING BRIDGE SAW Checking the following areas: 1. Does the voltage motor correspond to the main voltage? 2. - Page 7 ASSEMBLY Read the manual carefully before assembly. 1. Clean the working area. 2. Remove saw from carton, you will find it assembled. 3. Lay the saw on its side on the ground (Fig 4) 4. Pull our the stand legs (Fig5-1). Remarks: Please put the Stand Legs in the Right position, (1-1 2-2), (Fig5-2) 5.
- Page 8 Figure 6-1 Monting the Extension Table 1. Put the Extension Table on the hold (Fig. 7) 2. Pull down the Side Bar, (Fig. 8) 3. Turn the Bevel Screws to adjust the Extension Table as same level as Main Table. (Fig. 9) Fig 7 Fig 8 Fig 9...
- Page 9 FILLING THE WATER AND DRAINING 1. Fill the tray with water. Do not add chemicals or detergents to the water. 2. Remove the plug from the bottom of the tray, the water will flow out or you can remove the tray and pour the water out.
- Page 10 Figure 13 Figure 14 iece, CHANGE THE BLADE WARING! Disconnect the power supply before making adjustments, maintenance, cleaning or replacing the blade! 1. CHOICE OF THE SAW BLADE. Only use 8 inch Continuous Rim or Turbo Blades with a 5/8 arbor. 2.
-
Page 11: Specifications
PUMP REPLACING INSTRUCITON 1. Take the pump out of the Water Tray. 2. Open the Switch Box, and undo the Connecting Terminal, take the pump out of the Switch Box; 3. Then replace the old pump with a new pump. 4. -
Page 12: Troubleshooting
TROUBLESHOOTING Follow all safety prcautions whenever diagnosing or serving the Bridge Saw! Disconnect power supply before service Problem Possible Cause Likely Solutions *No power at outlet 1. Check power outlet The saw not start 2. Check the cord is plugged in. *Power cord not connected *Switch damaged 3.
