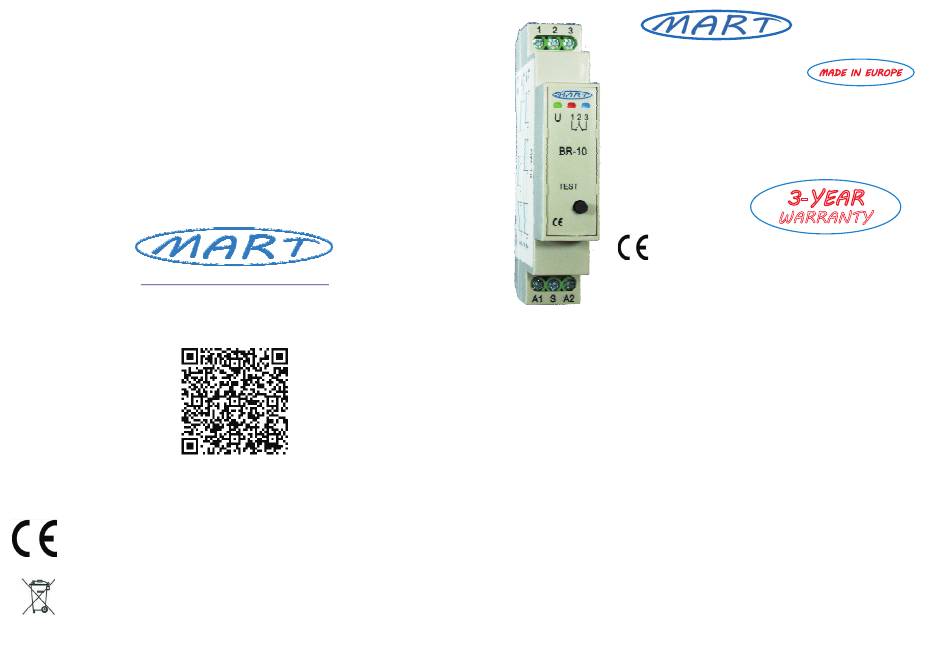

Mart BR-10 User Manual

V. Repair and maintenance
All repairs of the BISTABLE RELAY BR -10
any maintenance.
The manufacturer guarantees the correct operation of the
36 months from the date of sale. The warranty is extended by the time of repair. Warranty repairs are
performed by the manufacturer free of charge after the AUTOMAT is delivered to the manufacturer. Improper
use of the device or independent modifications to it will void the warranty.
www.mart-electronics.eu
The BISTABLE RELAY BR
- Directive LVD 2014/35/EU - Low Voltage Directive of 26 February 2014
- Directive EMC 2014/30/EU - Eletromagnetic Compatibility Directive of 26 February 2014
In order to protect the environment, do not throw away used electrical appliances
and electronics together with municipal waste. Used equipment should be delivered to
collection points for recycling free of charge. Any information on this can be obtained
at sellers, distributors, manufacturer or on the Internet. The product's packaging is made of
ecological materials. The PVC packaging tape will be used while stocks last.
are performed by the manufacturer. The device does not require
VI. Warranty Card
BISTABLE RELAY BR -10 . The warranty period is
Made in Europe
-10
meets the requirements of the European Union Directives
BISTABLE RELAY
The BISTABLE RELAY BR -10 is designed to turn the receiver on or off with an impulse button e g a
- ).
single pole bell switch Each subsequent pressing of the impulse button causes the change of the status of
the executive relay If the receiver was turned on pressing the button momentarily turns the receiver off and .
vice versa .
The BISTABLE RELAY BR -10 allows you to turn the receiver on and off with many parallel connected
impulse buttons which means that the receiver can be turned on or off from anywhere ,
-10
The BISTABLE RELAY BR can work with an unlimited number of impulse buttons without backlight
connected in parallel and with a limited number of impulse illuminated buttons
.
II Properties of the BR
>> short response time to pressing <50ms
>> short standby time for the next press <200 ms
>> high switching power - 16A (4000 W), 250VAC
>> high inrush current - resistance to 100 A surge current
>> freedom of connections:
> executive relay contacts (one normally open contact - NO, one normally closed contact - NC) galvanically
,
separated which allows connections in various configurations
>> traffic light (LED):
> Green LED - indication of 230V AC supply voltage on LN terminals
> LED red - signalling of short circuit contacts 1-2
> Blue LED - signalling of short-circuited contacts 2-3
>> mounting on 35 mm DIN rail.
The BISTABLE RELAY BR -10 uses a specialized OMRON G RL
types of lighting lamps The special design of the relay enables effective switching of lamps with an inrush .
100 .
current up to A
MADE IN EUROPE
BR-10
3 YEAR
-
WARRANTY
User manual
I Purpose .
,
.
(
.
-10
BISTABLE RELAY
2 -1- - E HR relay designed to switch various ,
( . .
)
