___________________________________________________________________________________

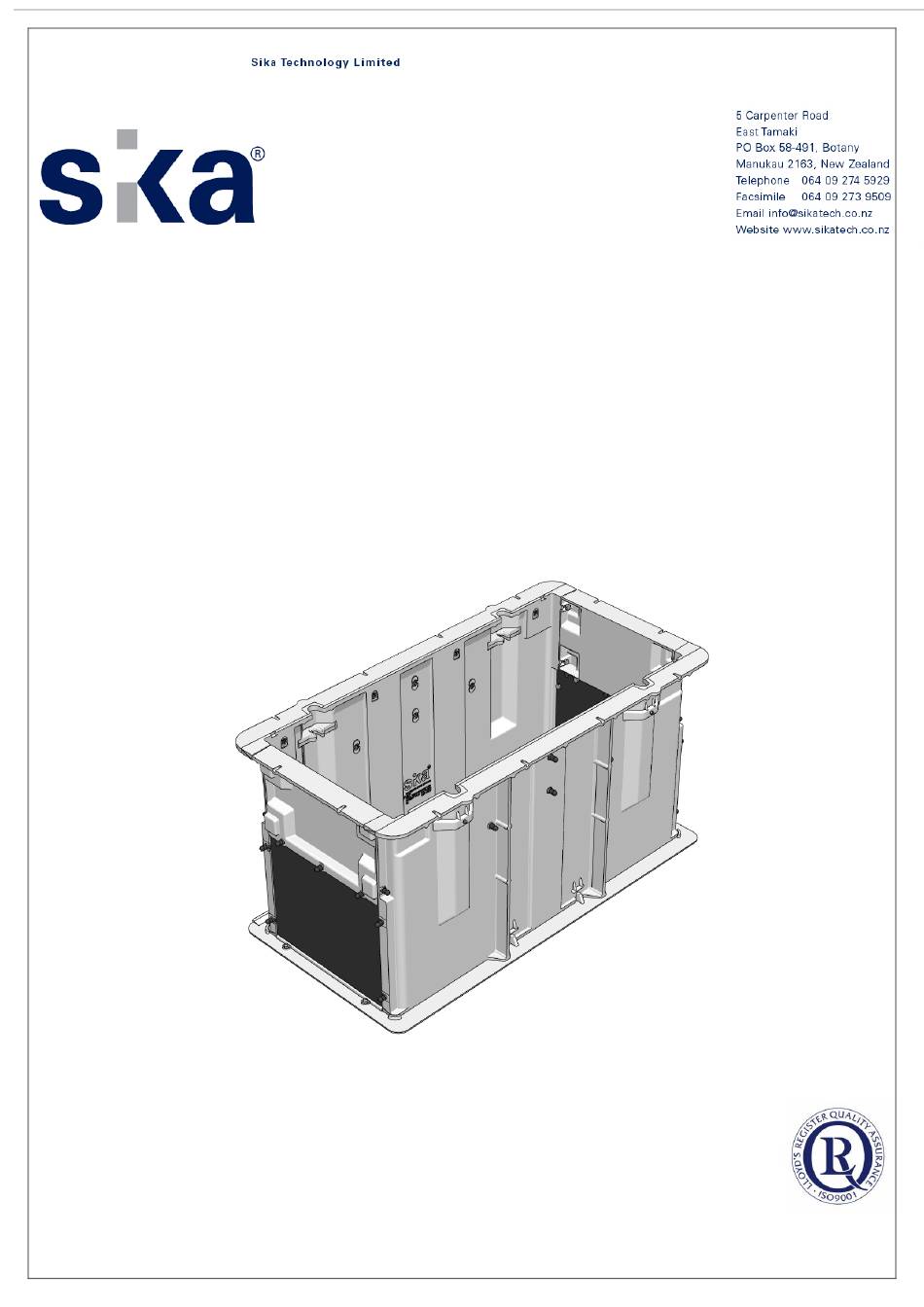

Modular Aluminium Jointing Chamber 1200 x 600 x 700 / 900H
___________________________________________________________________________________
Sika 'Chambers' are used for both Pathway & Roadway Installations
Sika Technology Limited: Modular Assembly 1200x600x700
April 2014
ASSEMBLY INSTRUCTIONS
Chamber Rating: CLASS D - 210kN - AS3996:2006
Chamber 1200 x 600 x 700H
Intellectual Property Rights May Apply
www.sikatech.co.nz
Page 1 of 6
ST-PD015-01
Advertisement
Table of Contents
Related Manuals for SIKA Chamber
Summary of Contents for SIKA Chamber
- Page 1 ___________________________________________________________________________________ Modular Aluminium Jointing Chamber 1200 x 600 x 700 / 900H ASSEMBLY INSTRUCTIONS ___________________________________________________________________________________ Chamber Rating: CLASS D - 210kN - AS3996:2006 Sika ‘Chambers’ are used for both Pathway & Roadway Installations Chamber 1200 x 600 x 700H Sika Technology Limited: Modular Assembly 1200x600x700...
- Page 2 Place the chamber base on a flat area adjoining the pit or on a prepared bed of imported material in the excavated pit. Note the “1200 x 600” script will be face up. Chamber Base Studs “1200 x 600” Identification...
- Page 3 Insert the two chamber sides into the appropriately marked positions on the chamber base. Chamber side supports cast into the chamber base will hold the chamber sides vertical until the 4 – M10 nuts and washers are applied to hold them down.
- Page 4 Apply the two polypropylene duct entry panels to each end recess and secure each one with 7 - M10 x 30 bolts and washers supplied. Duct Entry Panel Fig 5a Fig 5b Chamber 1200 x 600 x 700H Sika Technology Limited: Modular Assembly 1200x600x700 Intellectual Property Rights May Apply Page 4 of 6 April 2014 www.sikatech.co.nz...
- Page 5 Chamber Extension 200mm Assemble chamber extension as per Fig 6a using 8 - M10 x 30 bolts and washers supplied. Place on top of chamber flange. See arrows for right way up. Chamber Extension 1200 x 600 x 200H Arrows...
- Page 6 Cable Support & Protection Options Cable Protection Plate Cable Management Bracket Cable Stirrup Bracket Option 145 mm Long Option 250 mm Long ‘J’ Brackets Sika Technology Limited: Modular Assembly 1200x600x700 Intellectual Property Rights May Apply Page 6 of 6 April 2014 www.sikatech.co.nz ST-PD015-01...
