SIKA Chamber Assembly Instructions Manual

Modular aluminium jointing chamber
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
___________________________________________________________________________________
Modular Aluminium Jointing Chamber 2100 x 600 x 700 / 900H
___________________________________________________________________________________
Sika 'Chambers' are used for both Pathway & Roadway Installations
Sika Technology Limited: Modular Assembly 2100x600x700
April 2014
ASSEMBLY INSTRUCTIONS
Chamber Rating: CLASS D - 210kN - AS3996:2006
Chamber 2100 x 600 x 700H
Intellectual Property Rights May Apply
www.sikatech.co.nz
Page 1 of 6
ST-PD016-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chamber and is the answer not in the manual?

Questions and answers

Related Manuals for SIKA Chamber

Summary of Contents for SIKA Chamber

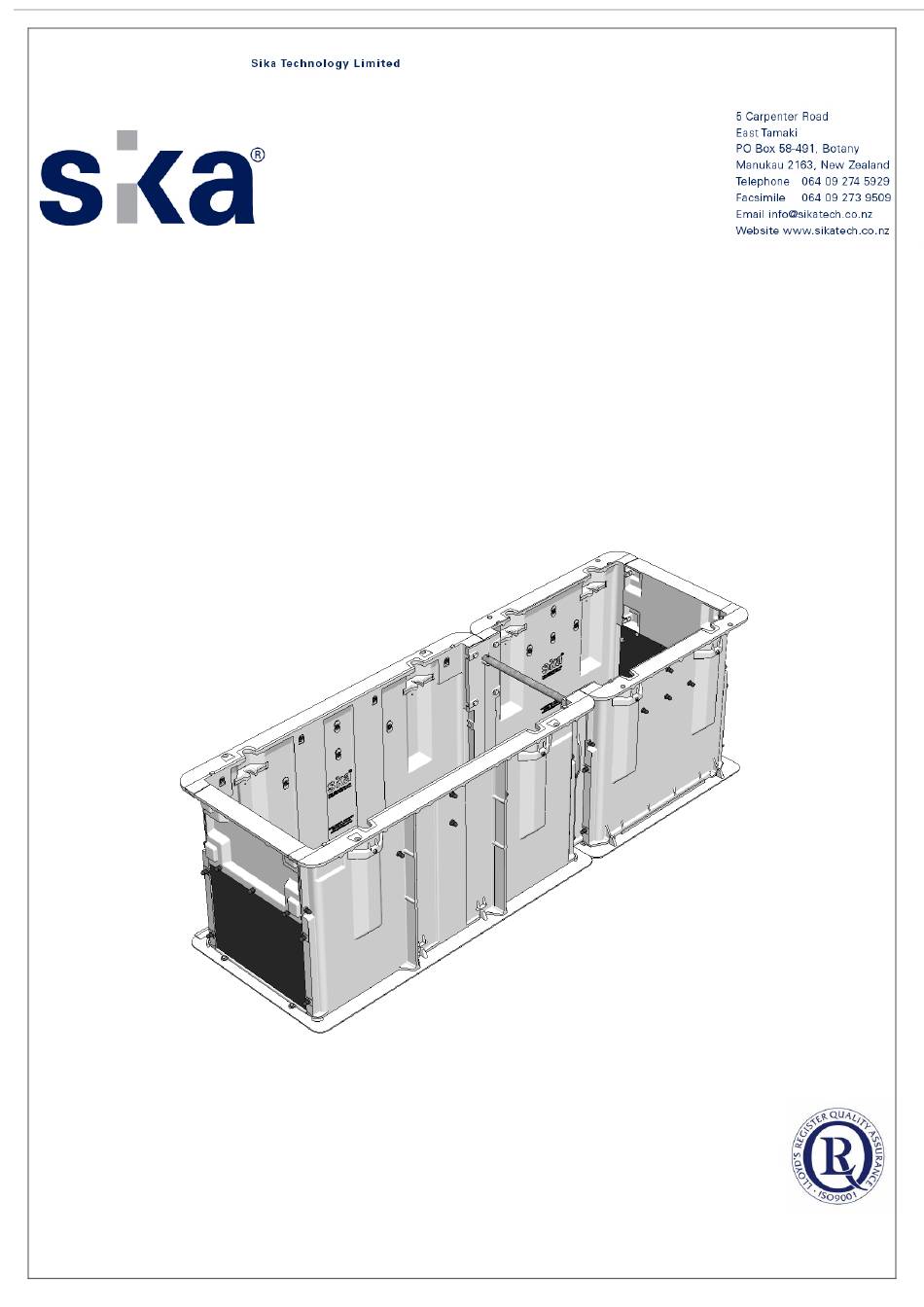

  • Page 1 ___________________________________________________________________________________ Modular Aluminium Jointing Chamber 2100 x 600 x 700 / 900H ASSEMBLY INSTRUCTIONS ___________________________________________________________________________________ Chamber Rating: CLASS D - 210kN - AS3996:2006 Sika ‘Chambers’ are used for both Pathway & Roadway Installations Chamber 2100 x 600 x 700H Sika Technology Limited: Modular Assembly 2100x600x700...
  • Page 2 Place the 1200mm and 700mm chamber bases end to end on a flat area adjoining the pit or on a prepared bed of imported material in the excavated pit. Note the “1200 x 600” script and Sika logos will be face up.
  • Page 3 Insert the four chamber sides into the appropriately marked positions on the chamber base. Chamber side supports cast into the chamber base will hold the chamber sides vertical until the 8 – M10 nuts and washers are applied to hold them down.
  • Page 4 Add the two chamber ends 600 and secure them with the 8 – M10 x 30 bolts and washers. (Now tighten all the aforementioned fixings) Chamber End 600 Fig 4 Duct Entry Panel Apply the two polypropylene duct entry panels to each end recess and secure each one with 7 - M10 x 30 bolts and washers supplied.
  • Page 5 Chamber Extension 200mm Assemble chamber extension as per Fig 6a using the extension side joiners 200 and 16 – M10 x 30 bolts and washers supplied. Place on top of chamber flange. See arrows for right way up. Chamber Extension...
  • Page 6 Cable Support & Protection Options Cable Management Bracket Cable Stirrup Bracket Option 145 mm Long Option 250 mm Long ‘J’ Brackets Sika Technology Limited: Modular Assembly 2100x600x700 Intellectual Property Rights May Apply Page 6 of 6 April 2014 www.sikatech.co.nz ST-PD016-01...
