RBM RinoxPlus M Technical Sheet

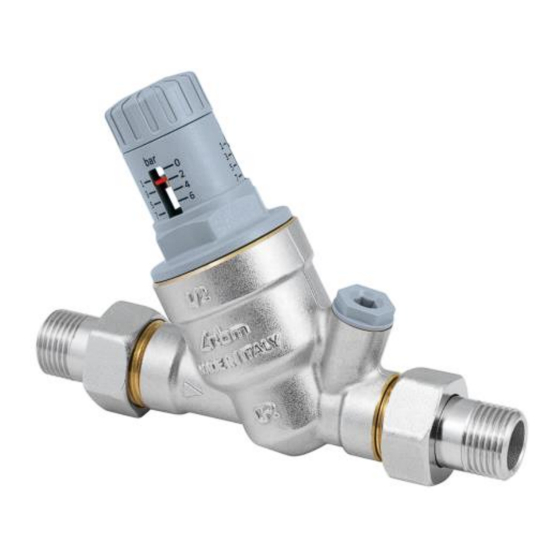

Membrane pressure reducer with inspectionable internal cartridge and filter
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
RinoxPlus M
Code
Size
G 1/2"
2848.04.00
G 3/4"
2848.05.00
G 1"
2848.06.00
G 1"1/4
2848.07.00
G 1"1/2
2848.08.00
G 2"
2848.09.00
PRESSURE REDUCER WITH INSPECTIONABLE CARTRIDGE AND CALIBRATION KNOB
Code
Size
G 1/2"
2909.04.00
G 3/4"
2909.05.00
G 1"
2909.06.00
G 1"1/4
2909.07.00
G 1"1/2
2909.08.00
G 2"
2909.09.00
G 1/2"
On request
G 3/4"
On request
G 1"
On request
G 1"1/4
On request
G 1"1/2
On request
On request
G 2"
8167.003
8201.003
8202.003
8203.003
7367.005
7387.005
7401.005
7403.005
1213.005
* Compliant with EN 1567 and certified Kiwa.
** ACS conformity "Attestation de Conformité Sanitaire" (France) according to DGS/SD7A n°571 of 25/11/2002
*** Korea water and wastewater works association (KWWA)
RinoxPlus M and RinoxPlusSmart M
MEMBRANE PRESSURE REDUCER
WITH INSPECTIONABLE INTERNAL CARTRIDGE AND FILTER
PRODUCTION RANGE
PRESSURE REDUCER WITH INSPECTIONABLE CARTRIDGE
Connection
FF UNI-EN-ISO 228
Connection
MM UNI-EN-ISO 228
union
FF UNI-EN-ISO 228
SPARE PARTS / ACCESSORIES
Code
Suitable for measurement
1/2" – 3/4"
1"
1"1/4
1"1/2 – 2"
1/2" – 3/4"
1"
1"1/4
1"1/2 – 2"
-
RinoxPlusSmart M
P
upstream
max
16 bar
[1600 kPa]
(cold water 40°C)
25 bar
[2500 kPa]
(hot water 80°C)
P
upstream
max
16 bar
[1600 kPa]
(cold water 40°C)
25 bar
[2500 kPa]
(hot water 80°C)
Degree of filtration
800 micron
800 micron
-
RinoxPlus M
P
adjustable
downstream
0,8÷7 bar
[80÷700 kPa]
RinoxPlusSmart M
P
adjustable
downstream
0,8÷7 bar
[80÷700 kPa]
Description
Removable internal cartridge
complete with filter
Removable filter
Radial pressure gauge ø 50.
Full scale: 0 ÷ 16 bar.
Connection: 1/4"
CT2848.0_03
EN
March 2017
*
**
***
P
pre-calibration
3 bar
300 [kPa]
P
pre-calibration
3 bar
300 [kPa]
